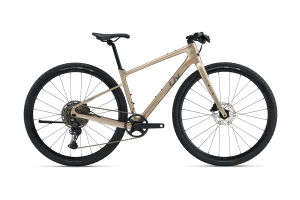

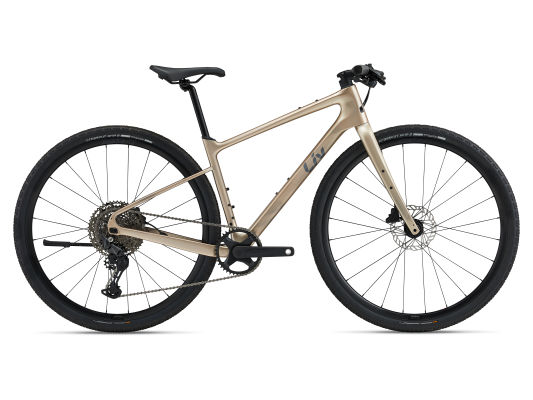

Thrive Advanced GX

2024

$1,900

Take your commutes and fitness rides to the next level with the Thrive Advanced GX, built for exploring both gravel and paved paths. With a lightweight frame, confidence-inspiring tires, and frame mounts to carry your essentials, this bike is ready to accompany you on any adventure.

Key Performance Factors

Light and Agile

The Thrive Advanced GX features a lightweight and nimble Advanced-grade composite frame and fork, balanced geometry, and flat handlebar for ultimate efficiency and control.

Adventure-ready

Ride comfortably and confidently on bumpy roads and gravel with pressure-relieving grips and saddle, as well as a shock-absorbing D-Fuse seatpost. With an array of frame mounts, you can easily add extra water bottle cages or a rear rack to accommodate all your gear for longer rides and adventures.

Functional Versatility

The carbon flip chip – dropout allows you to easily adjust the geometry and tire clearance, giving you more versatility and customization options to suit your riding style and terrain. Switch to the short position for quicker handling and a maximum tire clearance of 40c, or choose the long position for stability at speed and increased tire clearance up to 45c.

Techs & Features

Advanced Composite Technology
D-Fuse Seatpost
OverDrive
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      148 cm4’10”  to 163 cm5’4”
  • S
      158 cm5’2”  to 169 cm5’7”
  • M
      164 cm5’5”  to 175 cm5’9”
  • L
      170 cm5’7”  to 183 cm6’0”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSML
 SHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONG
A Seat Tube Length (mm) (inch)35013.840015.745017.750019.7
B Seat Tube Angle (degrees)74.5° | 74.4°74.0° | 73.9°73.5° | 73.4°73.0° | 72.9°
C Top Tube Length (mm) (inch)52520.7 | 52520.754021.3 | 54021.356022 | 5602258022.8 | 58022.8
D Head Tube Length (mm) (inch)1104.31355.31656.51957.7
E Head Tube Angle (degrees)70.5° | 70.5°71.0° | 71.0°71.5° | 71.5°71.5° | 71.5°
F Fork Rake (mm) (inch)502502502502
G Trail (mm) (inch)732.9 | 75.3369.52.7 | 71.92.866.22.6 | 68.62.766.22.6 | 68.62.7
H Wheelbase (mm) (inch)101439.9 | 102340.3102040.2 | 103040.6103140.6 | 104141104641.2 | 105641.6
I Chain Stay Length (mm) (inch)42516.7 | 43517.142516.7 | 43517.142516.7 | 43517.142516.7 | 43517.1
J Bottom Bracket Drop (mm) (inch)702.8 | 712.8702.8 | 712.8702.8 | 712.8702.8 | 712.8
K Stack (mm) (inch)53421 | 53521.156022 | 5602259023.2 | 59023.261824.3 | 61824.3
L Reach (mm) (inch)37614.8 | 37614.838015 | 37914.938515.2 | 38515.239115.4 | 39115.4
M Stand Over Height (mm) (inch)68026.8 | 68026.871028 | 7102874529.3 | 74529.377030.3 | 77030.3
N Handlebar Width (mm) (inch)60023.660023.664025.264025.2
O Stem Length (mm) (inch)803.1803.1903.51003.9
P Crank Length (mm) (inch)1656.51706.71706.7172.56.8
Q Wheel Size 700C700C700C700C

See how other people Liv Beyond

Specs
  • Sizes
    XS, S, M, L
  • Colors
    Sandshell
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, flip chip – dropout, disc
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
  • Shock
    N/A
  • Handlebar
    Giant Sport, flat S: 600mm, S: 600mm, M: 640mm, L: 640mm
  • Grips
    Liv ErgoContact
  • Stem
    Giant Contact XS: 80mm, S: 80mm, M: 90mm, L: 100mm
  • Seatpost
    Giant D-Fuse, alloy, XS: 300mm, S: 300mm, M: 300mm, L: 350mm
  • Saddle
    Liv ErgoMax
  • Pedals
    platform pedal
  • Shifters
    Shimano CUES SLU600011R, 1x11
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano RD-U6000-11, Shadow RD+
  • Brakes
    Tektro HD-R280, hydraulic [F]160mm, [R]160mm
  • Brake Levers
    Tektro hydraulic
  • Cassette
    Shimano CS-LG40011, 11x50
  • Chain
    KMC Xglinde w/ Missing Link
  • Crankset
    FSA Omega AGX+, 42t XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
  • Bottom Bracket
    BB-AL86
  • Rims
    Giant P-X2 Disc wheelset, alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    stainless
  • Tires
    Giant CrossCut GX, tubeless, 700x45c
  • Extras
    47mm max tire size in long flip chip position, 42mm max tire size in short flip chip position, tubeless prepared, and rack, kickstand, top tube and fender frame mounts
  • Weight
    9.92kg (21lbs 14oz) - Size (S)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
