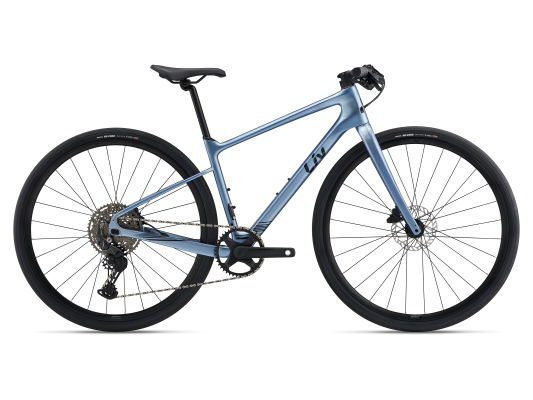

Thrive Advanced 2

$1,800

Techs & Features

Advanced Composite Technology
D-Fuse Seatpost
OverDrive
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      148 cm4’10”  to 163 cm5’4”
  • S
      158 cm5’2”  to 169 cm5’7”
  • M
      164 cm5’5”  to 175 cm5’9”
  • L
      170 cm5’7”  to 183 cm6’0”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSML
  SHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONG
ASeat Tube Length (mm) (inch)35013.840015.745017.750019.7
BSeat Tube Angle (degrees)74.5° | 74.4°74.0° | 73.9°73.5° | 73.4°73.0° | 72.9°
CTop Tube Length (mm) (inch)52520.7 | 52520.754021.3 | 54021.356022 | 5602258022.8 | 58022.8
DHead Tube Length (mm) (inch)1104.31355.31656.51957.7
EHead Tube Angle (degrees)70.5° | 70.5°71.0° | 71.0°71.5° | 71.5°71.5° | 71.5°
FFork Rake (mm) (inch)502502502502
GTrail (mm) (inch)732.9 | 75.3369.52.7 | 71.92.866.22.6 | 68.62.766.22.6 | 68.62.7
HWheelbase (mm) (inch)101439.9 | 102340.3102040.2 | 103040.6103140.6 | 104141104641.2 | 105641.6
IChain Stay Length (mm) (inch)42516.7 | 43517.142516.7 | 43517.142516.7 | 43517.142516.7 | 43517.1
JBottom Bracket Drop (mm) (inch)702.8 | 712.8702.8 | 712.8702.8 | 712.8702.8 | 712.8
KStack (mm) (inch)53421 | 53521.156022 | 5602259023.2 | 59023.261824.3 | 61824.3
LReach (mm) (inch)37614.8 | 37614.838015 | 37914.938515.2 | 38515.239115.4 | 39115.4
MStand Over Height (mm) (inch)68026.8 | 68026.871028 | 7102874529.3 | 74529.377030.3 | 77030.3
NHandlebar Width (mm) (inch)60023.660023.664025.264025.2
OStem Length (mm) (inch)803.1803.1903.51003.9
PCrank Length (mm) (inch)1656.51706.71706.7172.56.8
QWheel Size 700C700C700C700C

See how other people Liv Beyond

Specs
  • Sizes
    XS, S, M, L
  • Colors
    Frost Silver
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, flip chip – dropout, disc
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
  • Shock
    N/A
  • Handlebar
    Giant Sport, flat, 31.8mm, 9-degree backsweep XS: 600mm, S: 600mm, M: 640mm, L: 640mm
  • Grips
    Liv ErgoContact
  • Stem
    Giant Contact, 8-degree XS: 80mm, S: 80mm, M: 90mm, L: 100mm
  • Seatpost
    Giant D-Fuse, alloy, XS: 300mm, S: 300mm, M: 300mm, L: 350mm
  • Saddle
    Liv ErgoMax
  • Shifters
    Shimano Cues U6000, 1x10
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Cues U6000
  • Brakes
    Tektro HD-R280, hydraulic [F]160mm, [R]160mm
  • Brake Levers
    Tektro hydraulic
  • Cassette
    Shimano CSLG40010, 11x48
  • Chain
    KMC X11 with Missing Link
  • Crankset
    FSA Omega AGX+, 42t XS: 165mm, S: 165mm, M: 170mm, L: 172.5mm
  • Bottom Bracket
    FSA BB-AL86
  • Rims
    Giant S-X2 wheelset
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    stainless
  • Tires
    Maxxis Re-Fuse, wirebead, tubeless, 700x40c
  • Extras
    Chain Fit, 47mm max tire size in "long" flip chip position, 42mm max tire size in "short" flip chip position, tubeless prepared
  • Weight
    9.68kg (21lb 05oz) - Size (S)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
