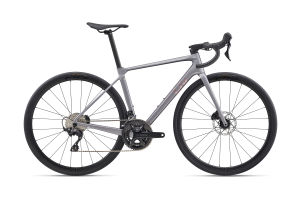

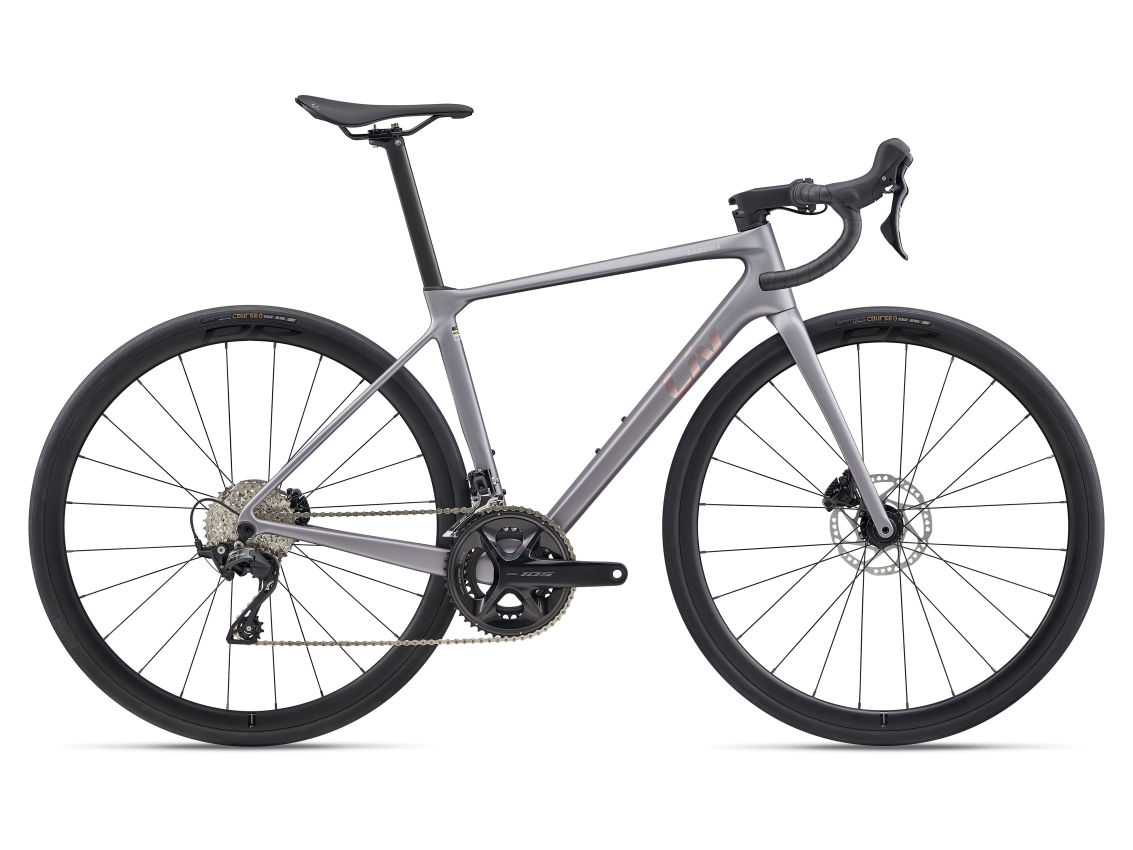

Langma Advanced 2 (Pro Compact)

$3,300

Similar Products

Best For: Race

Langma Advanced 0

$4,500

The official bike of road riding season, the Langma Advanced was designed to climb mountains and leaderboards. The re-engineered frameset and components are seamlessly integrated for effortless ascents and fearless descents. Streamlined aerodynamics round out this all-rounder, inspiring you to push limits all day long.

Key Performance Factors

QOM-LEVEL EFFICIENCY

The re-engineered frameset and integrated components yield efficient power transfer for quick bursts of speed and sustained climbing prowess.

LIMIT-PUSHING CONTROL

Up to 33mm tire clearance means you’re ready for any road, from the freshly-poured to the weather-beaten, without compromising handling. The flared handlebar injects control and confidence into those explosive sprints and bomber descents.

GAP-WIDENING AERO

With truncated ellipse tube shapes and a new internal cable routing design, you’ll reduce drag, pick up speed, and watch the scenery fly by.

Techs & Features

Advanced Composite Technology
Tubeless System
Compact Road Design
PowerCore

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XXS
      145 cm4’9”  to 160 cm5’3”
  • XS
      152 cm5’0”  to 166 cm5’5”
  • S
      158 cm5’2”  to 172 cm5’8”
  • M
      164 cm5’5”  to 178 cm5’10”
  • L
      170 cm5’7”  to 184 cm6’0”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XXSXSSML
A Seat Tube Length (mm) (inch)39015.442016.545017.748018.951020.1
B Seat Tube Angle (degrees)75.0°75.0°74.5°74.0°73.5°
C Top Tube Length (mm) (inch)49819.65082052420.654021.355521.9
D Head Tube Length (mm) (inch)1054.11204.71355.31556.11756.9
E Head Tube Angle (degrees)70.0°71.0°72.0°72.5°72.5°
F Fork Rake (mm) (inch)491.9491.9491.9491.9491.9
G Trail (mm) (inch)742.9682.7612.4582.3582.3
H Wheelbase (mm) (inch)97038.297338.397738.598438.799439.1
I Chain Stay Length (mm) (inch)40515.940515.940515.940515.940515.9
J Bottom Bracket Drop (mm) (inch)722.8722.8702.8702.8702.8
K Stack (mm) (inch)49919.651720.453220.955321.857222.5
L Reach (mm) (inch)36414.337014.637714.83821538615.2
M Stand Over Height (mm) (inch)6852770727.8736297633078330.8
N Handlebar Width (mm) (inch)36014.236014.23801540015.742016.5
O Stem Length (mm) (inch)803.1803.1903.51003.91104.3
P Crank Length (mm) (inch)1606.31656.51656.51706.7172.56.8

See how other people Liv Beyond

Specs
  • Sizes
    XXS, XS, S, M, L
  • Colors
    Native Grey/Chrome
  • Frame
    Advanced-grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Liv Contact, XXS: 360mm, XS: 360mm, S: 380mm, M: 400mm, L: 420mm
  • Grips
    Liv Stratus Elite 2.0
  • Stem
    Giant Contact AeroLight, XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L: 110mm
  • Seatpost
    Giant Variant, composite, -5/+15mm offset
  • Saddle
    Liv Approach
  • Shifters
    Shimano 105
  • Front Derailleur
    Shimano 105
  • Rear Derailleur
    Shimano 105
  • Brakes
    Shimano 105 hydraulic, Shimano SM-RT64 rotors, [F] 160mm, [R] 140mm
  • Brake Levers
    Shimano 105 Di2
  • Cassette
    Shimano 105, 12-speed, 11x34
  • Chain
    KMC X12L-1
  • Crankset
    Shimano 105, 36/52 XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 172.5mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-R1, [F] 25mm, [R] 25mm
  • Hubs
    12mm thru-axle
  • Spokes
    stainless
  • Tires
    Giant Gavia Course 1, tubeless, 700x28c, folding
  • Extras
    tubeless prepared, 33mm max tire size
  • Max Tire Clearance
    33mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
