High-performance grade raw carbon fiber and custom resin is used to produce this high-quality frame in Liv’s own composite factory. Handcrafted monocoque construction makes both the mainframe and rear swingarm extremely lightweight, stiff and compliant.

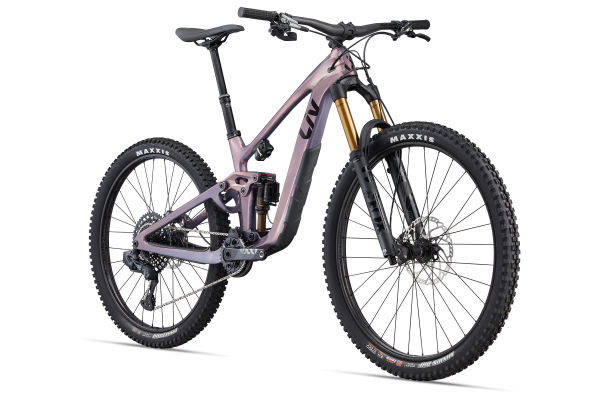

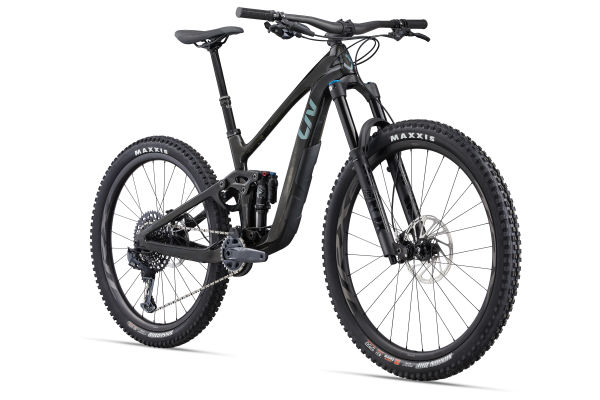

Intrigue LT Advanced Pro
Whether you're looking ahead to park days, backcountry singletrack adventures, or your next enduro race – the all-new Intrigue LT Advanced Pro equips you with the versatility of adjustable frame geometry, the exceptional efficiency of Advanced-Grade Composite and the ultra-smooth performance of Maestro suspension so you can do what you do best – SHRED!
Compare Models |
||
$12,500
|
$6,600
|
|
|
Wheels
|
Zipp 3ZERO MOTO XS and S: [F] 29"", [R] 27.5"" M and L: [F] 29"", [R] 29" | Giant TRX 2 29 WheelSystem, composite, 30mm inner width XS and S: [F] 29"", [R] 27.5"" M and L: [F] 29"", [R] 29" |
|---|---|---|
|
Shifters
|
SRAM AXS Rocker, 1x12 | SRAM GX Eagle, 1x12 |
|
Crankset
|
SRAM XX1 Eagle DUB, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm | SRAM GX, 30t, 55mm chainline XS: 165mm, S:170mm, M:170mm, L:170mm |
|
Fork
|
Fox 36 Factory Live Valve, 160mm, FIT4 damper, Boost, 15x110, Kabolt, tapered, 44mm offset | Fox 36 Performance Elite, 160mm, Grip damper, Boost, 15x110, Kabolt, tapered, 44mm offset |
|
Colors
|
Mirage | Raw Carbon/Chrome |
Highlights
The Intrigue LT Advanced Pro is feature-packed and ready for your next adventure. Discover more about its key features below and take a deeper look at the all new flip chip – Maestro 3.
1
ADVANCED-GRADE COMPOSITE MAINFRAME AND SWINGARM
2
ADVANCED FORGED COMPOSITE TECHNOLOGY
An upper rocker arm created with Advanced Forged Composite Technology for increased stiffness, durability, and lighter weight.
3
OVERDRIVE
Designed to provide precise front-end steering performance, the system’s oversized headset bearings and tapered steerer tube work in conjunction to provide optimal steering stiffness.
4
MX CONFIGURATION
Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear and can accommodate a 27.5-inch wheel in the rear.
5
INTEGRATED DOWN TUBE STORAGE
Open a latch on the down tube to reveal an internal compartment that contains a water-resistant bag where you can store essential items including an inner tube, CO2 cartridge, tire lever, snacks, or a multi-tool.
6
MAESTRO SUSPENSION TECHNOLOGY
Four strategically positioned pivot points and two linkages work together to create a single floating pivot point for the most active, efficient suspension system.
7
ADJUSTABLE GEOMETRY
The flip chip – Maestro 3 allows you to quickly adjust the geometry of the Intrigue LT Advanced Pro to better suit riding conditions and rear-wheel size choice. Using two different flip chips – a combination high/ low and a dedicated mid-position chip – riders can change the head tube angle, seat tube angle and bottom bracket height using eccentric hardware located on the upper rocker arm of the rear suspension.
8
FRAME PROTECTION
Updated chainstay and down tube protection help keep rock strikes and chain slap damage at bay.
9
BOOST HUB SPACING
Boost 15x110 [F], 12X148 [R] hub spacing improves stiffness, trail handling and tire clearance.
10
TUBELESS
Tubeless ready, so you can run lower tire pressure for added traction and control.
11
COMPATIBLE WITH 2.5-INCH TIRES
Clearance to run up to 2.5-inch tires for increased stability.
12
EXTRAS
integrated cable ports, water bottle cage mounts on all frame sizes and UDH and Fox Live Valve compatible.
Techs & Features
Advanced Composite Technology
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
Advanced Forged Composite Technology
A state-of-the-art, high-pressure molding process used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar aluminum components.
Flip Chip - Maestro 3
This all-new technology allows you to quickly adjust the geometry of your bike to better suit riding conditions and rear-wheel size choice. Using two different flip chips – a combination high/ low and a dedicated mid-position chip – riders can change the head tube angle, seat tube angle and bottom bracket height using eccentric hardware located on the upper rocker arm of the rear suspension.
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
