Alight DD Disc 3

2024

$650

The Alight DD Disc is redesigned with a fast and fresh look, and is equipped with touchpoints to maximize comfort, accessory mounts, and dependable components, making this a versatile flat-bar road bike perfect for commuting and keeping an active lifestyle.

Key Performance Factors

Versatility

Equipped with integrated mounts for fenders, a rear rack, and a kickstand, the Alight lets you customize your accessories so you can make room for all your essentials and stay clear of debris.

Comfort

Staying comfortable on your daily rides is a non-negotiable, so the Alight comes with shock-absorbing grips, a compliant D-Fuse seatpost, and a pressure-relieving saddle.

Control

The Alight’s powerful disc brakes work in dry or wet conditions, and with the increased fork clearance, you can install up to a 40c tire, which allows for greater traction.

Techs & Features

ALUXX Aluminum Technology
D-Fuse Seatpost

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      148 cm4’10”  to 163 cm5’4”
  • S
      158 cm5’2”  to 169 cm5’7”
  • M
      164 cm5’5”  to 175 cm5’9”
  • L
      170 cm5’7”  to 183 cm6’0”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSML
A Seat Tube Length (mm) (inch)37014.642016.546018.150019.7
B Seat Tube Angle (degrees)73.5°73.5°73.0°73.0°
C Top Tube Length (mm) (inch)53521.155021.757022.459023.2
D Head Tube Length (mm) (inch)1305.11505.91606.31756.9
E Head Tube Angle (degrees)70.0°70.5°71.0°71.0°
F Fork Rake (mm) (inch)502502502502
G Trail (mm) (inch)78.23.174.82.971.42.871.42.8
H Wheelbase (mm) (inch)104441.1105541.5106541.9108542.7
I Chain Stay Length (mm) (inch)44517.544517.544517.544517.5
J Bottom Bracket Drop (mm) (inch)622.4622.4622.4622.4
K Stack (mm) (inch)55421.857522.658723.160123.7
L Reach (mm) (inch)37114.63801539115.440616
M Stand Over Height (mm) (inch)59123.359023.259123.358723.1
N Handlebar Width (mm) (inch)60023.660023.664025.264025.2
O Stem Length (mm) (inch)803.1803.1903.51003.9
P Crank Length (mm) (inch)1656.51656.51706.71706.7
Q Wheel Size 700C700C700C700C

See how other people Liv Beyond

Specs
  • Sizes
    XS, S, M, L
  • Colors

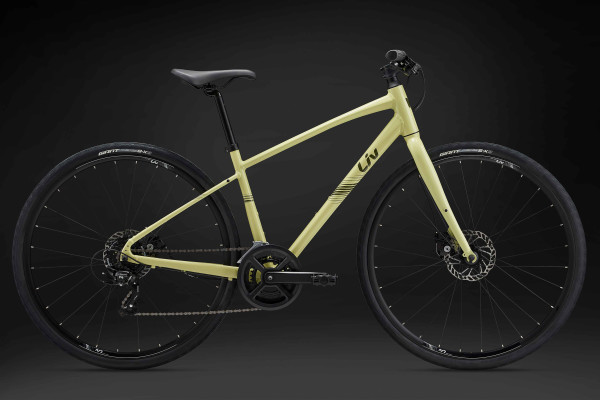

    Good Gray, Muscat Blanc
  • Frame
    ALUXX-grade aluminum, disc
  • Fork
    alloy/steel, disc
  • Shock
    N/A
  • Handlebar
    Giant Sport flat, 25.4mm, 20mm riser XS: 600mm, S: 600mm, M: 640mm, L: 640mm
  • Grips
    Liv ErgoContact
  • Stem
    Giant Sport, 25.4mm XS: 80mm, S: 80mm, M: 90mm, L: 100mm
  • Seatpost
    Giant D-Fuse, alloy XS:300mm, S:300mm, M:300mm, L:350mm
  • Saddle
    Liv ErgoMax
  • Pedals
    platform
  • Shifters
    Shimano Altus, 2x7
  • Front Derailleur
    Shimano Tourney
  • Rear Derailleur
    Shimano Tourney, RD-TY300
  • Brakes
    Tektro TKB-172 mechanical [F]160mm, [R]160mm
  • Brake Levers
    Tektro mechanical
  • Cassette
    Shimano CS-HG200-7, 12x32
  • Chain
    KMC Z7
  • Crankset
    ProWheel TY-CY01, 30/46 XS: 165mm, S: 165mm, M: 170mm, L: 170mm
  • Bottom Bracket
    cartridge
  • Rims
    Giant GX Disc wheelset
  • Hubs
    Giant alloy, QR
  • Spokes
    stainless
  • Tires
    Giant S-X3, 700x38c
  • Extras
    42mm, or 40c max tire size, reflective stickers, rack, kickstand and fender frame mounts
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
