Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
New
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

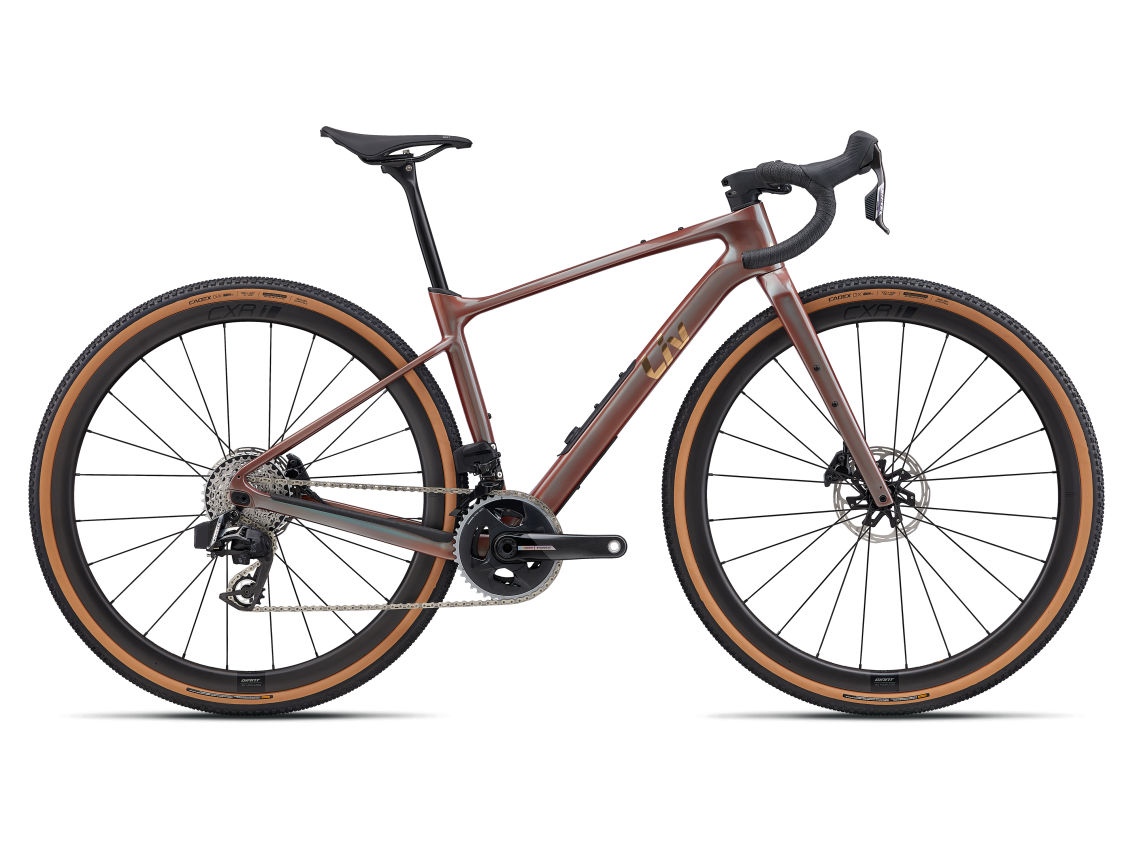

Devote Advanced Pro
The Devote Advanced Pro was born and bred for gravel race glory. With its lightweight yet robust construction and performance-driven design, it’s ready to carry speed across county lines, above tree lines, and over finish lines.
Ключові Фактори Ефективності
Ultralight Agility
An ultralight Advanced-grade composite frame and new Advanced SL-grade composite fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.
Superior Compliance and Control
The Contact SLR XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. The Contact SLR D-Fuse seatpost can be swapped out for a 30.9mm or 27.2mm round seatpost. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.
Unmatched Versatility
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.
Технології
Технологія Advanced Composite
Технологія Advanced SL Composite
Liv’s Professional Grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fiber Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system to absorb shocks and vibrations from various surfaces, ensuring a smoother and more efficient ride.
Безкамерні системи
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
Кермова OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Таблиця розмірів та геометрія
Інформація про розмір має виключно довідковий характер та не є максимально достовірною. Будь ласка, зверніться до Вашого уповноваженого дилера Giant та Liv для визначення правильного розміру.
- XS
- 150 cm4’11”
163 cm5’4”
- S
- 158 cm5’2” 169 cm5’7”
- M
- 164 cm5’5” 175 cm5’9”
- L
- 170 cm5’7” 181 cm5’11”
| XS | S | M | L | |
|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Довжина підсідельної труби (mm) (inch) | 39015,4 | 42016,5 | 46518,3 | 50019,7 |
| B Нахил підсідельної труби (degrees) | 74,5° | 74,4° | 74,5° | 74,4° | 74,5° | 74,4° | 74,5° | 74,4° |
| C Довжина верхньої труби (mm) (inch) | 52520,7 | 52520,7 | 53521,1 | 53521,1 | 54521,5 | 54521,5 | 55521,9 | 55521,9 |
| D Висота кермової труби (mm) (inch) | 903,5 | 1104,3 | 1405,5 | 1606,3 |
| E Нахил кермової труби (degrees) | 70,0° | 69,9° | 70,5° | 70,4° | 71,0° | 70,9° | 71,0° | 70,9° |
| F Виліт вилки (mm) (inch) | 502 | 502 | 502 | 502 |
| G Шлях вилки (mm) (inch) | 78,43,1 | 823,2 | 753 | 78,53,1 | 71,62,8 | 75,13 | 71,62,8 | 753 |
| H Колісна база (mm) (inch) | 101239,8 | 102240,2 | 101940,1 | 102940,5 | 102640,4 | 103640,8 | 104341,1 | 105241,4 |
| I Довжина нижнього пір'я рами (mm) (inch) | 42516,7 | 43517,1 | 42516,7 | 43517,1 | 42516,7 | 43517,1 | 43016,9 | 44017,3 |
| J Провисання каретки (mm) (inch) | 803,1 | 813,2 | 803,1 | 813,2 | 803,1 | 813,2 | 803,1 | 813,2 |
| K Ефективна висота (mm) (inch) | 52320,6 | 52420,6 | 54421,4 | 54521,5 | 57422,6 | 57522,6 | 59323,3 | 59423,4 |
| L Ефективна довжина (mm) (inch) | 38015 | 37914,9 | 38415,1 | 38315,1 | 38615,2 | 38515,2 | 39115,4 | 38915,3 |
| M Безпечна висота (mm) (inch) | 68126,8 | 68827,1 | 70827,9 | 71528,1 | 74829,4 | 75529,7 | 77930,7 | 78630,9 |
| N Ширина керма (mm) (inch) | 40015,7 | 40015,7 | 42016,5 | 42016,5 |
| O Довжина виносу (mm) (inch) | 502 | 602,4 | 702,8 | 803,1 |
| P Довжина шатунів (mm) (inch) | 1656,5 | 1706,7 | 172,56,8 | 172,56,8 |
Giant залишає за собою право змiнювати специфiкацiї без попереднього повiдомлення.
