Категорія: Ендуранс

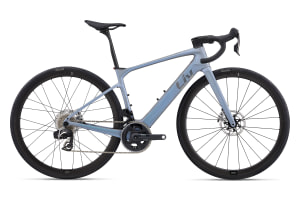

Avail Advanced E+ Elite 0
Категорія: Ендуранс

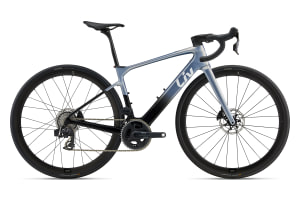

Avail Advanced E+ Elite 1
It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.
The Avail Advanced E+ Elite provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.
The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm which is comparable to 75 Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 45 km/h / 28 mph (US), 32 km/h (Canada), and 25 km/h (in other regions worldwide).
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
This console features two rows of lights and a power button and is integrated into the top tube to display mode and battery level at a glance. It functions on its own as a minimalist control panel or it can work in tandem with the RideControl Ergo 3, providing an additional way of selecting your support mode.
The new SyncDrive Move Plus motor delivers 30Nm of torque, which is comparable to 75Nm of torque in a mid-drive motor—all in a lightweight, quiet system that’s fully integrated into the rear hub. It features five support levels plus Smart Assist technology, which can automatically adjust pedaling support without having to change settings while riding. The motor uses sensors to constantly adjust output based on advanced algorithms.
Breeze through any ride with a state-of-the-art Liv EnergyPak battery. Our innovations include EnergyPak Smart series, EnergyPak series, and the EnergyPak Plus spare battery to pack along. Safety and efficiency remain our priority to keep you riding safely for long adventures.
Інформація про розмір має виключно довідковий характер та не є максимально достовірною. Будь ласка, зверніться до Вашого уповноваженого дилера Giant та Liv для визначення правильного розміру.
163 cm5’4” 169 cm5’7” 175 cm5’9” 183 cm6’0”
| XS | S | M | L | |
|---|---|---|---|---|
| A Довжина підсідельної труби (mm) (inch) | 40015,7 | 43517,1 | 47018,5 | 50519,9 |
| B Нахил підсідельної труби (degrees) | 74,5° | 74,5° | 74,0° | 73,5° |
| C Довжина верхньої труби (mm) (inch) | 51520,3 | 52520,7 | 54021,3 | 55521,9 |
| D Висота кермової труби (mm) (inch) | 1204,7 | 1355,3 | 1556,1 | 1756,9 |
| E Нахил кермової труби (degrees) | 70,5° | 71,0° | 72,0° | 72,0° |
| F Виліт вилки (mm) (inch) | 502 | 502 | 502 | 502 |
| H Колісна база (mm) (inch) | 99339,1 | 99939,3 | 100339,5 | 101339,9 |
| I Довжина нижнього пір'я рами (mm) (inch) | 42016,5 | 42016,5 | 42016,5 | 42016,5 |
| J Провисання каретки (mm) (inch) | 803,1 | 803,1 | 803,1 | 753 |
| K Ефективна висота (mm) (inch) | 52920,8 | 54521,5 | 56322,2 | 58222,9 |
| L Ефективна довжина (mm) (inch) | 36814,5 | 37414,7 | 37814,9 | 38215 |
| M Безпечна висота (mm) (inch) | 67726,7 | 70827,9 | 74329,3 | 78230,8 |
| N Ширина керма (mm) (inch) | 38015 | 40015,7 | 40015,7 | 42016,5 |
| O Довжина виносу (mm) (inch) | 803,1 | 903,5 | 1003,9 | 1104,3 |
| Q Розмір коліс | 700C | 700C | 700C | 700C |
Giant залишає за собою право змiнювати специфiкацiї без попереднього повiдомлення.
