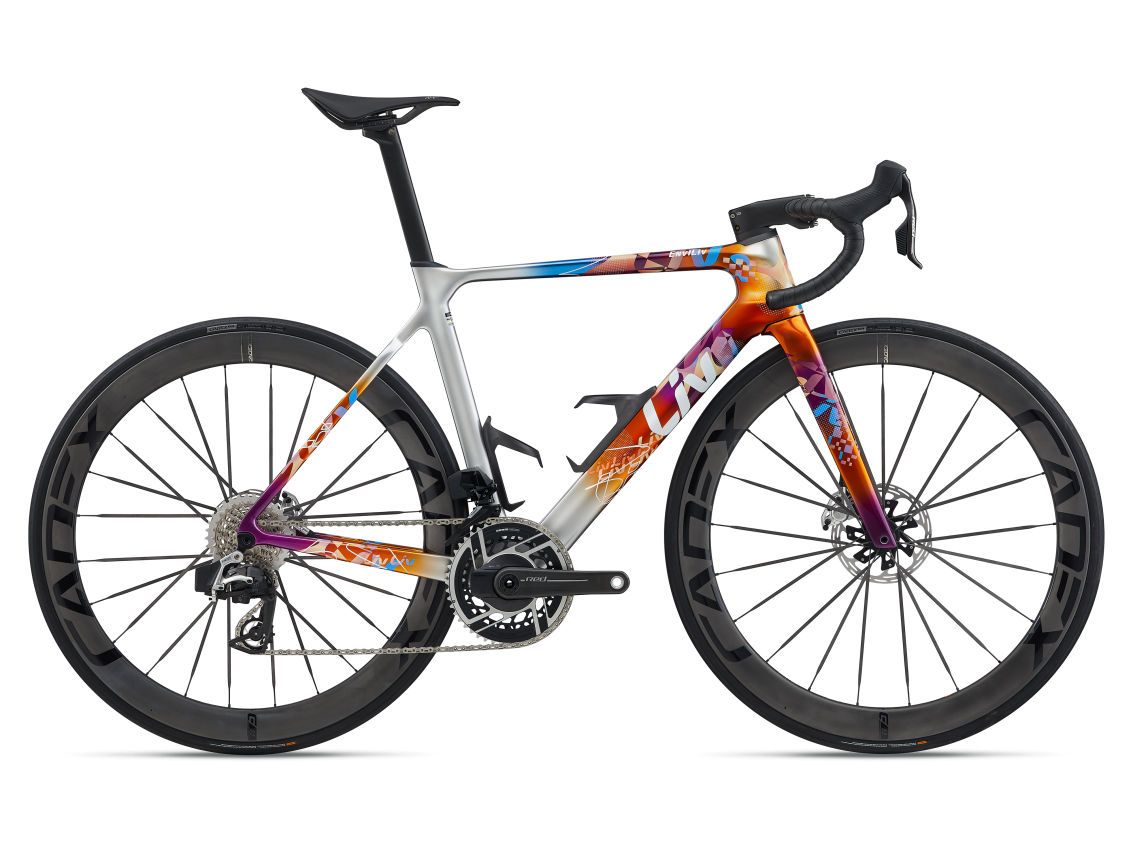

EnviLiv Advanced SL Team
The EnviLiv Advanced SL is designed and optimized for aerodynamic performance, making it the official aero road bike of Liv AlUla Jayco WorldTeam. From stage race breakaways to the final criterium lap, the EnviLiv is made to be out front.
Glavne značilnosti
Optimized Aerodynamics
In our pursuit of maximum power and efficiency, we analyze how the bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. The EnviLiv features truncated ellipse airfoil tube shapes and the Liv Contact SLR Aero handlebar, with flattened tops and deeper drops, for reduced drag and added control, and better overall aero performance.
Sprinting Efficiency
Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the new EnviLiv has found the sweetest spot, with an Advanced SL-grade composite frameset. We use Continuous Fiber Technology to add strength without adding weight, Carbon Nanotube Technology resin to improve impact resistance, and Fusion Process for lighter, stronger frame junctions. So you can accelerate faster away from the pack.
Seamless Integration
When every second matters, so does every detail. So we developed a way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.
Tehnologije
Found inside the head tube of the all-new EnviLiv range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
Using more continuous carbon fibers and titanium bolts, the Langma’s first fully-carbon seatpost is lightweight, aero, and easily adjustable.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XXS
- 145 cm4’9”
157 cm5’2”
- XS
- 152 cm5’0” 163 cm5’4”
- S
- 158 cm5’2” 169 cm5’7”
- M
- 164 cm5’5” 176 cm5’9”
- L
- 170 cm5’7” 182 cm6’0”
| XXS | XS | S | M | L | |
|---|---|---|---|---|---|
| A Dolžina sedežne cevi (mm) (inch) | 44017,3 | 47018,5 | 50019,7 | 53020,9 | 56022 |
| B Kot sedežne cevi (degrees) | 75,0° | 75,0° | 74,5° | 74,0° | 73,5° |
| C Top Tube Length (mm) (inch) | 49819,6 | 50820 | 52420,6 | 54021,3 | 55521,9 |
| D Višina glave okvirja (mm) (inch) | 1054,1 | 1204,7 | 1355,3 | 1556,1 | 1756,9 |
| E Krmilni kot (degrees) | 70,0° | 71,0° | 72,0° | 72,5° | 72,5° |
| F Zamik vpetja osi (mm) (inch) | 491,9 | 491,9 | 491,9 | 491,9 | 491,9 |
| G Trail (mm) (inch) | 72,72,8 | 66,32,6 | 59,92,3 | 56,82,2 | 56,82,2 |
| H Medosna razdalja (mm) (inch) | 97038,2 | 97338,3 | 97738,5 | 98438,7 | 99639,2 |
| I Dolžina cevi ob verigi (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| J Bottom Bracket Drop (mm) (inch) | 722,8 | 722,8 | 702,8 | 702,8 | 672,6 |
| K Oddaljenost zgornje cevi od gonilne osi (mm) (inch) | 49919,6 | 51720,4 | 53220,9 | 55321,8 | 56922,4 |
| L Doseg (mm) (inch) | 36414,3 | 37014,6 | 37714,8 | 38215 | 38615,2 |
| M Višina zgornje cevi (mm) (inch) | 706,127,8 | 731,828,8 | 761,130 | 787,431 | 815,332,1 |
| N Širina krmila (mm) (inch) | 36014,2 | 36014,2 | 38015 | 40015,7 | 42016,5 |
| O Dolžina opore krmila (mm) (inch) | 803,1 | 803,1 | 903,5 | 1003,9 | 1104,3 |
| P Dolžina gonilke (mm) (inch) | 1656,5 | 1656,5 | 1706,7 | 1706,7 | 172,56,8 |
| Q Velikost obročnikov | 700C | 700C | 700C | 700C | 700C |
Vse navedene specifikacije se lahko spremenijo brez obvestila.
