A state-of-the-art, high-pressure molding process used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar aluminum components.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

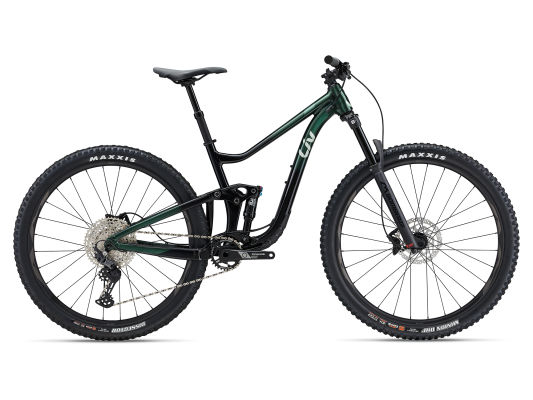

Intrigue 29 1
36 900 kr
Built to cover ground, mow over techy singletrack, and charge down aggressive terrain, the Intrigue 29 prefers the rowdy side of life.
Key Performance Factors
Trail Ready
ALUXX SL-grade aluminum frame, a dropper seatpost and wide, grippy tires keep you planted and help you tackle technical trails.
Balanced Agility
Obstacle-eating 29-inch wheels offer smooth handling and roll easily over small roots and rocks.
Custom Tuned Suspension
The 125 mm of Maestro Suspension has been custom tuned by women, for women to provide optimal performance for the rider and the bike’s intended use, resulting in improved traction and control.
Techs & Features
Advanced Forged Composite Technology
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
Flip Chip
The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.
Storleksguide och geometri
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 158 cm5’2”
169 cm5’7”
- M
- 164 cm5’5” 175 cm5’9”
- L
- 170 cm5’7” 181 cm5’11”
| S | M | L | ||
|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Längd sadelrör (mm) (inch) | 42516,7 | 43517,1 | 46018,1 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 29511,6 | 30512 | 33013 |
| B | Vinkel sadelrör (degrees) | 77,0° | 77,8° | 77,0° | 77,8° | 77,0° | 77,8° |
| C | Topprörets längd (mm) (inch) | 55822 | 55721,9 | 57422,6 | 57322,6 | 59923,6 | 59723,5 |
| D | Styrhuvud Längd (mm) (inch) | 1054,1 | 1104,3 | 1254,9 |
| E | Vinkel styrhuvud (degrees) | 65,8° | 66,5° | 65,8° | 66,5° | 65,8° | 66,5° |
| F | Gaffelvinkel (mm) (inch) | 441,7 | 441,7 | 441,7 |
| G | Spår (mm) (inch) | 1224,8 | 1174,6 | 1224,8 | 1174,6 | 1224,8 | 1174,6 |
| H | Hjulbas (mm) (inch) | 116045,7 | 116045,7 | 117746,3 | 117646,3 | 120547,4 | 120447,4 |
| I | Kedjestagslängd (mm) (inch) | 43817,2 | 43517,1 | 43817,2 | 43517,1 | 43817,2 | 43517,1 |
| J | Nedre fäste Drop (mm) (inch) | 401,6 | 301,2 | 401,6 | 301,2 | 401,6 | 301,2 |
| K | Stack (mm) (inch) | 62024,4 | 61424,2 | 62524,6 | 61824,3 | 63925,2 | 63224,9 |
| L | Reach (mm) (inch) | 41516,3 | 42416,7 | 43016,9 | 43817,2 | 45117,8 | 46018,1 |
| M | Stå över höjden (mm) (inch) | 74229,2 | 75129,6 | 73228,8 | 74129,2 | 75129,6 | 75929,9 |
| N | Styrets bredd (mm) (inch) | 76029,9 | 76029,9 | 78030,7 |
| O | Stamlängd (mm) (inch) | 502 | 502 | 502 |
| P | Vevlängd (mm) (inch) | 1706,7 | 1706,7 | 1756,9 |
| Q | Hjulstorlek | [F] 29" [R | [F] 29" [R | [F] 29" [R |
All specifications listed are subject to change without notice.
