Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

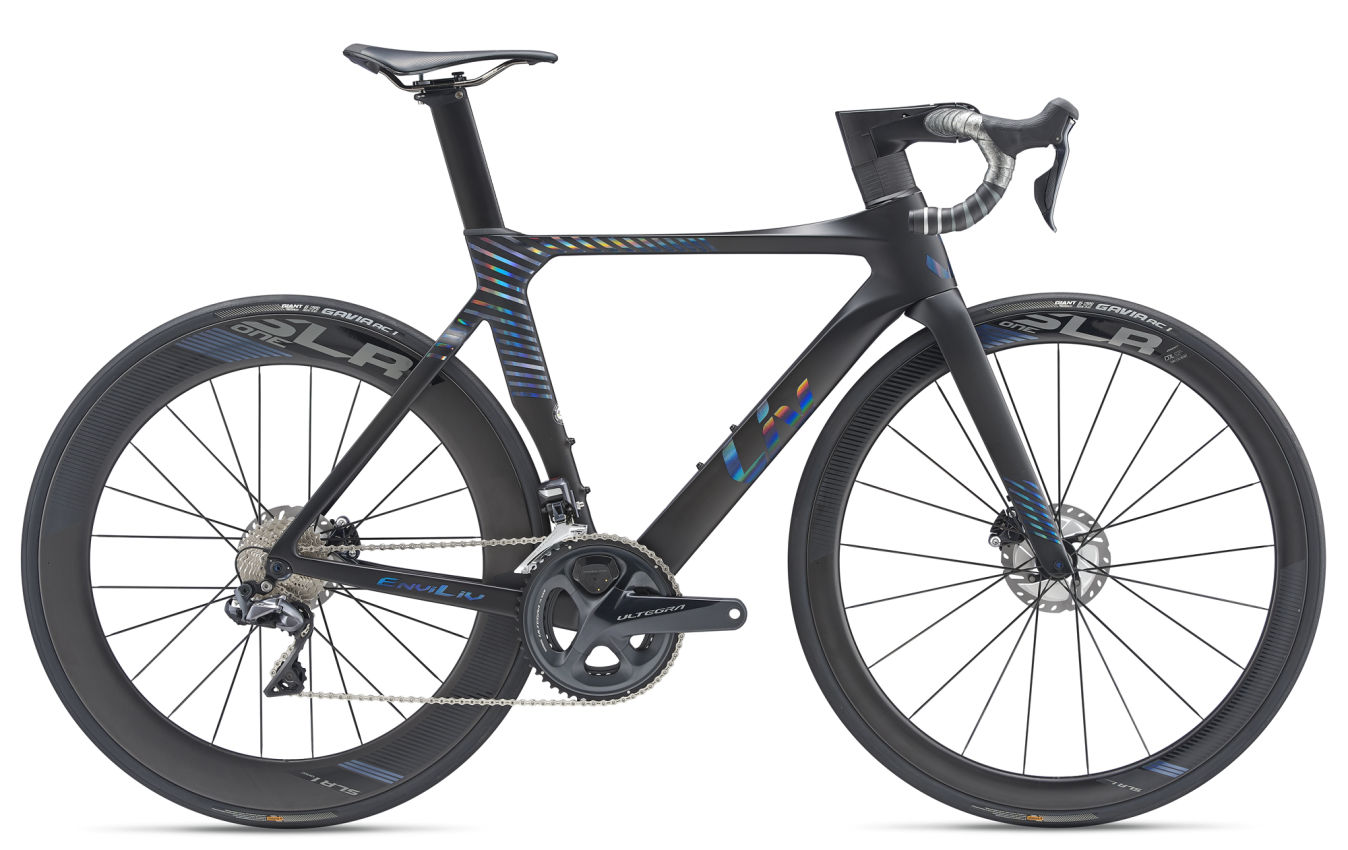

Enviliv Advanced Pro 0 Disc
2019
61 000 SEK
POWER THROUGH THE FLATS AND LAUGH IN THE FACE OF HEADWINDS, HILLS, AND PERSONAL RECORDS WITH THE SPRINTER’S DREAM MACHINE, SPECIFICALLY CRAFTED TO ProPEL ITS RIDER TO THE TOP.
Built to go faster, EnviLiv delivers an Advanced-grade composite frame where stiffness is the number one priority. With highly aerodynamic tubing and aggressive positioning, maximum power transfer on this machine propels you faster than ever before. Extraordinary fork lateral stiffness and the unrivaled stopping power of aerodynamic disc brakes stack up for precise cornering control and stability. Liv’s 3F-designed frame aims to give women their optimal weapon with an unbeatable forward force. An integrated aero handlebar and stem, tubeless wheel system with 28C tire clearance, and aero tubing features will punch through rolling hills, literally slice through the wind, and sprint ahead of the pack.
Key Performance Factors
Best Aero Road Bike
Realized by cutting edge tube shaping and a geometry that adds comfort and power to an aerodynamic body position.
All-Speed Control
Whether you’re cornering in the middle of an aggressive peloton or navigating a winding road in traffic, the fork lateral stiffness and disc-brakes offer the kind of control that frees your head to stay in the zone.
Uncompromised Stiffness
The high-speed efficiency is next to none for the strongest of sprinters, with a power transfer of this bike emphasizes the aero build.
Why We Love It
You say sprint, it asks how far. The boldly aerodynamic EnviLiv is designed to be sharp and snappy, for a blazing-fast ride. With precise handling, impeccable stopping power, and top-tier pedaling stiffness for sprinting, this bike is advantageous for a rider that’s going places — fast.
Techs & Features
Advanced Composite Technology
AeroSystem Shaping Technology
Tubing shapes engineered using computational fluid dynamics (CFD) and wind-tunnel data to optimize each tube shape for superior aerodynamic performance.
OverDrive 2
The most advanced steerer tube technology in today’s Liv and Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
RideSense
Liv and Giant’s chainstay-integrated, wireless data transmitter. The removable transmitter sends wheel speed and cadence information directly to any ANT+ compatible computer.
Storleksguide och geometri
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XXS
- 145 cm4’9”
157 cm5’2”
- XS
- 152 cm5’0” 163 cm5’4”
- S
- 158 cm5’2” 169 cm5’7”
- M
- 164 cm5’5” 176 cm5’9”
- L
- 170 cm5’7” 182 cm6’0”
| XXS | XS | S | M | L | |
|---|---|---|---|---|---|
| A Längd sadelrör (mm) (inch) | 43016,9 | 46518,3 | 50019,7 | 52020,5 | 54521,5 |
| B Vinkel sadelrör (degrees) | 75,0° | 75,0° | 74,5° | 74,0° | 73,5° |
| C Topprörets längd (mm) (inch) | 49719,6 | 50720 | 52420,6 | 54021,3 | 55521,9 |
| D Styrhuvud Längd (mm) (inch) | 973,8 | 1124,4 | 1275 | 1475,8 | 1676,6 |
| E Vinkel styrhuvud (degrees) | 70,5° | 71,0° | 72,0° | 72,5° | 72,5° |
| F Gaffelvinkel (mm) (inch) | 491,9 | 491,9 | 451,8 | 451,8 | 451,8 |
| G Spår (mm) (inch) | 702,8 | 662,6 | 642,5 | 612,4 | 612,4 |
| H Hjulbas (mm) (inch) | 96638 | 97238,3 | 97438,3 | 98138,6 | 99139 |
| I Kedjestagslängd (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| J Nedre fäste Drop (mm) (inch) | 702,8 | 702,8 | 682,7 | 682,7 | 682,7 |
| K Stack (mm) (inch) | 49219,4 | 50820 | 52520,7 | 54621,5 | 56522,2 |
| L Reach (mm) (inch) | 36514,4 | 37114,6 | 37814,9 | 38415,1 | 38815,3 |
| M Stå över höjden (mm) (inch) | 68827,1 | 72228,4 | 75729,8 | 77530,5 | 79931,5 |
| N Styrets bredd (mm) (inch) | 36014,2 | 36014,2 | 38015 | 40015,7 | 42016,5 |
| O Stamlängd (mm) (inch) | 803,1 | 803,1 | 903,5 | 1003,9 | 1104,3 |
| P Vevlängd (mm) (inch) | 1656,5 | 1656,5 | 1706,7 | 1706,7 | 172,56,8 |
| Q Hjulstorlek | 700C | 700C | 700C | 700C | 700C |
All specifications listed are subject to change without notice.
