Best For: Gravel
Devote 0
23 990 SEK
The frame, built from high-strength, lightweight aluminum, guarantees efficient power transfer, converting your effort into speed and offering a ride that's as durable as it is responsive.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.
Devote 2
18 990 SEK
Similar Products
Best For: Gravel
Devote 1
22 490 SEK
The Devote was designed to satisfy your gravel wanderlust. Balancing performance and ruggedness, this versatile bike is ready for anything from short cuts through the woods to long, winding trails, as well as crushing your first gravel race.
Key Performance Factors
Lightweight and Sleek
The durable yet lightweight ALUXX-grade aluminum frame with an Advanced-grade composite fork offer a smooth and forgiving ride, handy when you find yourself on the road less traveled. The redesigned geometry puts you in a more performance-oriented position and gives you added control whether you’re picking up speed or detouring downhill to the swimming hole.
Superior Comfort and Control
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for a comfortable and ergonomic grip. The Contact D-Fuse seatpost can be swapped out for a 30.9mm or 27.2mm round seatpost. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.
Unmatched Versatility
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction.
Highlights
1
ALUXX-GRADE ALUMINUM FRAME
2
ADVANCED-GRADE COMPOSITE FORK
The fork is constructed from high-performance grade raw carbon material in our own composite factory, providing exceptional strength and lightweight performance for greater power transfer, agility, and efficiency.
3
OVERDRIVE
Our oversized fork steerer tube technology is specifically engineered to deliver precise front-end steering performance. Featuring oversized headset bearings made of stainless steel for added longevity, along with a tapered steerer tube, this system delivers the ideal balance of steering stiffness and responsiveness.
4
D-FUSE TECHNOLOGY
Proprietary D-shaped composite seatpost and handlebar were designed to function as a system to absorb shocks and vibrations from various surfaces, resulting in a smoother, more compliant ride quality.
5
SEATPOST COMPATIBILITY
The Devote is compatible with multiple seatpost options, including D-Fuse and round seatposts in 30.9mm or 27.2mm sizes, allowing you to tailor the bike to your riding style.
6
MULTIPLE WATER BOTTLE MOUNTS
The Devote features three sets of frame mounts, allowing you to carry multiple water bottles and ensuring easy access to hydration during long rides or bike-packing expeditions.
7
ADDITIONAL FRAME MOUNTS
Discover added versatility with top tube mounts for secure bag attachment, fork mounts for accessory integration, and fender mounts to ward off debris and water.
8

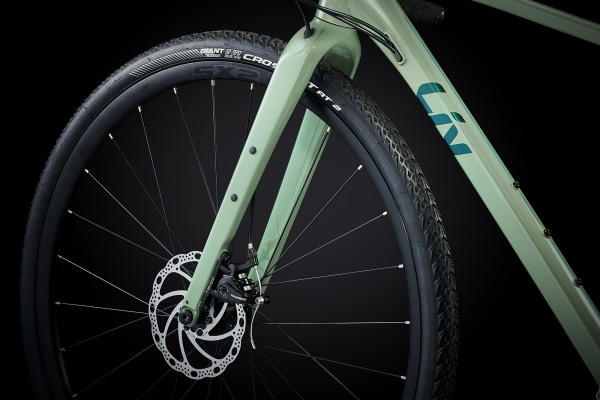

DISC BRAKE INTEGRATION
The frame and fork are engineered specifically for flat-mount disc brakes, including front and rear 12mm thru-axles for reliable braking performance in all weather and road conditions.
9
GIANT TUBELESS WHEELSET
The Giant tubeless wheelset delivers enhanced performance and a smoother ride through its innovative tubeless design, minimizing puncture risk and optimizing rolling efficiency.
Techs & Features
Advanced Composite Technology
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
D-Fuse Seatpost
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
Storleksguide och geometri
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 150 cm4’11”
163 cm5’4”
- S
- 158 cm5’2” 169 cm5’7”
- M
- 164 cm5’5” 175 cm5’9”
- L
- 170 cm5’7” 181 cm5’11”
| XS | S | M | L | ||
|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
| A | Längd sadelrör (mm) (inch) | 39015,4 | 42016,5 | 46518,3 | 50019,7 |
| B | Vinkel sadelrör (degrees) | 74,5° | 74,4° | 74,5° | 74,4° | 74,5° | 74,4° | 74,5° | 74,4° |
| C | Topprörets längd (mm) (inch) | 52520,7 | 52520,7 | 53521,1 | 53521,1 | 54521,5 | 54521,5 | 55521,9 | 55521,9 |
| D | Styrhuvud Längd (mm) (inch) | 903,5 | 1104,3 | 1405,5 | 1606,3 |
| E | Vinkel styrhuvud (degrees) | 70,0° | 69,9° | 70,5° | 70,4° | 71,0° | 70,9° | 71,0° | 70,9° |
| F | Gaffelvinkel (mm) (inch) | 502 | 502 | 502 | 502 |
| G | Spår (mm) (inch) | 78,43,1 | 823,2 | 753 | 78,53,1 | 71,62,8 | 75,13 | 71,62,8 | 753 |
| H | Hjulbas (mm) (inch) | 101740 | 102740,4 | 102440,3 | 103440,7 | 103140,6 | 104141 | 104341,1 | 105241,4 |
| I | Kedjestagslängd (mm) (inch) | 43016,9 | 44017,3 | 43016,9 | 44017,3 | 43016,9 | 44017,3 | 43016,9 | 44017,3 |
| J | Nedre fäste Drop (mm) (inch) | 803,1 | 813,2 | 803,1 | 813,2 | 803,1 | 813,2 | 803,1 | 813,2 |
| K | Stack (mm) (inch) | 52320,6 | 52420,6 | 54421,4 | 54521,5 | 57422,6 | 57522,6 | 59323,3 | 59423,4 |
| L | Reach (mm) (inch) | 38015 | 37914,9 | 38415,1 | 38315,1 | 38615,2 | 38515,2 | 39115,4 | 38915,3 |
| M | Stå över höjden (mm) (inch) | 68126,8 | 68827,1 | 70827,9 | 71528,1 | 74829,4 | 75529,7 | 77930,7 | 78630,9 |
| N | Styrets bredd (mm) (inch) | 40015,7 | 40015,7 | 42016,5 | 42016,5 |
| O | Stamlängd (mm) (inch) | 502 | 602,4 | 702,8 | 803,1 |
| P | Vevlängd (mm) (inch) | 1656,5 | 1706,7 | 172,56,8 | 172,56,8 |
| Q | Hjulstorlek | 700 | 700 | 700 | 700 |
All specifications listed are subject to change without notice.
