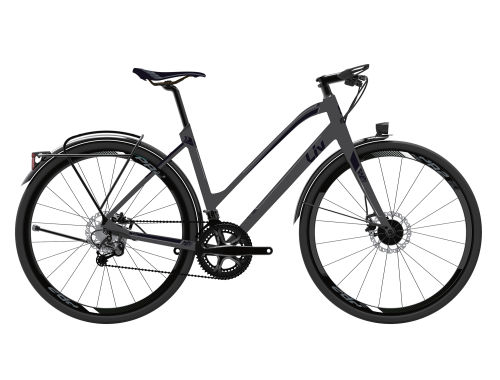

Lissom RS 2

2018

Share

  • ALUXX SL-grade aluminium frame
  • Advanced-grade composite fork
  • Shimano Tiagra 2x10 speed drivetrain components
  • Shimano M365 hydraulic disc brakes
  • Giant S-R2 Disc wheelset with tubeless tires
  • Color: Charcoal/Red

Download PDF

MarimiS,M,L
CuloriCharcoal/Red
CadruALUXX SL-Grade Aluminum
FurcaAdvanced-Grade Composite, ALUXX OverDrive Steerer
GhidonGiant Connect XC FlatBar, 31.8
PipaGiant Connect, ± 8 °, 31.8
Tija saGiant D-Fuse, Alloy
SaContact Comfort (Neutral)
Manete schimbatorShimano Tiagra 4700, 2x10
Schimbator fataShimano Tiagra FD-4700
Schimbator spateShimano Tiagra FD-4700
FraneShimano M365 (160/160)
PinioaneShimano HG-500, 11x32
LantKMC X10 with Missing Link
AngrenajRS-400, 34/50
Bottom BracketShimano -RS500 Threaded
JanteGiant SR-2 Disc wheel
ButuciFront Hub DH-3D32 (32 Holes) Rear Hub GDC-1520 (32 Holes)
SpiteFront Hub DH-3D32 (32 Holes) Rear Hub GDC-1520 (32 Holes)
AnvelopeCrossCut Metro 2 Tubeless Tire, 700x32C
ExtrasMassLoad CL-KA98 Kickstand with Giant Logo, gray release button
LightingFront: Lumotec LYT B N Plus Rear: Busch&Müller Customized Rear Light with Z-Mark Reflector
CarrierMassLoad Customized Smart Mounting Rack with Giant Logo adaptor
Fender/ChainguardFront: Sunnywheel Al Fender (FA-513-43E1) with Black Stay, FV-515 Stay , MSB with Giant Logo Rear: Sunnywheel Al Fender (FA-513-43E1) with Structure Ribs
GreutateCat cantareste bicicleta? Este o intrebare uzuala si indreptatita. Adevarul este ca nu exista un standard al industriei care sa reglementeze aceasta masurare, si asta duce la multe confuzii. Variatiile au drept cauza marimile si materialul cadrului, finisajele si echiparile. Cum tendinta este spre o greutate mai redusa, fiecare astfel de detaliu conteaza. GIANT considera ca singura cale prin care poti fi sigur 100% de greutatea unei biciclete este de a solicita cantarirea ei la magazin.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

  SML
ASeat Tube Length (mm) (inch)46018,149019,352020,5
BSeat Tube Angle (degrees)73,0°73,0°72,5°
CTop Tube Length (mm) (inch)55021,757522,659523,4
DHead Tube Length (mm) (inch)1656,51656,51857,3
EHead Tube Angle (degrees)70,0°70,0°70,0°
FFork Rake (mm) (inch)451,8451,8451,8
GTrail (mm) (inch)783,1783,1783,1
HWheelbase (mm) (inch)104941,3107642,4109143
IChain Stay Length (mm) (inch)45017,745017,745017,7
JBottom Bracket Drop (mm) (inch)702,8702,8702,8
KStack (mm) (inch)55721,958122,960023,6
LReach (mm) (inch)3801539715,640616
MStand Over Height (mm) (inch)53020,952320,651620,3
NHandlebar Width (mm) (inch)62024,462024,462024,4
OStem Length (mm) (inch)903,51003,91104,3
PCrank Length (mm) (inch)1706,71706,71756,9
QWheel Size 700C700C700C

Toate specificatiile enumerate se pot schimba fara notificare prealabila.
