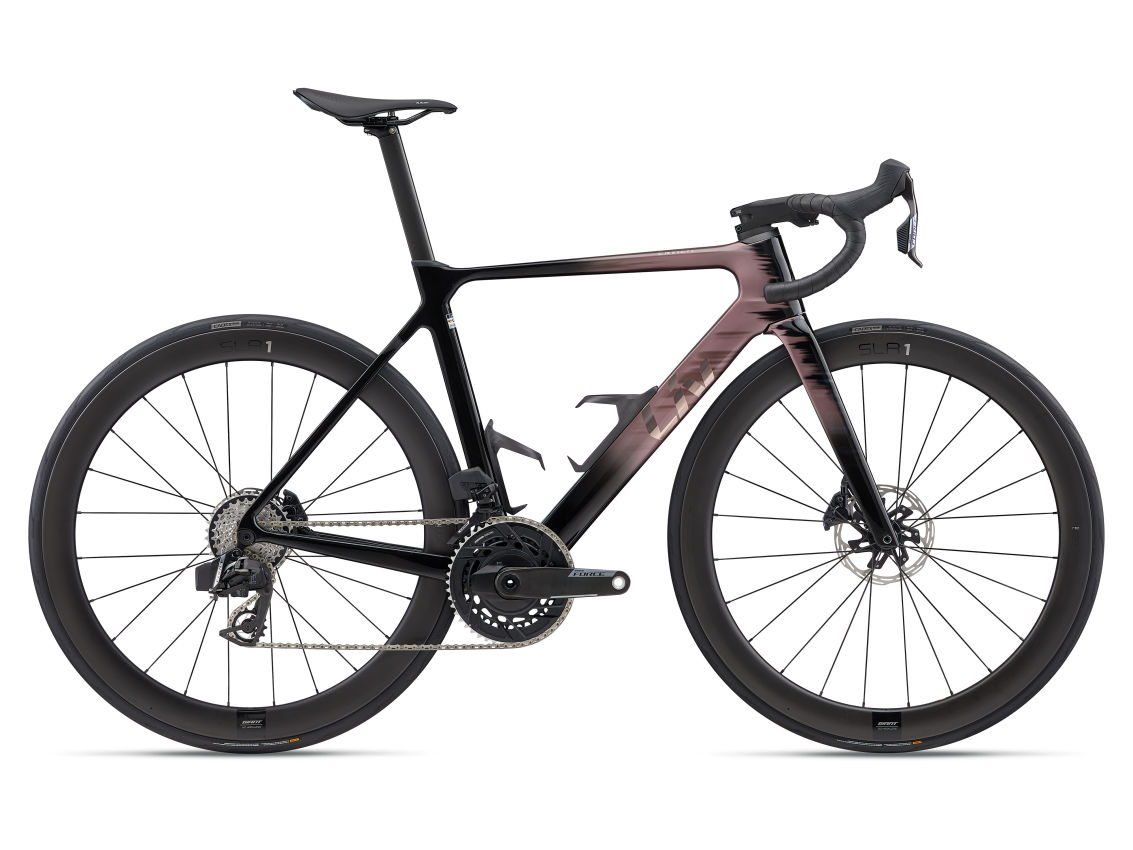

EnviLiv Advanced Pro 0 (AXS)

Produse Similare

Best For: Aero Race

EnviLiv Advanced Pro 0

Best For: Aero Race

EnviLiv Advanced Pro 1

Skip to compare section

From the stage race breakaway to the final criterium lap, the all-new EnviLiv is made to be out front. We’ve redesigned our signature sprinter for optimized aerodynamic performance, greater stiffness-to-weight advantage, and maximum trophies.

Key Performance Factors

Optimized Aerodynamics

In our pursuit of maximum power and efficiency, we analyze how the bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. The new EnviLiv features truncated ellipse airfoil tube shapes and an all-new Contact SLR Aero cockpit, with flattened tops and deeper drops, for reduced drag and added control, and better overall aero performance.

Sprinting Efficiency

Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the EnviLiv has found the sweet spot, with a new Advanced-grade composite frame and an Advanced SL-grade composite fork—resulting in 205 grams of weight savings over the previous generation.

Seamless Integration

When every second matters, so does every detail. So we developed a new way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.

Techs & Features

Advanced Composite Technology
AeroSystem Shaping Technology
OverDrive Aero
Tubeless System
PowerCore

Ghid de marimi si Geometrii

Marimile prezentate mai jos sunt numai de referinta. Pentru alegerea unei marimi corecte este necesar sa vizitati un Dealer Giant sau Liv, sau sa cereti consultanta online.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XXS
      145 cm4’9” to 157 cm5’2”
  • XS
      152 cm5’0” to 163 cm5’4”
  • S
      158 cm5’2” to 169 cm5’7”
  • M
      164 cm5’5” to 176 cm5’9”
  • L
      170 cm5’7” to 182 cm6’0”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XXSXSSML
A Seat Tube Length (mm) (inch)44017,347018,550019,753020,956022
B Seat Tube Angle (degrees)75,0°75,0°74,5°74,0°73,5°
C Top Tube Length (mm) (inch)49819,65082052420,654021,355521,9
D Head Tube Length (mm) (inch)1054,11204,71355,31556,11756,9
E Head Tube Angle (degrees)70,0°71,0°72,0°72,5°72,5°
F Fork Rake (mm) (inch)491,9491,9491,9491,9491,9
G Trail (mm) (inch)72,72,866,32,659,92,356,82,256,82,2
H Wheelbase (mm) (inch)97038,297338,397738,598438,799639,2
I Chain Stay Length (mm) (inch)40515,940515,940515,940515,940515,9
J Bottom Bracket Drop (mm) (inch)722,8722,8702,8702,8672,6
K Stack (mm) (inch)49919,651720,453220,955321,856922,4
L Reach (mm) (inch)36414,337014,637714,83821538615,2
M Stand Over Height (mm) (inch)70627,873228,8761307873181532,1
N Handlebar Width (mm) (inch)36014,236014,23801540015,742016,5
O Stem Length (mm) (inch)803,1803,1903,51003,91104,3
P Crank Length (mm) (inch)1606,31656,51656,51706,7172,56,8
Specs
  • Marimi
    XXS, XS, S, M, L
  • Culori
    Iron Rouge/Chrome
  • Cadru
    Advanced-grade composite, 12x142mm thru-axle, disc
  • Furca
    Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Soc
    N/A
  • Ghidon
    Liv Contact SLR Aero, 31.8mm, XXS: 360mm, XS: 360mm, S: 380mm, M: 400mm, L: 420mm
  • Grips
    Liv Stratus Elite 2.0
  • Pipa
    Giant Contact SL Aero, XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L: 110mm
  • Tija sa
    Giant Vector, composite, XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm
  • Sa
    Liv Alacra SL
  • Manete schimbator
    SRAM Force AXS E1
  • Schimbator fata
    SRAM Force AXS E1
  • Schimbator spate
    SRAM Force AXS E1
  • Frane
    SRAM Force AXS E1 hydraulic, SRAM PaceLine X rotors, [F]160mm, [R]140mm
  • Manete frana
    SRAM Force AXS E1 hydraulic
  • Pinioane
    SRAM Force E1, 12-speed, 10x33
  • Lant
    SRAM Force E1
  • Angrenaj
    SRAM Force E1 DUB, 35/48 with Quarq power meter, XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 172.5mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Jante
    Giant SLR 1 50 Carbon Disc WheelSystem, [F] 50mm, [R] 50mm
  • Butuci
    [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
  • Spite
    SAPIM CX-Ray
  • Anvelope
    CADEX Road Race GC, tubeless, 700x28c, folding
  • Extras
    computer mount, two bottle cages, tubeless prepared, 32mm max tire size
  • Max Tire Clearance
    32mm
  • Greutate
    Cat cantareste bicicleta? Este o intrebare uzuala si indreptatita. Adevarul este ca nu exista un standard al industriei care sa reglementeze aceasta masurare, si asta duce la multe confuzii. Variatiile au drept cauza marimile si materialul cadrului, finisajele si echiparile. Cum tendinta este spre o greutate mai redusa, fiecare astfel de detaliu conteaza. GIANT considera ca singura cale prin care poti fi sigur 100% de greutatea unei biciclete este de a solicita cantarirea ei la magazin.

Download PDF

Toate specificatiile enumerate se pot schimba fara notificare prealabila.
