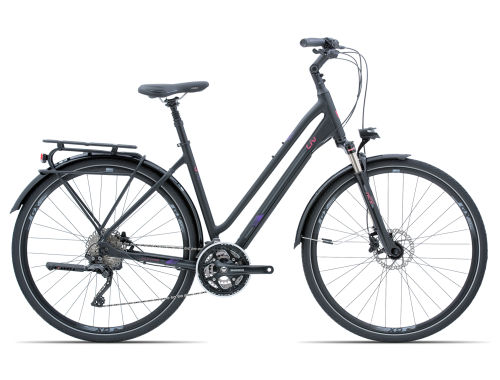

Allure RS 1

2019

Share

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

  SML
ASeat Tube Length (mm) (inch)45017,750019,755021,7
BSeat Tube Angle (degrees)73,0°73,0°73,0°
CTop Tube Length (mm) (inch)57022,458022,859023,2
DHead Tube Length (mm) (inch)1606,31756,91907,5
EHead Tube Angle (degrees)69,0°69,0°69,0°
FFork Rake (mm) (inch)421,7421,7421,7
GTrail (mm) (inch)953,7953,7953,7
HWheelbase (mm) (inch)108842,8109943,3111043,7
IChain Stay Length (mm) (inch)45517,945517,945517,9
JBottom Bracket Drop (mm) (inch)702,8702,8702,8
KStack (mm) (inch)64325,365725,967126,4
LReach (mm) (inch)37314,737914,938515,2
MStand Over Height (mm) (inch)47418,746918,545918,1
NHandlebar Width (mm) (inch)62024,462024,462024,4
OStem Length (mm) (inch)903,5903,51104,3
PCrank Length (mm) (inch)1756,91756,91756,9
QWheel Size 700C700C700C

Toate specificatiile enumerate se pot schimba fara notificare prealabila.
