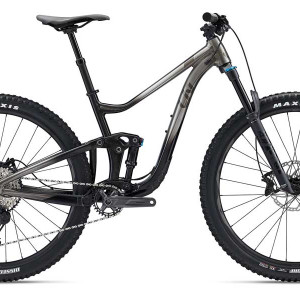

Intrigue 29 1

3 749 €

¿Cuál es mi talla?

Share

Built to cover ground, mow over techy singletrack, and charge down aggressive terrain, the Intrigue 29 prefers the rowdy side of life.

Key Performance Factors

Trail Ready

ALUXX SL-Grade Aluminum frame, a dropper seatpost and wide, grippy tires keep you planted and help you tackle technical trails.

Balanced Agility

Obstacle-eating 29-inch wheels offer smooth handling and roll easily over small roots and rocks.

Custom Tuned Suspension

The 125 mm of Maestro Suspension has been custom tuned by women, for women to provide optimal performance for the rider and the bike’s intended use, resulting in improved traction and control.

Highlights

Intrigue 29 with interactive tooltips

Techs & Features

ALUXX SL Aluminum Technology

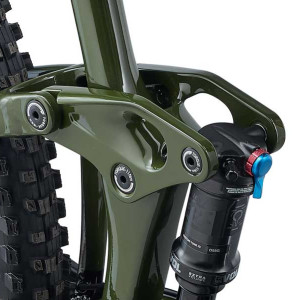

Maestro Suspension Technology
OverDrive
PowerCore
Tubeless System
Flip Chip

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      158 cm5’2”  to 169 cm5’7”
  • M
      164 cm5’5”  to 175 cm5’9”
  • L
      170 cm5’7”  to 181 cm5’11”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SML
  LOW | HIGHLOW | HIGHLOW | HIGH
ASeat Tube Length (mm) (inch)42516,743517,146018,1
BSeat Tube Angle (degrees)77,0° | 77,8°77,0° | 77,8°77,0° | 77,8°
CTop Tube Length (mm) (inch)55822 | 55721,957422,6 | 57322,659923,6 | 59723,5
DHead Tube Length (mm) (inch)1054,11104,31254,9
EHead Tube Angle (degrees)65,8° | 66,5°65,8° | 66,5°65,8° | 66,5°
FFork Rake (mm) (inch)441,7441,7441,7
GTrail (mm) (inch)1224,8 | 1174,61224,8 | 1174,61224,8 | 1174,6
HWheelbase (mm) (inch)116045,7 | 116045,7117746,3 | 117646,3120547,4 | 120447,4
IComprimento Chain Stay (mm) (inch)43817,2 | 43517,143817,2 | 43517,143817,2 | 43517,1
JSuporte inferior (mm) (inch)401,6 | 301,2401,6 | 301,2401,6 | 301,2
KStack (mm) (inch)62024,4 | 61424,262524,6 | 61824,363925,2 | 63224,9
LReach (mm) (inch)41516,3 | 42416,743016,9 | 43817,245117,8 | 46018,1
MStand Over Height (mm) (inch)73128,8 | 74029,173729 | 74629,475629,8 | 76530,1
NHandlebar Width (mm) (inch)76029,976029,978030,7
OStem Length (mm) (inch)502502502
PCrank Length (mm) (inch)1706,71706,71756,9
QWheel Size 29"29"29"
Specs
  • Tamanhos
    S, M
  • Cores
    Smoke Metal
  • Quadro
    ALUXX SL-Grade Aluminum front and rear triangles, 125mm Maestro Suspension, flip chip
  • Forquilha

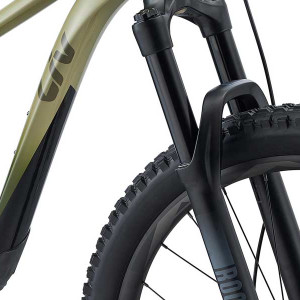

    Fox 34 Float Performance, 140mm, GRIP damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv
  • Amortecedores
    Fox Float DPS Performance, 185/50, custom tuned for Liv
  • Guiador
    Giant Contact TR35, alloy, 35mm S:760mm, M:760mm, L:780mm
  • Grips
    Liv Supera, single lock ring
  • Avanço
    Giant Contact SL, 35mm S:50mm, M:50mm, L:50mm
  • Espigão de selim
    Giant Contact Switch dropper, remote S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 499mm

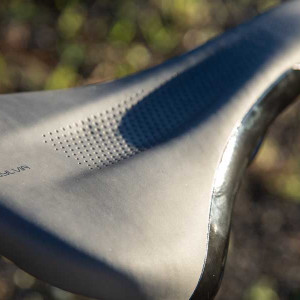

  • Selim
    Liv Sylvia
  • Pedais
    platform
  • Manetes
    Shimano SLX M7100, 1x12
  • Desviador dianteiro
    N/A
  • Desviador traseiro
    Shimano SLX M7100
  • Travões
    Shimano BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
  • Manípulos dos travões
    Shimano MT501
  • Cassete
    Shimano SLX M7100, 10x51
  • Corrente
    KMC X-12
  • Conjunto pedaleiro
    Shimano M511, 30t S:170mm, M:170mm, L:170mm
  • Bottom Bracket
    Shimano, press fit
  • Aros
    Giant AM 29, tubeless ready, sleeve-joint, 30mm inner width
  • Cubos
    [F] alloy 15x110, sealed bearing [R] alloy 12x148, sealed bearing
  • Raios
    Sapim
  • Pneus
    [F] Maxxis Minion DHF 29x2.5WT, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, EXO, TR, tubeless
  • Extras
    tubeless prepared, max tire size 2.5", max chainring size 32t
  • Peso
    Quanto pesa esta bicicleta? Esta é uma pergunta comum e importante. Mas a verdade é que não existem normas da indústria que permitam comparar o peso de uma bicicleta entre marcas o que faz com que haja muita informação errada. Existem diferenças em termos de tamanho, material utilizado no quadro, acabamentos e peças. E à medida que as bicicletas se tornam mais leves, maiores são essas diferenças. Na Giant, acreditamos que a única maneira de se saber realmente o peso de uma bicicleta é informar-se no seu revendedor local.

Todas as especificações apresentadas estão sujeitas a alterações sem aviso prévio.
