Liv Design Data

Data Behind 3F

More than 30 reputable sources, ranging from research studies to the Global Body Dimension Database, inform thousands of data points about women’s anatomy, sizing variations and muscle energy and outputs are reviewed and analyzed by Liv Design leaders to create three layers of data: Body Dimensions, Muscular Activity, and Strength Patterns.



BODY DIMENSIONS

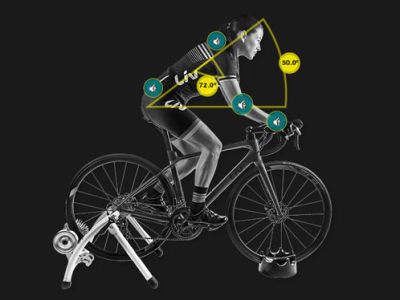

We use a collection of body dimensions data, including average anatomical measurements for both men and women, as we set a woman’s fit on the bike. The optimal fit we create brings a woman’s body into a comfortable seated position with ideal placement of contact points, and situates her body to deliver maximum power output.



Figure 1. These are the average anatomical differences between men and women of the same height. Liv uses this data for setting body position and contact points like narrower handlebars, smaller grips, women’s-specific saddle design, and crank length.

  1. Stature
  2. Crotch Height
  3. Sitting Height
  4. Shoulder Breadth
  5. Shoulder to Grip
  6. Hand Length
  7. Hand Breadth
  8. Hip Breadth, sitting
  9. Ischium Distance
  10. Foot Length
  11. Foot Breadth



Figure 2.  Looking at the average body measurements of men and women of 5’7” and of 5’3”, we see significant anatomical differences that will determine the best bike fit. Notice that differences in proportions become more pronounced for shorter men and women.



Figure 3. When we put the average woman onto her closest sized men’s frame, we see that she becomes too bent over and stretched out. Not only can this negatively impact her power output, pedal efficiency and balance for bike control, but it also can result in pain points such as lower back pain, neck pain, elbow pain, and numbing of the hands. Riding in the wrong position may lead to injury down the road…or trail.



Figure 4. Height Distribution applies to how we decide our frame sizing range. Liv is committed to proper bike fit for the majority of women, short and tall. We recognize that there is a range of body shapes and sizes that overlap. But our research shows us that women's-specific componentry plays a big role in women's comfort on the bike.



MUSCULAR ACTIVITY:

Figure 5. Liv bicycle designs emphasize women’s fierce lower body strength, taking into account her natural muscle firing pattern. Here we see the data found that women activate the rectus femoris (front thigh) muscles more so than men while cycling.

  1. Rectus Femoris
  2. Vastus Lateralis
  3. Vastus Intermedius
  4. Vastus Medialis



STRENGTH PATTERNS:

Figure 6. Here we compare the proportions of how average men and women recruit strength from their lower body and upper body. Notice that a woman’s percentage of lower body to upper body strength is greater than that of a man’s. We use this data on strength differences to tailor the stiffness and compliance of our frames to meet a woman’s power demands, without sacrificing the strength and durability of the frame. This delivers a unique carbon layup in each of our composite frames for a tough, yet feather-light bike and a super comfortable ride.

  1. Total Body Strength
  2. Upper Extremities Strength
  3. Lower Extremities Strength
  4. Trunk Strength
  5. Dynamic Strength



Works Cited
