Avail
Advanced Pro 1

Share

The Avail Advanced Pro is that riding partner who’s up for any challenge on the road—from long winding ascents to short gravel sections, and from solo endurance training rides to the “friendly” competition of a Gran Fondo. Designed for performance and built without compromise, this road warrior is ready to take you as far as you can go, which is always farther than you think.

Key Performance Factors

Lightweight Advantage

The Avail Advanced Pro is the ultimate in lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced SL-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.

Superior Compliance

Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.

Maximum Control

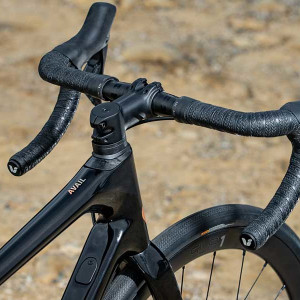

The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those all-day rides. Wide, hookless carbon rims are designed for high-volume tubeless tires (up to 38mm) and a 36mm rim depth, providing predictable handling and stability from asphalt to pavé.

Highlights

Avail Advanced Pro with interactive tooltips

Techs & Features

Advanced Composite Technology
Advanced SL Composite Technology
D-Fuse Seatpost
OverDrive 2
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XXS
      145 cm4’9”  to 156 cm5’1”
  • XS
      153 cm5’0”  to 162 cm5’4”
  • S
      158 cm5’2”  to 169 cm5’7”
  • M
      165 cm5’5”  to 174 cm5’9”
  • L
      171 cm5’7”  to 182 cm6’0”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XXSXSSML
ASeat Tube Length (mm) (inch)38515,240515,943517,146518,349519,5
BSeat Tube Angle (degrees)75,0°74,5°74,5°74,0°74,0°
CTop Tube Length (mm) (inch)50019,752020,552520,753521,155521,9
DHead Tube Length (mm) (inch)1104,31254,91455,71656,51857,3
EHead Tube Angle (degrees)69,8°71,0°71,0°71,0°72,0°
FFork Rake (mm) (inch)502502502502502
GTrail (mm) (inch)763682,7682,7682,7612,4
HWheelbase (mm) (inch)98938,999539,2100239,4100739,6101339,9
IChain Stay Length (mm) (inch)42016,542016,542016,542016,542016,5
JBottom Bracket Drop (mm) (inch)753753732,9732,9732,9
KStack (mm) (inch)51020,152820,854721,556622,358923,2
LReach (mm) (inch)36314,337314,737314,737314,738115
MStand Over Height (mm) (inch)68326,971228737297623078931,1
NHandlebar Width (mm) (inch)380153801540015,740015,742016,5
OStem Length (mm) (inch)702,8702,8803,1903,5903,5
PCrank Length (mm) (inch)1656,51656,51706,71706,7172,56,8
QWheel Size 700C700C700C700C700C
Specs
  • Sizes
    XXS, XS, S, M, L
  • Colors
    Golden Haze/Carbon/Chrome, Y2K
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc
  • Fork
    Advanced SL-grade composite, full-composite OverDrive Aero steerer, stainless steel bearings 12x100mm, disc
  • Shock
    N/A
  • Handlebar
    Liv Contact SL D-Fuse, 31.8mm, 8-degree flare drop XXS: 410/380mm, XS: 410/380mm, S: 430/400mm, M: 430/400mm, L: 450/420mm
  • Grips
    Liv All Condition
  • Stem
    Giant Contact SL AeroLight XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
  • Seatpost
    Giant Contact SL D-Fuse, composite, -5/+15mm offset XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm
  • Saddle
    Liv Alacra SL
  • Pedals
    N/A
  • Shifters
    Shimano 105 Di2
  • Front Derailleur
    Shimano 105 Di2
  • Rear Derailleur
    Shimano 105 Di2
  • Brakes
    Shimano 105 Di2 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano 105 Di2 hydraulic
  • Cassette
    Shimano 105, 12-speed, 11x36
  • Chain
    KMC X12
  • Crankset
    Shimano 105, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
  • Hubs
    [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
  • Spokes
    Sapim
  • Tires
    Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
  • Extras
    tubeless prepared, two bottle cages, 38mm max tire size, fender mount, computer mount
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All specifications listed are subject to change without notice.
