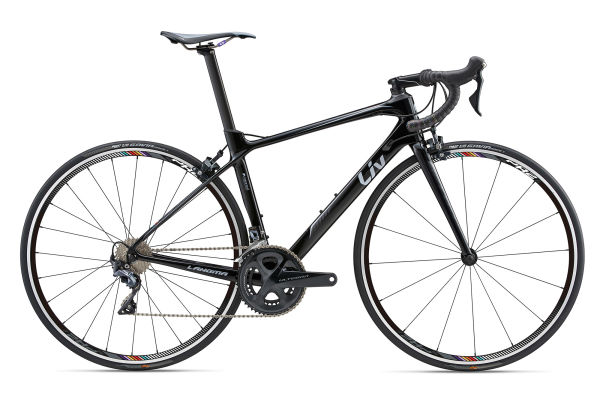

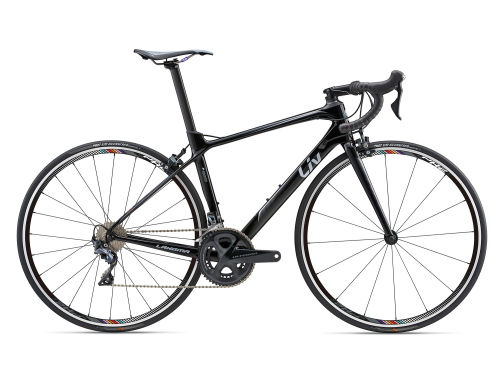

Langma Advanced 0

2020

What is my size?

Share

THIS FEATHER-LIGHT RACING BIKE DELIVERS THE SPEED AND STRENGTH NEEDED FOR ANY CLIMB, RACE OR RIDE.

The Langma Advanced is engineered for aggressive climbing, descending and accelerations. The frame’s slender tubing creates an extremely fast and lightweight racing machine, while the downtube thickens as it approaches the PowerCore bottom bracket for pedaling stiffness strength. With Liv’s 3F Design Philosophy and cutting-edge lightweight aerodynamic innovations, Langma Advanced provides the winning advantage for every effort, from long hilly races to fast-paced criteriums.

Key Performance Factors

Lightweight

The compact Advanced Composite frame, with slender tubing, and stiffness tuned for the female rider, is a serious climbing weapon.

Aero-features

Combining innovative tubing design with the Flux stem to slice through the wind without sacrificing weight or stiffness.

Precise Handling

This climbing weapon can tackle the return descents or any technical flat corner, with appropriate lateral stiffness and disc brake control.

Why We Love It

Handcrafted for the toughest climbers, aspiring racers, seasoned competitors and passionate cyclists alike, Langma Advanced is built to fly up steep grades and long climbs, and is fit for endless switchbacks. The slender tubing and light weight combine for quick accelerations so you can conquer the climbs, power through flats, and rail technical descents. This bike is a true companion for a determined rider.

Download PDF

Specs
SizesXXS, XS, S, M, L
ColorsDark Red
FrameAdvanced-Grade Composite
ForkAdvanced-Grade Composite, alloy OverDrive steerer
ShockN/A
HandlebarGiant Contact SL
StemGiant Contact
SeatpostGiant Variant, composite
SaddleLiv Contact (forward)
PedalsN/A
ShiftersShimano Ultegra Di2
Front DerailleurShimano Ultegra Di2
Rear DerailleurShimano Ultegra Di2
BrakesShimano Ultegra
Brake LeversShimano Ultegra
CassetteShimano 105, 11x34
ChainKMC X11EL-1
CranksetShimano Ultegra, 34/50
Bottom BracketShimano, press fit
RimsGiant P-R2 wheelset
HubsGiant P-R2 wheelset
SpokesGiant P-R2 wheelset
TiresGiant Gavia Course AC 1, 700x25, tubeless
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Highlights

1 2 3 4 5 6 7 8 Highlights

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

  • XXS
      145 cm4’9”  to 157 cm5’2”
  • XS
      152 cm5’0”  to 163 cm5’4”
  • S
      158 cm5’2”  to 169 cm5’7”
  • M
      164 cm5’5”  to 176 cm5’9”
  • L
      170 cm5’7”  to 183 cm6’0”
bike diagram
  XXSXSSML
Seat Tube Length (mm) (inch)38515.241016.144517.548018.951520.3
Seat Tube Angle (degrees)75.0°75.0°74.5°74.0°73.5°
Top Tube Length (mm) (inch)49719.65072052420.654021.355521.9
Head Tube Length (mm) (inch)1003.91154.51305.11505.91706.7
Head Tube Angle (degrees)70.5°71.0°72.0°72.5°72.5°
Fork Rake (mm) (inch)491.9491.9451.8451.8451.8
Trail (mm) (inch)692.7662.6642.5602.4602.4
Wheelbase (mm) (inch)9663897238.397438.398138.699139
Chain Stay Length (mm) (inch)40515.940515.940515.940515.940515.9
Bottom Bracket Drop (mm) (inch)702.8702.8682.7682.7682.7
Stack (mm) (inch)49219.45082052520.754621.556522.2
Reach (mm) (inch)36514.437114.637814.938415.138815.3
Stand Over Height (mm) (inch)66426.167926.770127.672828.775429.7
Handlebar Width (mm) (inch)36014.236014.23801540015.742016.5
Stem Length (mm) (inch)803.1803.1903.51003.91104.3
Crank Length (mm) (inch)1656.51656.51706.71706.7172.56.8
Wheel Size 700C700C700C700C700C

Technologies

Advanced Composite Technology
Compact Road Design
PowerCore
OverDrive
RideSense Ready
Variant Seatpost
