Designed using Liv’s 3F Design Philosophy to maximize women’s muscle performance and efficiency
{{ item.Quote }}
Epic rides are now within reach - access the mountainous adventures of your dreams.
Key Performance Factors
Accessible and Reliable
Access to new trails and experiences is easily within reach thanks to the 180 km range of the ultra-reliable EnergyPak Smart 500Wh battery. The SyncDrive Sport motor, powered by Yamaha, delivers 70Nm of torque and has six speed control settings, ranging from 50-350%.
Integrated Design
Along with the integrated speed sensor, the EnergyPak Smart battery is integrated into the downtube and easily accessible.
Smooth Riding
Smart Assist Technology smooths out bumps along the ride, and RideControl ONE controls are easy to access and use on the handlebar to select pedal assist functions and view battery levels.
Range
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
EnergyPak 500 / SyncDrive Sport
Why We Love It
Whether you’re looking to ride faster, go farther or gain fitness, Vall E+ will take you beyond boundaries. Adjust your riding mode with the handlebar-mounted RideControl ONE, which connects to an app so you can see your ride information, such as battery level and support level. Vall E+ features the SyncDrive Sport motor, which offers six levels of assistance for speed control. Designed to match you with just the right wheel size for balance and maneuverability, XS and S frames come with 27.5-inch wheels, while M frames come with 29-inch wheels. Combining a smooth, integrated battery and capable motor design, Liv’s 3F Design Philosophy provides an efficient ride. A 120mm suspension fork and seamless power integration allow you to get to the trailhead faster and climb steeper routes, so you can enjoy the vistas and descents.
Highlights
Techs & Features
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
Hybrid Cycling Technology
Hybrid Cycling Technology is a system that combines electric power with human power to produce the most efficient, powerful and natural E-bike riding experience. It’s a seamless extension of a rider’s own power that sets Liv and Giant E-bikes apart from other “electric” bicycles. The system consists of four key innovative technologies that work in unison with your own body’s power output—a seamless extension of your own capabilities.
SyncDrive Sport
Innovation, manufacturing expertise and a motor system powered by Yamaha all combine to expand any rider’s abilities. SyncDrive Sport offers three support modes and is equipped on E-bikes that are used for both everyday riding and for more demanding off-road riding. This small mid-drive motor delivers a massive maximum 70Nm of torque and is widely acclaimed for its performance and reliability.

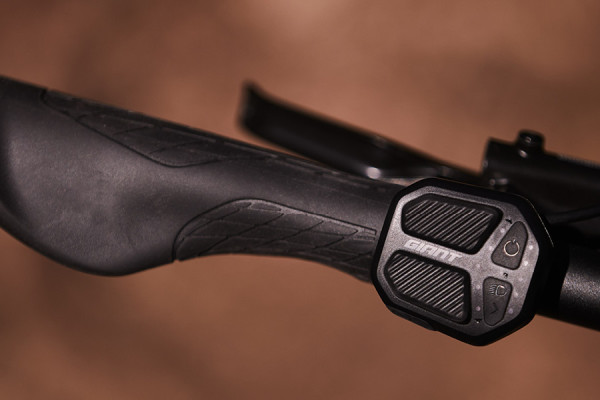

RideControl ONE
RideControl ONE takes your E-bike riding experience to new levels with integrated button controls and a clean handlebar free of any display. The E-bikes equipped with RideControl ONE can connect with the Liv and Giant E-bike App to function as your E-bike display
Geometry
| XS | S | M | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 36514.4 | 40515.9 | 44517.5 |
| B | Seat Tube Angle (degrees) | 74.0° | 73.5° | 73.0° |
| C | Top Tube Length (mm) (inch) | 56022 | 56522.2 | 59523.4 |
| D | Head Tube Length (mm) (inch) | 1104.3 | 1154.5 | 1054.1 |
| E | Head Tube Angle (degrees) | 68.0° | 68.0° | 68.0° |
| F | Fork Rake (mm) (inch) | 421.7 | 421.7 | 461.8 |
| G | Trail (mm) (inch) | 103.84.1 | 103.84.1 | 99.53.9 |
| H | Wheelbase (mm) (inch) | 113044.5 | 113044.5 | 116145.7 |
| I | Chain Stay Length (mm) (inch) | 47518.7 | 47518.7 | 47518.7 |
| J | Bottom Bracket Drop (mm) (inch) | 502 | 502 | 451.8 |
| K | Stack (mm) (inch) | 62124.4 | 62624.6 | 62524.6 |
| L | Reach (mm) (inch) | 38215 | 38015 | 40415.9 |
| M | Stand Over Height (mm) (inch) | 68026.8 | 71028 | 75029.5 |
| N | Handlebar Width (mm) (inch) | 69027.2 | 69027.2 | 75029.5 |
| O | Stem Length (mm) (inch) | 401.6 | 502 | 502 |
| P | Crank Length (mm) (inch) | 1656.5 | 1656.5 | 1706.7 |
| Q | Wheel Size | 27.5+ | 27.5+ | 29" |
All specifications listed are subject to change without notice.
