Designed using Liv’s 3F Design Philosophy to maximize women’s muscle performance and efficiency
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

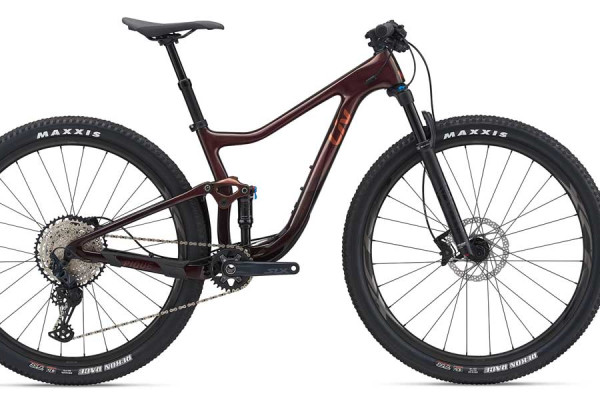

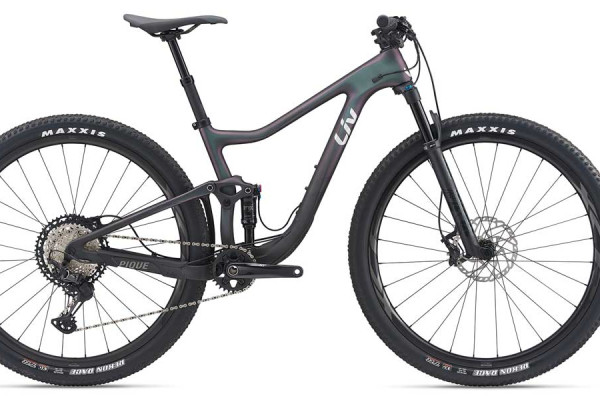

Pique Advanced Pro 29 1
€5,899
Fast and flowy across diverse terrain, Pique Advanced Pro 29 is the XC bike that's designed for speed.
Key Performance Factors
Fast
Lightweight and stiff full Advanced-Grade Composite frame and wheelset.
Premium Outlook
Inspired colour and graphics created with lightweight paint and internal cable routing for a sleek look.
Effective
Tuned suspension for women, by women, cross-country specific dropper seatpost and a cross-country build that gets you to the finish first.
Why We Love It
The Pique Advanced Pro 29 was built for speed, creating a new ultra-lightweight Advanced-Grade Composite frame with enhanced stiffness and dialed cross-country geometry, created specifically for women. With remote lockout, Maestro Suspension Technology and a cross-country specific dropper post, the Pique Advanced Pro 29 is built with the racer in mind. The 100 mm front and rear suspension was tuned for women, by women, creating optimal performance for a smooth and efficient ride.
Highlights
1
3F Design Philosophy
2
Advanced-Grade Composite Frame
Lightweight Advanced-Grade Composite frame tuned specifically for women
3
Maestro Suspension System
100mm of rear travel, powered with Liv and Giant's proven trunnion-mounted Maestro Suspension System
4
100mm Fork
100mm of travel up front
5
29-Inch Wheels
Featuring 29-inch wheels and a specific cross country geometry for optimized speed, acceleration, and cornering
6
Boost Hub Spacing
Boost 15x110 [F], 12X148 [R] hub spacing improves stiffness, trail handling and tire clearance
7
Advanced Forged Composite Technology
An upper rocker arm created with Advanced Forged Composite Technology for increased stiffness, durability, and lighter weight
8
XC-Specific Dropper Post
The Pique 29 series includes a 30.9mm diameter cross-country specific dropper seat post to enable the rider to lower her center of gravity on steeper terrain
9
Tubeless
Pique Advanced Pro 29 comes tubeless out-of-the-box, so you can run lower tire pressures for added traction
Techs & Features
Advanced Composite Technology
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
Advanced Forged Composite Technology
A state-of-the-art, high-pressure molding process used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar aluminum components.
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Geometry
| XS | S | M | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 39015.4 | 40616 | 44517.5 |
| B | Seat Tube Angle (degrees) | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (mm) (inch) | 56522.2 | 58022.8 | 59523.4 |
| D | Head Tube Length (mm) (inch) | 903.5 | 953.7 | 1003.9 |
| E | Head Tube Angle (degrees) | 68.5° | 68.5° | 68.5° |
| F | Fork Rake (mm) (inch) | 512 | 512 | 512 |
| G | Trail (mm) (inch) | 92.93.6 | 92.93.6 | 92.93.6 |
| H | Wheelbase (mm) (inch) | 110043.3 | 111543.9 | 113144.5 |
| I | Chain Stay Length (mm) (inch) | 43817.2 | 43817.2 | 43817.2 |
| J | Bottom Bracket Drop (mm) (inch) | 451.8 | 451.8 | 451.8 |
| K | Stack (mm) (inch) | 57822.8 | 58323 | 58723.1 |
| L | Reach (mm) (inch) | 39915.7 | 41316.3 | 42716.8 |
| M | Stand Over Height (mm) (inch) | 69327.3 | 70327.7 | 72628.6 |
| N | Handlebar Width (mm) (inch) | 72028.3 | 72028.3 | 74029.1 |
| O | Stem Length (mm) (inch) | 502 | 502 | 602.4 |
| P | Crank Length (mm) (inch) | 1656.5 | 1706.7 | 1706.7 |
| Q | Wheel Size | 29" | 29" | 29" |
All specifications listed are subject to change without notice.
