Designed using Liv's 3F Design Philosophy to best harness avwoman's riding style.
{{ item.Quote }}

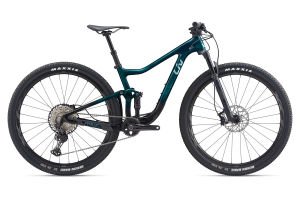

Fast and flowy across diverse terrain, Pique Advanced Pro 29er is the XC bike thats designed for speed.
The Pique Advanced Pro 29er was built for speed using Liv’s 3F Design Philosophy, creating a new Advanced carbon frame with enhanced stiffness and dialled cross-country geometry. With remote lockout, Maestro suspension technology and a cross-country specific dropper post, the Pique Advanced Pro 29 is built with the racer in mind. The 100 mm front and rear suspension, tuned for women, by women, creating optimal suspension for a smooth and playful ride.
Key Performance Factors
Fast
Lightweight and stiff full carbon frame with carbon handlebar and wheel system.
Premium Outlook
Inspired C&G and internal cable routing for a sleek look.
Effective
Tuned suspension, cross-country specific dropper seatpost and build that gets you to the finish first.
Why We Love It
Cross country riding just got a lot faster with the introduction of the Pique Advanced Pro 29. This new ultra-lightweight frame design and build prioritises your speed by giving you a bike that is stiff, efficient and capable.
Highlights
Techs & Features
Advanced Composite Technology
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 148 cm4’10”
163 cm5’4”
- S
- 158 cm5’2” 169 cm5’7”
- M
- 164 cm5’5” 175 cm5’9”
| XS | S | M | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 39015.4 | 40616 | 44517.5 |
| B | Seat Tube Angle (degrees) | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (mm) (inch) | 56522.2 | 58022.8 | 59523.4 |
| D | Head Tube Length (mm) (inch) | 903.5 | 953.7 | 1003.9 |
| E | Head Tube Angle (degrees) | 68.5° | 68.5° | 68.5° |
| F | Fork Rake (mm) (inch) | 512 | 512 | 512 |
| G | Trail (mm) (inch) | 92.93.6 | 92.93.6 | 92.93.6 |
| H | Wheelbase (mm) (inch) | 110043.3 | 111543.9 | 113144.5 |
| I | Chain Stay Length (mm) (inch) | 43817.2 | 43817.2 | 43817.2 |
| J | Bottom Bracket Drop (mm) (inch) | 451.8 | 451.8 | 451.8 |
| K | Stack (mm) (inch) | 57822.8 | 58323 | 58723.1 |
| L | Reach (mm) (inch) | 39915.7 | 41316.3 | 42716.8 |
| M | Stand Over Height (mm) (inch) | 69327.3 | 70327.7 | 72628.6 |
| N | Handlebar Width (mm) (inch) | 72028.3 | 72028.3 | 74029.1 |
| O | Stem Length (mm) (inch) | 502 | 502 | 602.4 |
| P | Crank Length (mm) (inch) | 1656.5 | 1706.7 | 1706.7 |
| Q | Wheel Size | 29" | 29" | 29" |
All specifications listed are subject to change without notice.
