Designed using Liv’s 3F Design Philosophy to maximize women’s muscle performance and efficiency
{{ item.Quote }}

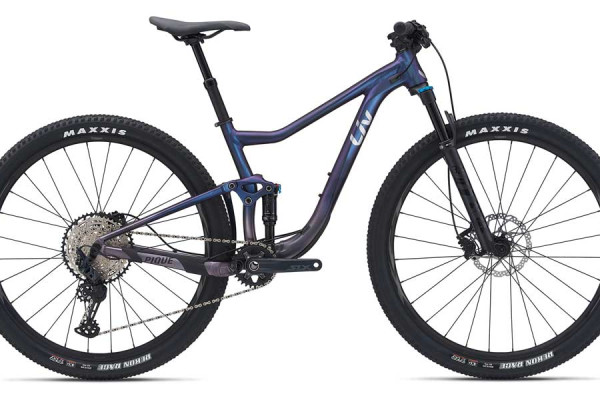

Fast and flowy across diverse terrain, Pique 29 is the XC bike that's designed for speed.
Key Performance Factors
Fast
ALUXX SL-Grade aluminium frame built to offer a lightweight and stiff bike at a lower price.
Premium Outlook
Inspired colour and graphics created with lightweight paint and internal cable routing for a sleek look.
Effective
Tuned suspension for women, by women, cross-country specific dropper seatpost and a cross-country build that lets you roll fast with confidence.
Why We Love It
This 29er has cross-country geometry designed specifically for women with a lightweight frame with a PowerCore bottom bracket for ideal pedaling efficiency to conquer those serious climbs. Pique 29 offers 100mm of front and rear travel, tuned for women and on the leading Maestro Suspension Technology. Complete with a dropper post, the Pique 29 is built for cross-country racers and riders alike. The integrated design accommodates downtube water bottles on all size frames, XS-L. Built with a lightweight ALUXX SL-Grade aluminium frame, the Pique 29 offers a premium ride at a winning price. The 29-inch wheels ensure bike handling is stable and fast, boasts itself to precision cornering and bump-reducing qualities.
Highlights
Techs & Features
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
Advanced Forged Composite Technology
A state-of-the-art, high-pressure molding process used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar aluminum components.
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Geometry
| XS | S | M | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 39015.4 | 40616 | 44517.5 |
| B | Seat Tube Angle (degrees) | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (mm) (inch) | 56522.2 | 58022.8 | 59523.4 |
| D | Head Tube Length (mm) (inch) | 903.5 | 953.7 | 1003.9 |
| E | Head Tube Angle (degrees) | 68.5° | 68.5° | 68.5° |
| F | Fork Rake (mm) (inch) | 512 | 512 | 512 |
| G | Trail (mm) (inch) | 92.93.6 | 92.93.6 | 92.93.6 |
| H | Wheelbase (mm) (inch) | 110043.3 | 111543.9 | 113144.5 |
| I | Chain Stay Length (mm) (inch) | 43817.2 | 43817.2 | 43817.2 |
| J | Bottom Bracket Drop (mm) (inch) | 451.8 | 451.8 | 451.8 |
| K | Stack (mm) (inch) | 57822.8 | 58323 | 58723.1 |
| L | Reach (mm) (inch) | 39915.7 | 41316.3 | 42716.8 |
| M | Stand Over Height (mm) (inch) | 69427.3 | 70327.7 | 72428.5 |
| N | Handlebar Width (mm) (inch) | 72028.3 | 72028.3 | 74029.1 |
| O | Stem Length (mm) (inch) | 502 | 502 | 602.4 |
| P | Crank Length (mm) (inch) | 1656.5 | 1706.7 | 1706.7 |
| Q | Wheel Size | 29" | 29" | 29" |
All specifications listed are subject to change without notice.
