A lightweight Advanced-grade composite frame is hand-crafted in-house to provide optimally tuned stiffness and compliance for female riders

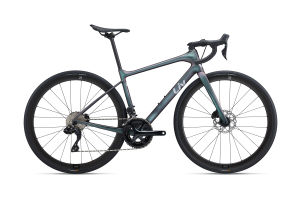

Avail Advanced 1
€4,249
Ideal for both epic solo adventures and group road rides, the Avail Advanced is lightweight and comfortable.
Key Performance Factors
Built for Endurance
Advanced-grade composite and OverDrive provide unprecedented pedaling and cornering stiffness on an endurance geometry for all-day riding.
Control
Combines the weight-savings and stability of a compact road frame design with powerful disc brakes for expert handling and control, no matter the weather and road conditions.
Adaptable Comfort
The Avail tackles the roads less traveled with larger-size tire compatibility, and a D-Fuse seatpost to soak up bumps.

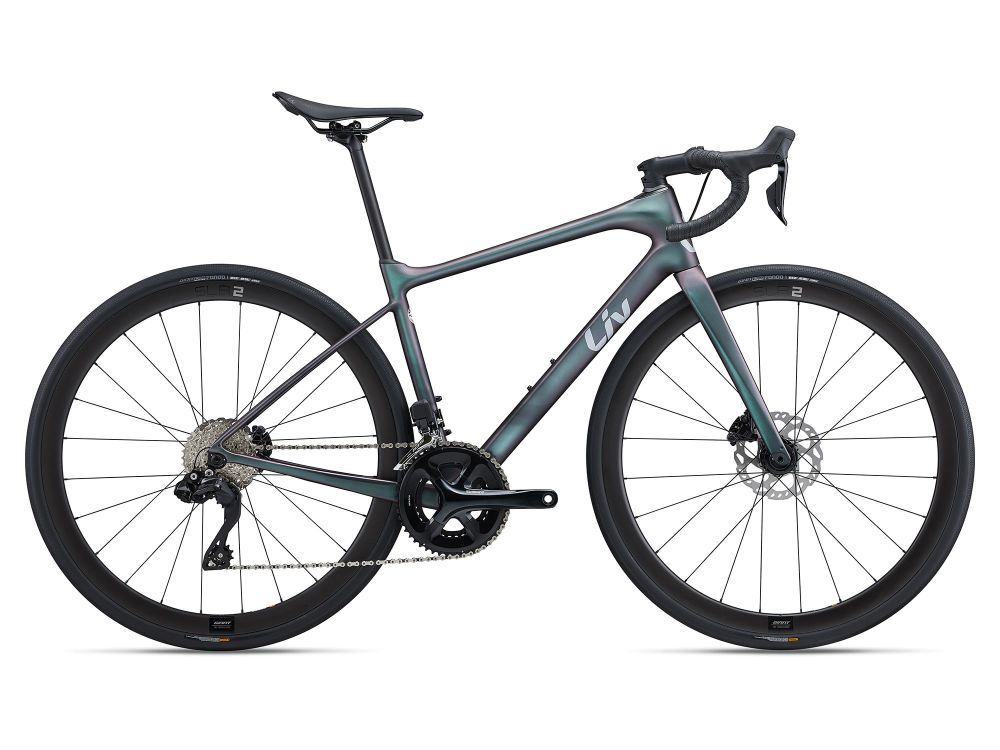

Highlights
1
Advanced-Grade Composite Frame
2
Advanced-Grade Composite Fork
An Advanced-grade composite fork offers low weight and precise steering
3
OverDrive
Our oversized fork steerer tube technology is specifically engineered to deliver precise front-end steering performance. Featuring oversized headset bearings (1-1/4” lower and 1-1/8” upper) made of stainless steel for added longevity, along with a tapered steerer tube, this system delivers the ideal balance of steering stiffness and responsiveness.
4
Compact Road Design
Compact Road Design creates a lighter, stiffer, smoother ride with better fit
5
PowerCore
An oversized bottom bracket/chainstay area features a fully integrated, 92-millimeter wide bottom bracket design. Asymmetric chainstays provide additional stiffness on the drive side and stability on the non-drive side
6
Disc Brake Equipped
Disc brakes for safe stopping power
7
Tubeless
Integrated tubeless wheelsystem and tires deliver improved efficiency, comfort and control
8
Internal Seatpost Clamp
Internal seatpost clamp for confident clamping with aesthetic appeal
9
D-Fuse Seatpost
Proprietary seatpost features a D-shaped composite shaft to absorb road vibrations without the need for mechanical devices or special inserts. Optimized carbon layup helps increase overall compliance, resulting in a smoother ride quality.
Techs & Features
Advanced Composite Technology
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
Compact Road Design
When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
D-Fuse Seatpost
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
Internal Seatpost Clamp
A lightweight, all-internal seatpost locking mechanism provides confident clamping force with clean performance and aesthetics.
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 153 cm5’0”
162 cm5’4”
- S
- 158 cm5’2” 169 cm5’7”
- M
- 165 cm5’5” 174 cm5’9”
| XS | S | M | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 40015.7 | 43517.1 | 47018.5 |
| B | Seat Tube Angle (degrees) | 74.5° | 74.5° | 74.0° |
| C | Top Tube Length (mm) (inch) | 51520.3 | 52520.7 | 54021.3 |
| D | Head Tube Length (mm) (inch) | 1254.9 | 1455.7 | 1656.5 |
| E | Head Tube Angle (degrees) | 70.5° | 71.5° | 72.0° |
| F | Fork Rake (mm) (inch) | 502 | 502 | 502 |
| G | Trail (mm) (inch) | 71.32.8 | 64.72.5 | 61.52.4 |
| H | Wheelbase (mm) (inch) | 99539.2 | 99839.3 | 100439.5 |
| I | Chain Stay Length (mm) (inch) | 42016.5 | 42016.5 | 42016.5 |
| J | Bottom Bracket Drop (mm) (inch) | 753 | 732.9 | 732.9 |
| K | Stack (mm) (inch) | 52720.7 | 54721.5 | 56822.4 |
| L | Reach (mm) (inch) | 36814.5 | 37314.7 | 37714.8 |
| M | Stand Over Height (mm) (inch) | 68426.9 | 71628.2 | 74529.3 |
| N | Handlebar Width (mm) (inch) | 38015 | 40015.7 | 40015.7 |
| O | Stem Length (mm) (inch) | 702.8 | 803.1 | 903.5 |
| P | Crank Length (mm) (inch) | 1656.5 | 1706.7 | 1706.7 |
| Q | Wheel Size | 700C | 700C | 700C |
All specifications listed are subject to change without notice.
