Újdonság

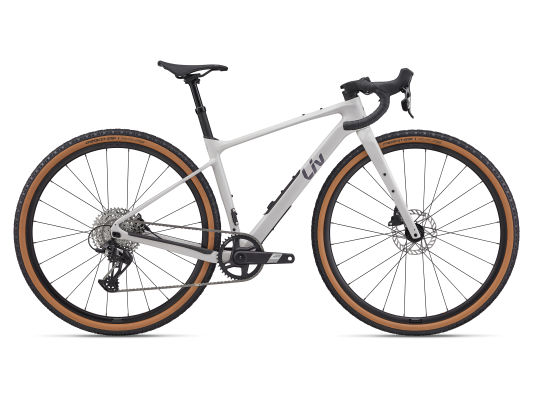

Devote Advanced 1

1 333 900 Ft

Similar Products

Best For: Gravel

Devote Advanced 2

1 259 900 Ft

The Devote Advanced is your go-to for going fast, wherever the gravel muse may call you. Balancing speed and ruggedness, this versatile bike is ready for race day, rest day, and multi-day adventures.

Meghatározó jellemzők

Ultralight Agility

An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.

Superior Compliance and Control

The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. Select models also feature the Contact D-Fuse seatpost and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.

Unmatched Versatility

Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.

Highlights

Devote Advanced with interactive tooltips

Technológiák

Advanced Composite Technology
D-Fuse Seatpost
OverDrive
Tubeless System

Méretválasztás és geometria

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      150 cm4’11”  to 163 cm5’4”
  • S
      158 cm5’2”  to 169 cm5’7”
  • M
      164 cm5’5”  to 175 cm5’9”
  • L
      170 cm5’7”  to 181 cm5’11”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSML
  SHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONG
ANyeregcső hossz (mm) (inch)39015,442016,546518,350019,7
BNyeregcső szög (degrees)74,5° | 74,4°74,5° | 74,4°74,5° | 74,4°74,5° | 74,4°
CFelsőcső hossz (mm) (inch)52520,7 | 52520,753521,1 | 53521,154521,5 | 54521,555521,9 | 55521,9
DFejcső hossz (mm) (inch)903,51104,31405,51606,3
EFejcsőszög (degrees)70,0° | 69,9°70,5° | 70,4°71,0° | 70,9°71,0° | 70,9°
FFork Rake (mm) (inch)502502502502
GNyom (mm) (inch)78,43,1 | 823,2753 | 78,53,171,62,8 | 75,1371,62,8 | 753
HKeréktávolság (mm) (inch)101239,8 | 102240,2101940,1 | 102940,5102640,4 | 103640,8104341,1 | 105241,4
ILáncvilla hossz (mm) (inch)42516,7 | 43517,142516,7 | 43517,142516,7 | 43517,143016,9 | 44017,3
JKözépcsapágy esés (mm) (inch)803,1 | 813,2803,1 | 813,2803,1 | 813,2803,1 | 813,2
KStack (mm) (inch)52320,6 | 52420,654421,4 | 54521,557422,6 | 57522,659323,3 | 59423,4
LReach (mm) (inch)38015 | 37914,938415,1 | 38315,138615,2 | 38515,239115,4 | 38915,3
MÁtlépési magasság (mm) (inch)68126,8 | 68827,170827,9 | 71528,174829,4 | 75529,777930,7 | 78630,9
NKormányszélesség (mm) (inch)40015,740015,742016,542016,5
OSzár hossza (mm) (inch)502602,4702,8803,1
PHajtókar hossz (mm) (inch)1656,51706,7172,56,8172,56,8
QKerékméret 700700700700
Felszereltség
  • Méretek
    XS, S, M, L
  • Szín
    Ice Age
  • Váz
    Advanced-grade composite, 12x142mm thru-axle, flat mount disc, flip chip – dropout, integrated down tube storage, integrated cable routing
  • Villa
    Advanced-grade composite, full-composite OverDrive steerer, stainless steel bearings, 12mm thru-axle, flat mount disc
  • Rugóstag
    N/A
  • Kormány
    Giant Contact XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, alloy XS: 400mm, S: 400mm, M: 420mm, L: 420mm
  • Markolat
    Liv All Condition
  • Stucni
    Giant Contact AeroLight, -10 degree, alloy XS: 50mm, S: 60mm, M: 70mm, L: 80mm
  • Nyeregcső
    Post Moderne, dropper, 30mm suspension XS: 75mm, S: 75mm, M: 75mm, L: 100mm
  • Nyereg
    Liv Approach
  • Pedálok
    N/A
  • Váltókarok
    SRAM Apex, 1x12
  • Első váltó
    N/A
  • Hátsó váltó
    SRAM Apex XPLR
  • Fékek
    SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Fékkarok
    SRAM Apex hydraulic, left lever dropper switch
  • Fogaskoszorú
    SRAM PG-1231 D1 XPLR, 12-speed, 11x44
  • Lánc
    SRAM Apex 12SCN-APX-D1
  • Hajtómű
    SRAM Apex 1 Wide, 40t XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm
  • Középcsapágy
    SRAM DUB, press fit
  • Felnik
    Giant P-X2 Disc wheelset, alloy
  • Agyak
    Giant alloy, 12mm thru-axle
  • Küllők
    Sapim
  • Külsők
    Maxxis Rambler, 700x45c, tubeless
  • Kiegészítők
    Giant 1x chain guide, tubeless prepared, 53mm max tire size in long flip chip position, 45mm max tire size in short flip chip position, ISC clamp, integrated down tube storage bag
  • Súly
    Mennyi a kerékpár súlya? Gyakran feltett kérdés, amelyre a válasz nem egyértelmű, hisz a méréshez nincs egységes szabvány. A súly nagyban függ a vázmérettől, a felszereltségtől stb. A legbiztosabb inforációt a helyi szaküzlet tud adni.

A felsorolt leírások előzetes értesítés nélkül is változhatnak.

A felsorolt leírások előzetes értesítés nélkül is változhatnak.
