Best For: XC

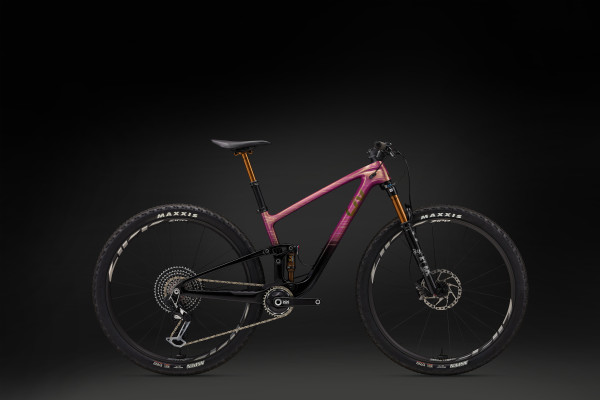

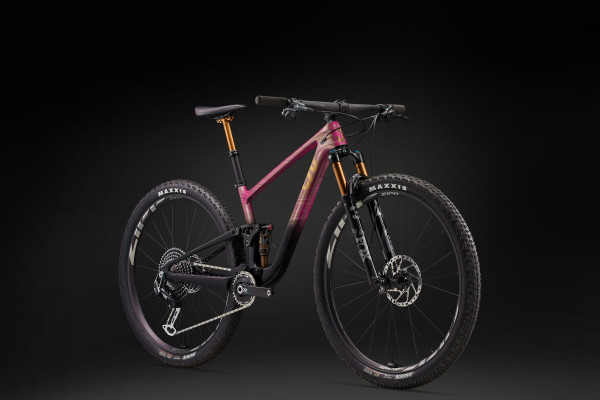

Pique Advanced 29 1
Now 297g lighter*, the Advanced-grade composite frameset also features greater stiffness for efficient power transfer, a massive advantage on climbs and at speed. New FlexPoint Pro suspension minimizes weight by minimizing parts. And a shorter chainstay offers greater agility for maneuvering switchbacks, and snappy acceleration for seizing every overtake opportunity. *Compared to previous generation
With its patented, linkage-driven, single-pivot design, the new FlexPoint Pro suspension delivers 115mm of smooth, active rear-wheel travel, so you can maximize power and traction over ever-changing and uber-challenging terrain. Combined with a slacker head tube angle and 120mm of front suspension, this setup ensures you're equipped to dominate technical descents.
Roll over just about anything on 29-inch wheels designed for stability and efficiency. Updated geometry provides a longer reach, putting you in a lower and more aggressive body position. A steeper seat tube angle increases pedaling efficiency on even the steepest climbs. And the modified cockpit includes a 35mm composite handlebar and alloy stem for steering precision.
High-performance grade raw carbon material is used to produce this custom frame material in our own composite factory. The mainframe and rear swingarm are handcrafted with monocoque construction for optimized stiffness-to-weight and an ultra-responsive ride quality. The new frameset is 297g lighter, with 6-percentage torsional and 10-percent pedaling stiffness improvement.

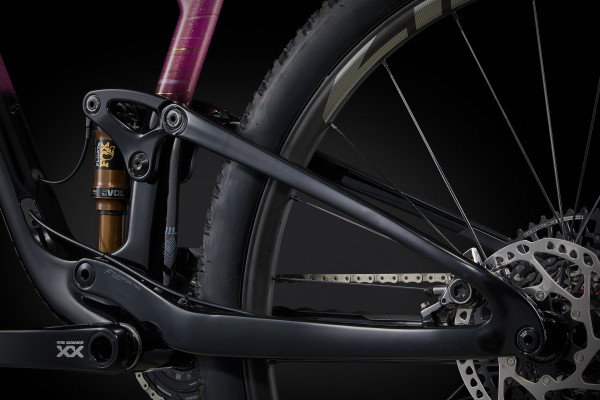

FlexPoint Pro is a cutting-edge rear suspension technology designed for cross-country bikes, characterized by its patented, linkage-driven, single-pivot system that provides 115mm of active rear-wheel travel. This innovative design minimizes weight and isolates forces, leading to improved control, increased traction, and more efficient power transfer. This translates to less fatigue, consistent performance across varied terrains, and an enhanced ability to tackle challenging climbs and technical descents with confidence and speed. Learn more!
Our oversized fork steerer tube technology is specifically engineered to deliver precise front-end steering performance. With oversized headset bearings (1-1/2” lower and 1-1/8” upper) and tapered steerer tube, this system works together to provide the ideal balance of steering stiffness and responsiveness.
The upper rocker arm is crafted using Advanced Forged Composite Technology which offers increased stiffness, durability, and lighter weight.
The massively oversized bottom bracket/chainstay area features a fully integrated, 92mm bottom bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Featuring 29-inch wheels with 2.4-inch tire clearance for maximizing speed, acceleration, and maneuverability.
Boost 15x110 [F], 12x148 [R] hub spacing, combined with Universal Derailleur Hanger (UDH) compatibility, enhances stiffness, trail handling, tire clearance, and drivetrain durability.
Lightweight, stiff, and durable carbon wheels and tubeless tires deliver race-ready efficiency and precision handling.
New design for internal cable routing offers a clean look and performance for derailleur, brake, and dropper post cables and housing.

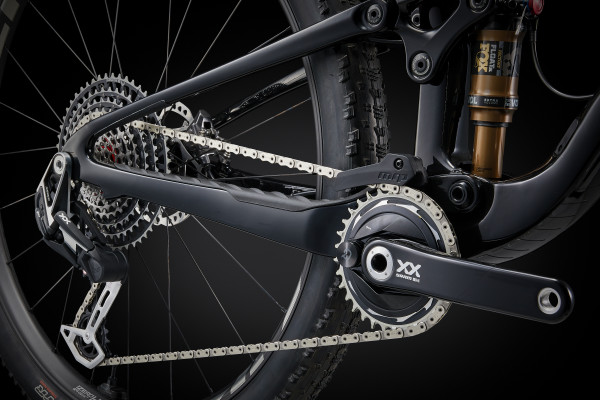

All-new Giant/MRP chain guide reduces the chance of the chain falling off the chainring on rough, technical XC terrain.
The 3M clear foil down tube protector is a durable adhesive film that safeguards your bike's down tube from scratches, rock chips, and debris damage, ensuring a pristine appearance and increased longevity.
The chainstay protector is a durable cover applied to your chainstay to prevent damage from chain slap and other impacts, ensuring a quieter and more secure ride.
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
A state-of-the-art, high-pressure molding process used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar aluminum components.
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
A proven “single-pivot” design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
163 cm5’4” 169 cm5’7” 175 cm5’9” 181 cm5’11”
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | Dužina cijevi sjedala (mm) (inch) | 38015 | 41016,1 | 44017,3 | 47018,5 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 2038 | 2339,2 | 26310,4 | 29311,5 |
| B | Kut cijevi sjedala (degrees) | 76,0° | 76,0° | 76,0° | 76,0° |
| C | Dužina gornje cijevi (mm) (inch) | 55521,9 | 57022,4 | 58523 | 60023,6 |
| D | Dužina prednje cijevi (mm) (inch) | 903,5 | 953,7 | 1054,1 | 1154,5 |
| E | Kut vilice (degrees) | 67,0° | 67,0° | 67,0° | 67,0° |
| F | Zakrivljenost vilice (offset) (mm) (inch) | 441,7 | 441,7 | 441,7 | 441,7 |
| G | Staza (mm) (inch) | 112,24,4 | 112,24,4 | 112,24,4 | 112,24,4 |
| H | Međuosovinski razmak kotača (mm) (inch) | 112144,1 | 113744,8 | 115445,4 | 117046,1 |
| I | Dužina od osovine pogona do osovine zadnjeg kotača (CS) (mm) (inch) | 43517,1 | 43517,1 | 43517,1 | 43517,1 |
| J | Položaj osovine pogona (mm) (inch) | 451,8 | 451,8 | 451,8 | 451,8 |
| K | Vertikalna dužina od osovine pogona do glave okvira (stack) (mm) (inch) | 59923,6 | 60323,7 | 61224,1 | 62224,5 |
| L | Horizontalna dužina od osovine pogona do glave okvira (reach) (mm) (inch) | 40616 | 42016,5 | 43217 | 44517,5 |
| M | Prekoračna visina (mm) (inch) | 74829,4 | 76730,2 | 77030,3 | 79131,1 |
| N | Širina volana (mm) (inch) | 76029,9 | 76029,9 | 76029,9 | 76029,9 |
| O | Dužina lule volana (mm) (inch) | 602,4 | 602,4 | 702,8 | 702,8 |
| P | Dužina poluge pedale (mm) (inch) | 1656,5 | 1706,7 | 1706,7 | 1756,9 |
| Q | Veličina kotača | 29" | 29" | 29" | 29" |
Sve navedene specifikacije podložne su promjeni bez prethodne najave.
