This high-performance, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset features youth-specific trail geometry to minimize overall weight and motivate young riders as they tackle steep, technical climbs.
New
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

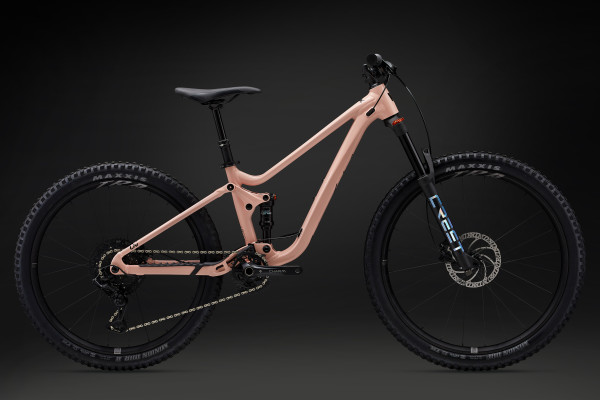

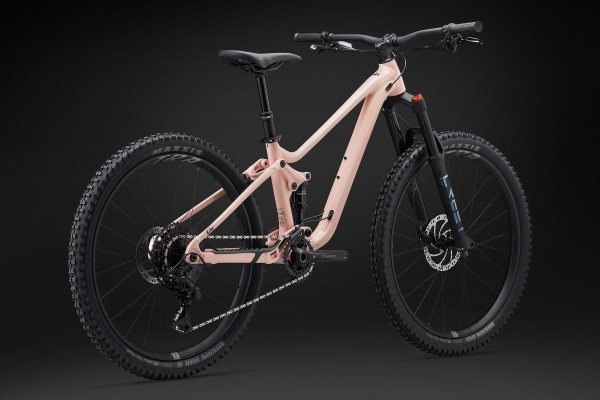

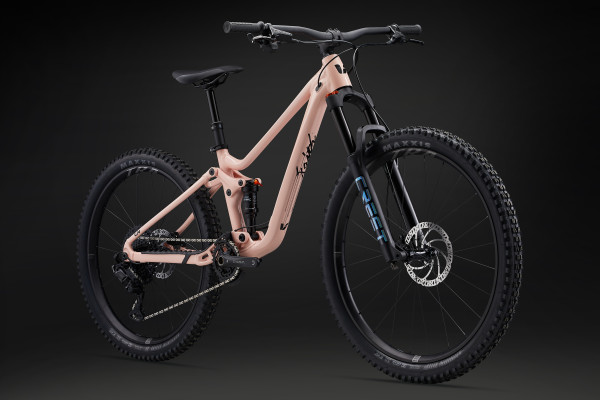

Faith Liv
DREAM BIG
Built to meet the demands of young shredders, the Liv Faith provides a performance full suspension platform to fuel limitless possibilities.
Ključni faktori
YOUTH-TUNED SUSPENSION
The Crest FloTrac Lite Shock delivers 135mm of smooth travel tuned specifically for lighter-weight riders, up front, the 140mm Crest SL FloTune Lite Fork handles rocks, roots, and ruts. The new Unified Suspension Setup tailors to the rider's body weight, optimal air pressure, and damping clicks are predefined for both the fork and shock to create smooth balance and control. Our dedication to youth optimization guarantees effortless setup and the best youth fit - continuing Liv's commitment to supporting the next generation of female riders.
AGILE AND EFFICIENT
An ALUXX SL aluminum frame with youth-specific trail geometry provides unmatched robust efficiency, combined with quality lightweight components that minimize weight to help young riders tackle challenging terrain. The FlexPoint single-pivot design maximizes pedaling efficiency and delivers capable control, to help kids stay focused even on bumpy terrain.
OFF-ROAD CONTROL
With the wide-wall technology of TRA WheelSystem, young riders can enjoy enhanced traction through lower tire pressure, increasing grip and stability. For smaller riders, 27.5-inch front and 26-inch rear wheels bring burly handling, ready for progression. A dropper seatpost makes it easy to optimize riding position while climbing or descending, giving them more control to conquer the trail.
Istaknuto
1
ALUXX SL ALUMINUM
2
FLEXPOINT
The FlexPoint rear suspension delivers 135mm of travel tuned specifically for lighter weight young riders. The linkage-driven, single-pivot design eliminates the need for additional complexity, which helps improve durability.
3

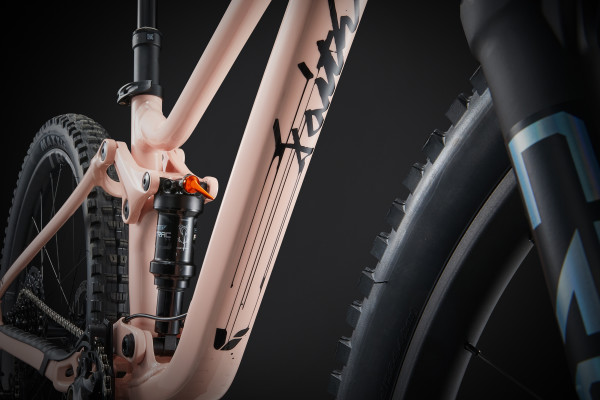

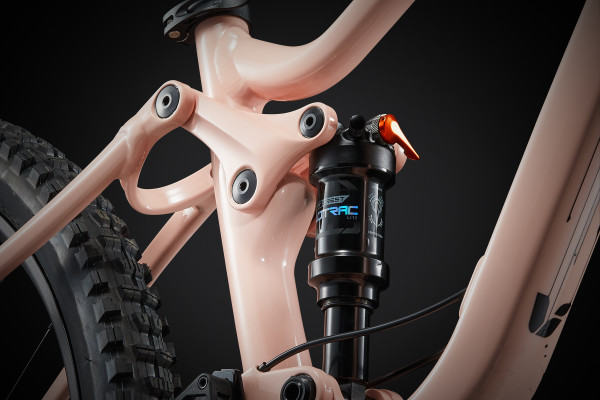

CREST FLOTRAC LITE SHOCK
Custom-tuned rear shock engineered for lightweight riders. Low-friction damper and floating compression valve technology deliver a smooth, active performance that gives lighter riders more traction and control on the trail.
4

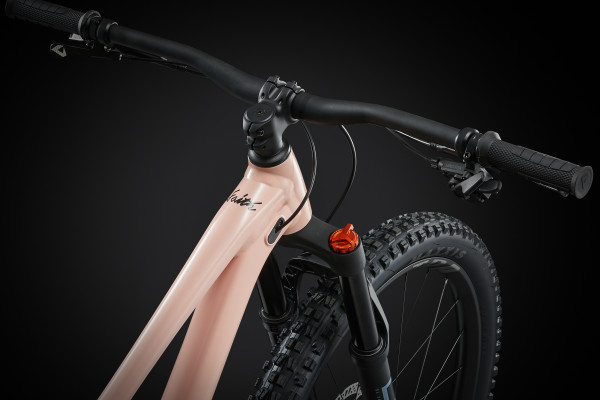

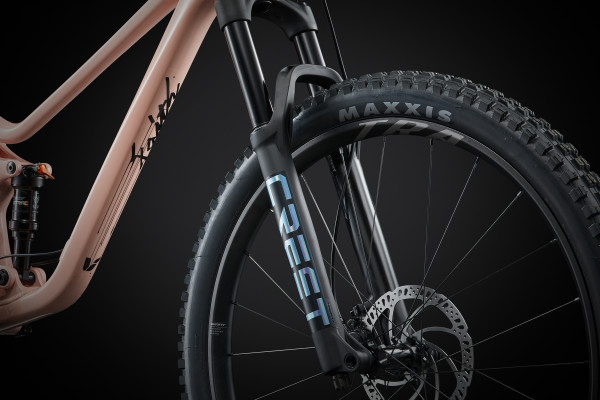

CREST SL FLOTUNE LITE FORK
Lightweight trail fork with an arch-bridge lower for increased stiffness and minimal weight gives young riders a smooth, confident ride on technical terrain. The Low-friction chassis and FloTune Lite damper is tuned specifically for riders weighing under 62kg.
5

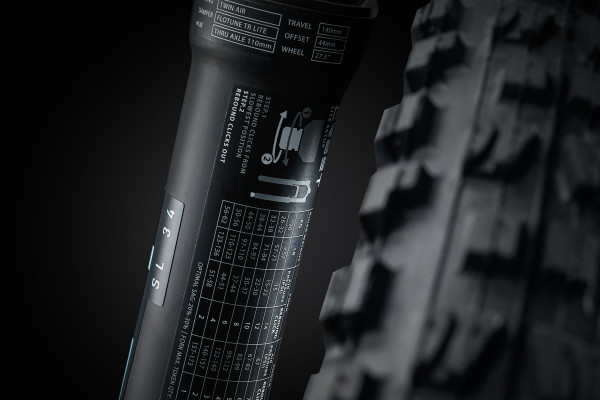

UNIFIED SUSPENSION SETUP
Optimal air pressure and damper setting recommendations, based on rider weight, are predetermined and presented in easy-to-read graphic displays on the bike itself—one on the rear shock and one on the fork—and also online.
6
MIXED TRA WHEELSYSTEM
The combination of a 26-inch rear wheel aimed at lightweight agility and a 27.5-inch front wheel for improved rollover capabilities gives young riders the perfect combination of stability and control. Wide Guard technology adds rim strength and reduces the risk of wheel damage and tire punctures.
7

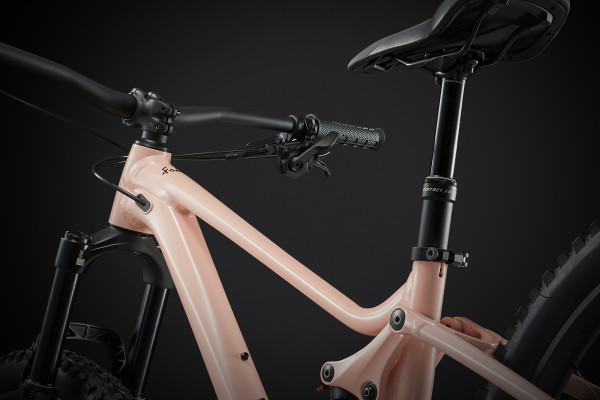

DROPPER SEATPOST

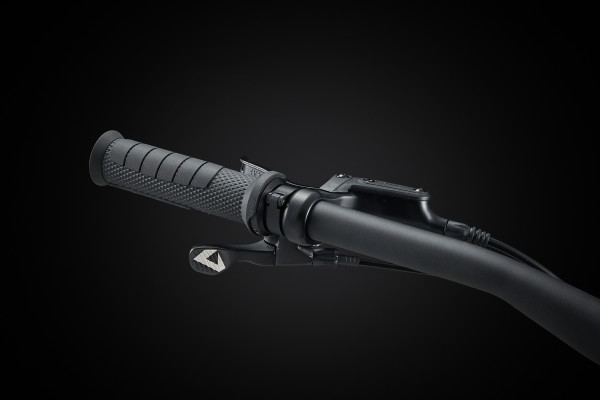

The Giant Contact Switch AT Lite has a lower-pressure cartridge that makes it easier to engage the lever and requires less weight to lower the saddle. With adjustable travel settings and an innovative rotating cable actuator for easy installation on smaller frames, it's the perfect solution for young shredders.
8
OVERDRIVE

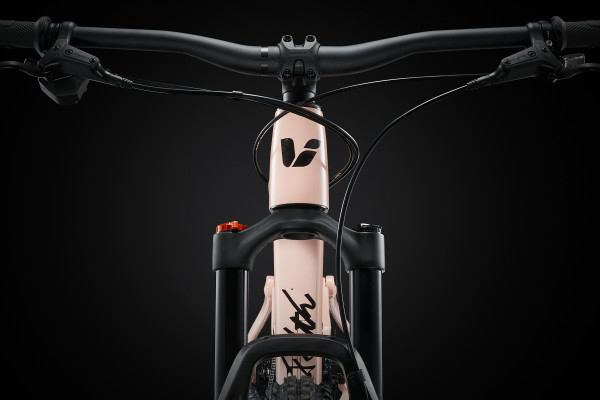

Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
9
MEGADRIVE
A massive down tube and oversized top tube work in unison to provide superior front end lateral and torsional stiffness. The precisely engineered, rectangular shaped down tube yields unprecedented steering precision and pedaling performance.
10

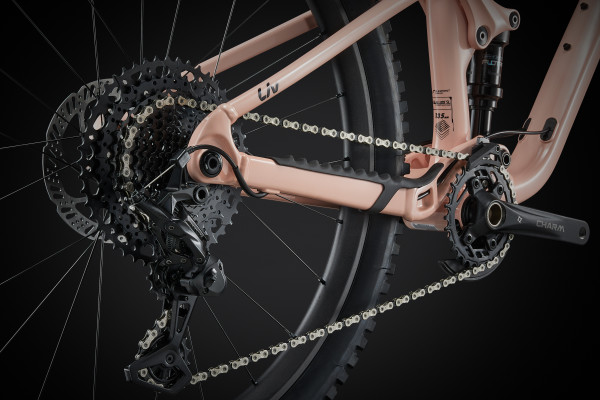

POWERCORE
A massively oversized bottom bracket area features a fully integrated 92mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.
11
INTEGRATED FRAME PROTECTION
The driveside chainstay and down tube feature built-in protection against rocks and debris. A clear 3M protective strip on the underside of the head tube/down tube junction protects the frame when it’s loaded onto a shuttle vehicle.
12
BOOST TECHNOLOGY
Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
13
GIANT TUBELESS SYSTEM
Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
Tehnologije
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
FlexPoint Suspension Technology
A proven “single-pivot” design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
MegaDrive
A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
Vodič za određivanje veličine i geometrija
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- One Size
- 145 cm4’9”
165 cm5’5”
| One Size | ||
|---|---|---|
| A | Dužina cijevi sjedala (mm) (inch) | 35013,8 |
| B | Kut cijevi sjedala (degrees) | 77,0° |
| C | Dužina gornje cijevi (mm) (inch) | 54521,5 |
| D | Dužina prednje cijevi (mm) (inch) | 1054,1 |
| E | Kut vilice (degrees) | 64,5° |
| F | Zakrivljenost vilice (offset) (mm) (inch) | 411,6 |
| G | Staza (mm) (inch) | 126,55 |
| H | Međuosovinski razmak kotača (mm) (inch) | 1147,545,2 |
| I | Dužina od osovine pogona do osovine zadnjeg kotača (CS) (mm) (inch) | 42516,7 |
| J | Položaj osovine pogona (mm) (inch) | 100,4 |
| K | Vertikalna dužina od osovine pogona do glave okvira (stack) (mm) (inch) | 584,523 |
| L | Horizontalna dužina od osovine pogona do glave okvira (reach) (mm) (inch) | 410,116,1 |
| M | Prekoračna visina (mm) (inch) | 67626,6 |
| N | Širina volana (mm) (inch) | 74029,1 |
| O | Dužina lule volana (mm) (inch) | 401,6 |
| P | Dužina poluge pedale (mm) (inch) | 1556,1 |
| Q | Veličina kotača | F 27.5" / R 26" |
Sve navedene specifikacije podložne su promjeni bez prethodne najave.
