This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

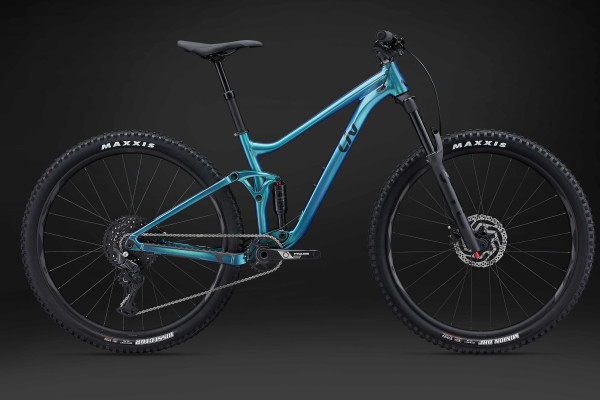

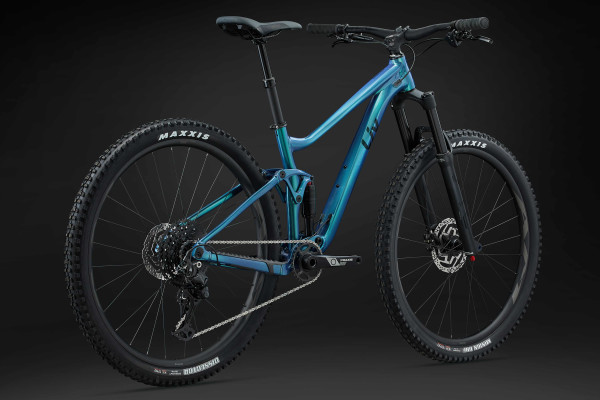

Embolden 2

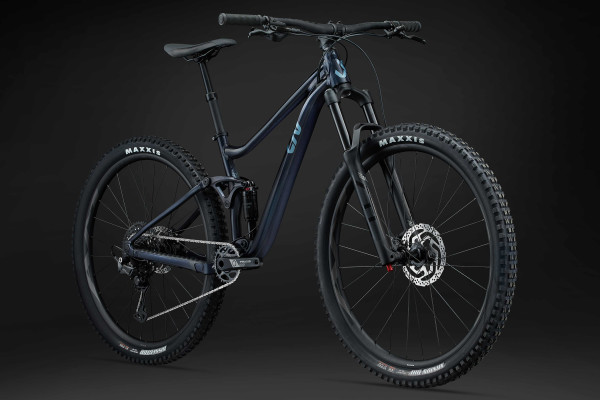

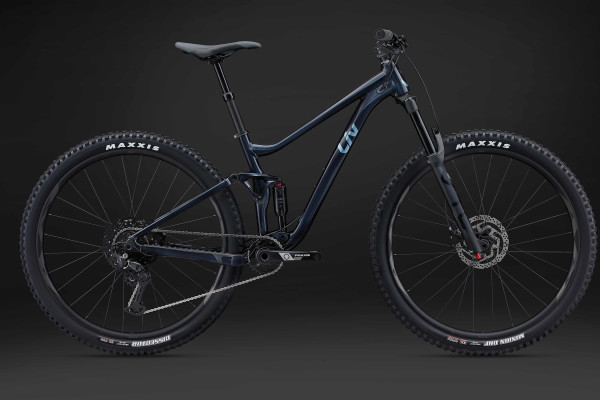

Nothing is off-limits to the Embolden, a trail bike designed to conquer tricky climbs, rowdy descents, and chunky rock gardens with confidence.
Ključni faktori
Wheel Options
Available in 27.5- and 29-inch wheel size options, select the Embolden that best fits you and where you want to ride.
Trail Ready

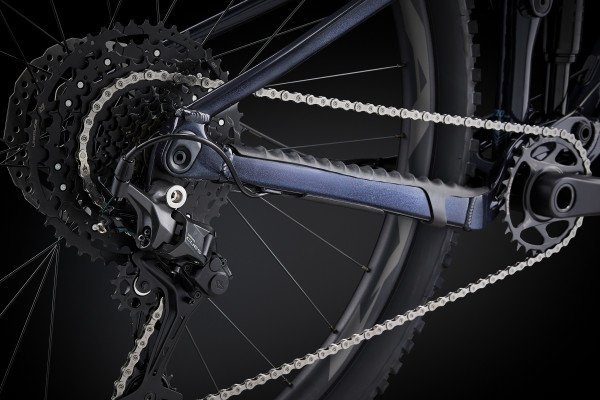

ALUXX-grade aluminum frame, tubeless wheelset, dropper seatpost, Liv Sylvia trail saddle and a 1x drivetrain allow you to tackle new technical terrain with confidence.
Custom Tuned Suspension

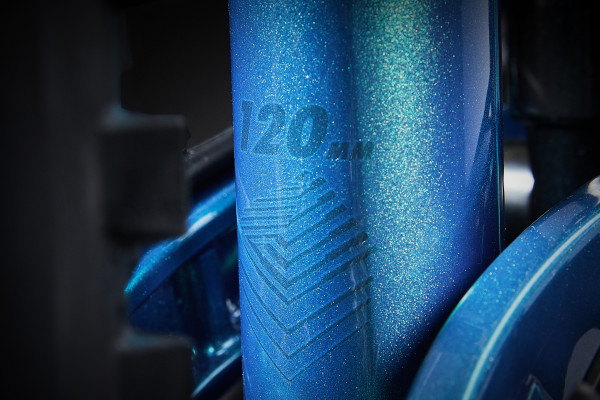

The 120mm of FlexPoint Suspension have been custom tuned by women, for women to provide optimal performance for the rider and the bike’s intended use, resulting in improved traction and control.
Tehnologije
ALUXX Aluminum Technology
FlexPoint Suspension Technology

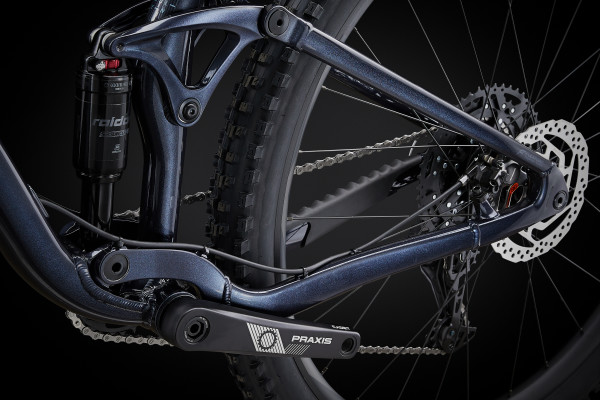

A proven “single-pivot” design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.

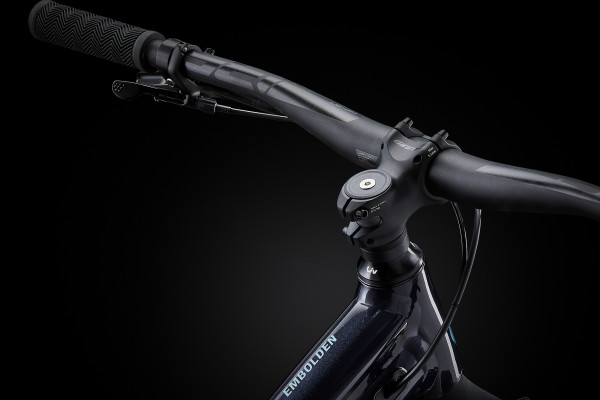

OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
Vodič za određivanje veličine i geometrija
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS (27.5")
- 150 cm4’11”
160 cm5’3”
- S (27.5")
- 158 cm5’2” 169 cm5’7”
- S (29")
- 158 cm5’2” 169 cm5’7”
- M (27.5")
- 164 cm5’5” 175 cm5’9”
- M (29")
- 164 cm5’5” 175 cm5’9”
- L (27.5")
- 170 cm5’7” 181 cm5’11”
- L (29")
- 170 cm5’7” 181 cm5’11”
| XS (27.5") | S (27.5") | S (29") | M (27.5") | M (29") | L (27.5") | L (29") | ||
|---|---|---|---|---|---|---|---|---|
| A | Dužina cijevi sjedala (mm) (inch) | 38015 | 40616 | 40515,9 | 44517,5 | 42016,5 | 49019,3 | 44017,3 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 1455,7 | 1706,7 | 2208,7 | 2108,3 | 2359,3 | 25510 | 25510 |
| B | Kut cijevi sjedala (degrees) | 74,0° | 74,0° | 76,0° | 74,0° | 76,0° | 74,0° | 76,0° |
| C | Dužina gornje cijevi (mm) (inch) | 56522,2 | 58022,8 | 56522,2 | 59523,4 | 58523 | 61024 | 60523,8 |
| D | Dužina prednje cijevi (mm) (inch) | 953,7 | 1003,9 | 1054,1 | 1104,3 | 1154,5 | 1204,7 | 1254,9 |
| E | Kut vilice (degrees) | 67,5° | 67,5° | 67,0° | 67,5° | 67,0° | 67,5° | 67,0° |
| F | Zakrivljenost vilice (offset) (mm) (inch) | 431,7 | 431,7 | 512 | 431,7 | 512 | 431,7 | 512 |
| G | Staza (mm) (inch) | 103,64,1 | 103,64,1 | 105,34,1 | 103,64,1 | 105,34,1 | 103,64,1 | 105,34,1 |
| H | Međuosovinski razmak kotača (mm) (inch) | 110943,7 | 112544,3 | 114745,2 | 114144,9 | 116946 | 115745,6 | 119046,9 |
| I | Dužina od osovine pogona do osovine zadnjeg kotača (CS) (mm) (inch) | 43517,1 | 43517,1 | 43817,2 | 43517,1 | 43817,2 | 43517,1 | 43817,2 |
| J | Položaj osovine pogona (mm) (inch) | 200,8 | 200,8 | 401,6 | 200,8 | 401,6 | 200,8 | 401,6 |
| K | Vertikalna dužina od osovine pogona do glave okvira (stack) (mm) (inch) | 56022 | 56522,2 | 61424,2 | 57422,6 | 62324,5 | 58323 | 63224,9 |
| L | Horizontalna dužina od osovine pogona do glave okvira (reach) (mm) (inch) | 40415,9 | 41816,5 | 41216,2 | 43016,9 | 43016,9 | 44217,4 | 44717,6 |
| M | Prekoračna visina (mm) (inch) | 69027,2 | 70527,8 | 71228 | 73328,9 | 73428,9 | 75929,9 | 75529,7 |
| N | Širina volana (mm) (inch) | 75029,5 | 75029,5 | 74029,1 | 78030,7 | 76029,9 | 78030,7 | 78030,7 |
| O | Dužina lule volana (mm) (inch) | 401,6 | 401,6 | 401,6 | 502 | 502 | 502 | 502 |
| P | Dužina poluge pedale (mm) (inch) | 1656,5 | 1706,7 | 1706,7 | 1706,7 | 1706,7 | 1756,9 | 1706,7 |
| Q | Veličina kotača | 27.5" | 27.5" | 29" | 27.5" | 29" | 27.5" | 29" |
Sve navedene specifikacije podložne su promjeni bez prethodne najave.
