Best For: Gravel

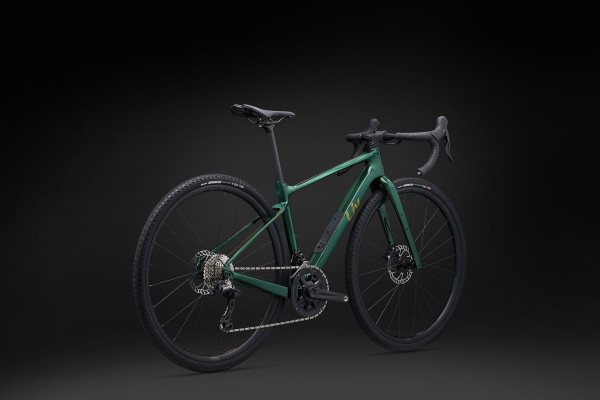

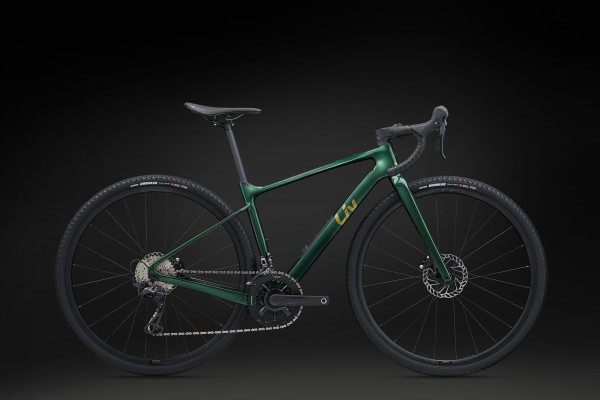

Devote Advanced 1
An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. Select models also feature the Contact D-Fuse seatpost and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.
The frame and fork are constructed from high-performance grade raw carbon material in our own composite factory, providing exceptional strength and lightweight performance for greater power transfer, agility, and efficiency. The front triangle is assembled and molded as one continuous piece using a proprietary manufacturing process called Modified Monocoque Construction.
Our oversized fork steerer tube technology is specifically engineered to deliver precise front-end steering performance. Featuring oversized headset bearings made of stainless steel for added longevity, along with a tapered steerer tube, this system delivers the ideal balance of steering stiffness and responsiveness.
Proprietary D-shaped composite seatpost and handlebar were designed to function as a system to absorb shocks and vibrations from various surfaces, resulting in a smoother, more compliant ride quality.

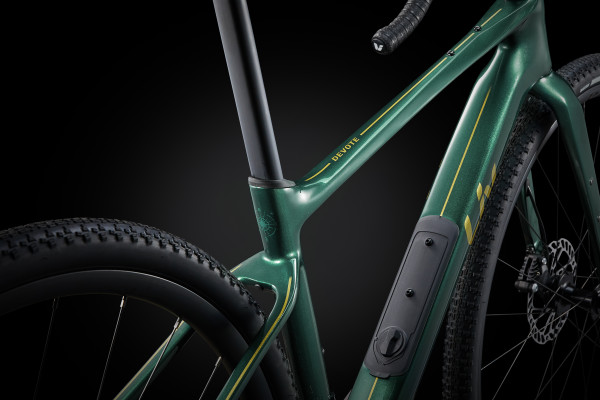

Open a latch on the down tube to reveal an internal compartment that contains a water-resistant bag where you can store essential items including an inner tube, CO2 cartridge, tire lever, snacks, or a multi-tool. The compartment cover also serves as a versatile water bottle cage mount, allowing you to flip and latch it at either the top or bottom for flexible bottle placement.
Easily adjust the geometry and rear-wheel tire clearance with our eccentric (offset, two-position) hardware, located in the rear frame dropouts. Switch to the short position for quicker handling and a maximum tire clearance of 45mm, or choose the long position for stability at speed and increased tire clearance up to 53mm.
The Devote is compatible with multiple seatpost options, including D-Fuse and round seatposts in 30.9mm or 27.2mm sizes, allowing you to tailor the bike to your riding style.

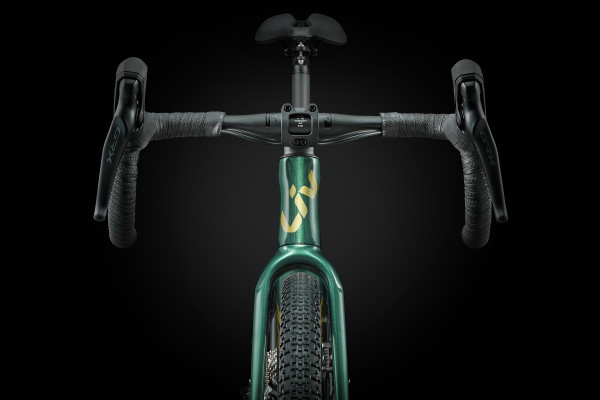

Premium alloy stem inspired by wind tunnel design, guides the cables from the handlebars through the frame, creating an aerodynamic cockpit setup that enhances both performance and aesthetics for an optimal riding experience.
The Devote features three sets of frame mounts, allowing you to carry multiple water bottles and ensuring easy access to hydration during long rides or bike-packing expeditions.
Discover added versatility with top tube mounts for secure bag attachment, fork mounts for accessory integration, and fender mounts to ward off debris and water.

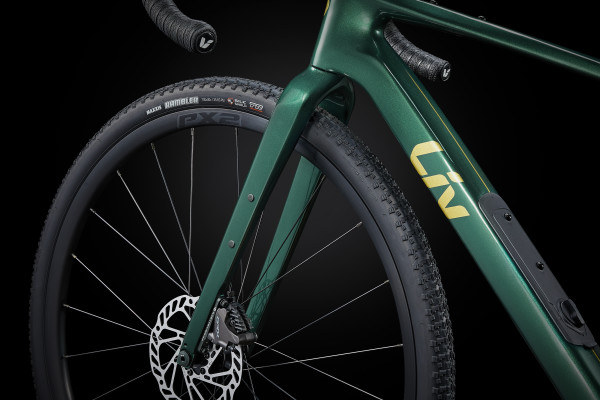

The frame and fork are engineered specifically for flat-mount disc brakes, including front and rear 12mm thru-axles for reliable braking performance in all weather and road conditions.
The integrated tubeless wheelsystem or wheelset (depending on the model), coupled with tubeless tires deliver improved efficiency, comfort, and control.
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
The D-Fuse seatpost and handlebar were designed to function as a system to absorb shocks and vibrations from various surfaces, ensuring a smoother and more efficient ride.
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
163 cm5’4” 169 cm5’7” 175 cm5’9” 181 cm5’11”
| XS | S | M | L | ||
|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
| A | Dužina cijevi sjedala (mm) (inch) | 39015,4 | 42016,5 | 46518,3 | 50019,7 |
| B | Kut cijevi sjedala (degrees) | 74,5° | 74,4° | 74,5° | 74,4° | 74,5° | 74,4° | 74,5° | 74,4° |
| C | Dužina gornje cijevi (mm) (inch) | 52520,7 | 52520,7 | 53521,1 | 53521,1 | 54521,5 | 54521,5 | 55521,9 | 55521,9 |
| D | Dužina prednje cijevi (mm) (inch) | 903,5 | 1104,3 | 1405,5 | 1606,3 |
| E | Kut vilice (degrees) | 70,0° | 69,9° | 70,5° | 70,4° | 71,0° | 70,9° | 71,0° | 70,9° |
| F | Zakrivljenost vilice (offset) (mm) (inch) | 502 | 502 | 502 | 502 |
| G | Staza (mm) (inch) | 78,43,1 | 823,2 | 753 | 78,53,1 | 71,62,8 | 75,13 | 71,62,8 | 753 |
| H | Međuosovinski razmak kotača (mm) (inch) | 101239,8 | 102240,2 | 101940,1 | 102940,5 | 102640,4 | 103640,8 | 104341,1 | 105241,4 |
| I | Dužina od osovine pogona do osovine zadnjeg kotača (CS) (mm) (inch) | 42516,7 | 43517,1 | 42516,7 | 43517,1 | 42516,7 | 43517,1 | 43016,9 | 44017,3 |
| J | Položaj osovine pogona (mm) (inch) | 803,1 | 813,2 | 803,1 | 813,2 | 803,1 | 813,2 | 803,1 | 813,2 |
| K | Vertikalna dužina od osovine pogona do glave okvira (stack) (mm) (inch) | 52320,6 | 52420,6 | 54421,4 | 54521,5 | 57422,6 | 57522,6 | 59323,3 | 59423,4 |
| L | Horizontalna dužina od osovine pogona do glave okvira (reach) (mm) (inch) | 38015 | 37914,9 | 38415,1 | 38315,1 | 38615,2 | 38515,2 | 39115,4 | 38915,3 |
| M | Prekoračna visina (mm) (inch) | 68126,8 | 68827,1 | 70827,9 | 71528,1 | 74829,4 | 75529,7 | 77930,7 | 78630,9 |
| N | Širina volana (mm) (inch) | 40015,7 | 40015,7 | 42016,5 | 42016,5 |
| O | Dužina lule volana (mm) (inch) | 502 | 602,4 | 702,8 | 803,1 |
| P | Dužina poluge pedale (mm) (inch) | 1656,5 | 1706,7 | 172,56,8 | 172,56,8 |
| Q | Veličina kotača | 700 | 700 | 700 | 700 |
Sve navedene specifikacije podložne su promjeni bez prethodne najave.
