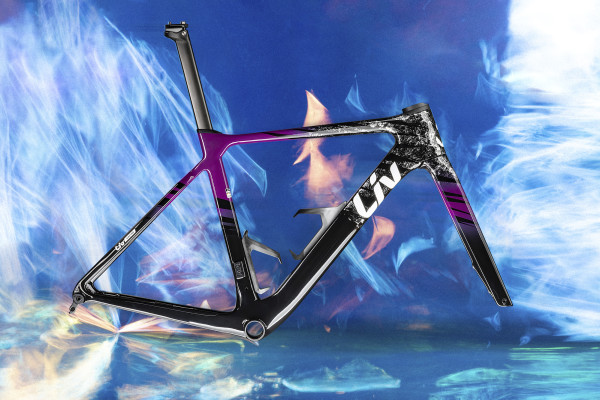

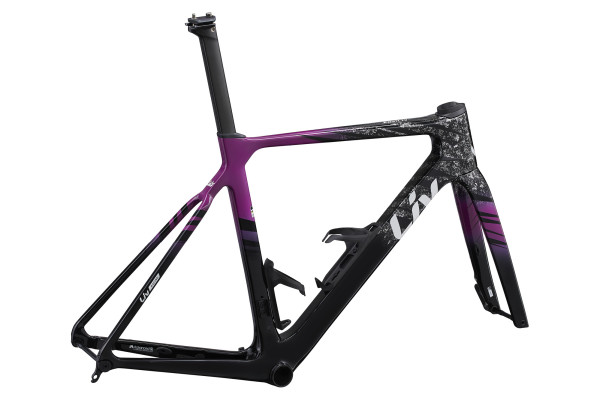

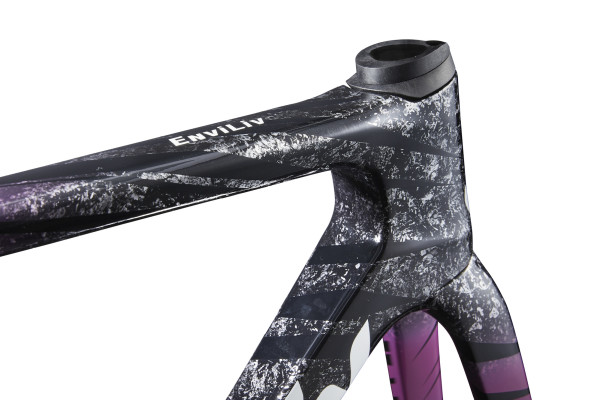

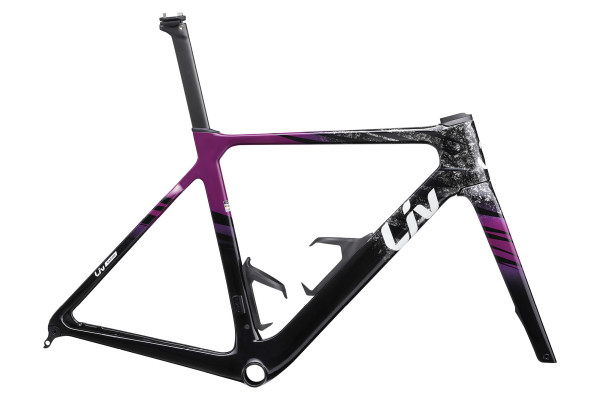

EnviLiv Advanced SL Frameset

Build your dream bike with the EnviLiv Advanced SL—the first ever SL-Grade composite frameset for EnviLiv. Our signature sprinter has been redesigned for optimised aerodynamic performance, and painted in the colours of Liv Racing TeqFind. From the stage race breakaway to the final criterium lap, the all-new EnviLiv is made to be out front.

Key Performance Factors

OPTIMIZED AERODYNAMICS

In our pursuit of maximum power and efficiency, we analyse how bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. Then we examine every detail for opportunities to optimise. The latest version of our AeroSystem Shaping Technology results in improved aerodynamics over previous generations.

SPRINTING EFFICIENCY

Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the new EnviLiv has found the sweetest spot, with an Advanced SL-grade composite frameset—the first ever for EnviLiv. We use Continuous Fiber Technology to add strength without adding weight, Carbon Nanotube Technology resin to improve impact resistance, and Fusion Process for lighter, stronger frame junctions. So you can accelerate faster away from the pack.

SEAMLESS INTEGRATION

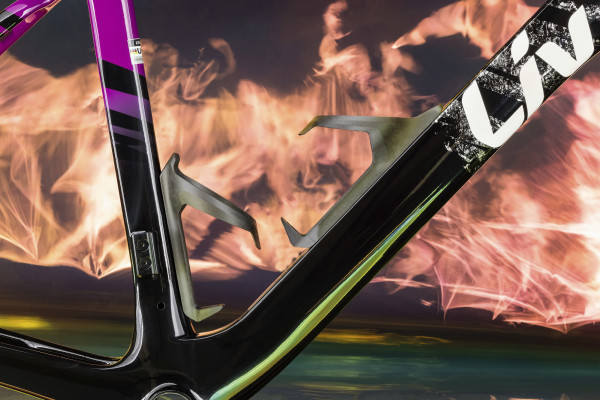

When every second matters, so does every detail. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, for reduced drag and a sleek look.

Highlights

EnviLiv Advanced SL with interactive tooltips

Techs & Features

AeroSystem Shaping Technology
OverDrive Aero
Advanced SL Composite Technology
Vector SLR Seatpost
PowerCore

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XXS
      145 cm4’9”  to 157 cm5’2”
  • XS
      152 cm5’0”  to 163 cm5’4”
  • S
      158 cm5’2”  to 169 cm5’7”
  • M
      164 cm5’5”  to 176 cm5’9”
  • L
      170 cm5’7”  to 182 cm6’0”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XXSXSSML
ASeat Tube Length (mm) (inch)44017.347018.550019.753020.956022
BSeat Tube Angle (degrees)75.0°75.0°74.5°74.0°73.5°
CTop Tube Length (mm) (inch)49819.65082052420.654021.355521.9
DHead Tube Length (mm) (inch)1054.11204.71355.31556.11756.9
EHead Tube Angle (degrees)70.0°71.0°72.0°72.5°72.5°
FFork Rake (mm) (inch)491.9491.9491.9491.9491.9
GTrail (mm) (inch)732.9662.6602.4572.2572.2
HWheelbase (mm) (inch)97038.297338.397738.598438.799639.2
IChain Stay Length (mm) (inch)40515.940515.940515.940515.940515.9
JBottom Bracket Drop (mm) (inch)722.8722.8702.8702.8672.6
KStack (mm) (inch)49919.651720.453220.955321.856922.4
LReach (mm) (inch)36414.337014.637714.83821538615.2
MStand Over Height (mm) (inch)71928.373428.975229.676830.278630.9
NHandlebar Width (mm) (inch)36014.236014.23801540015.742016.5
OStem Length (mm) (inch)803.1803.1903.51003.91104.3
PCrank Length (mm) (inch)1656.51656.51706.71706.7172.56.8
QWheel Size 700C700C700C700C700C
Specs
  • Sizes
    XS, S, M
  • Colours
    Gloss Liv Racing Team Colours
  • Frame
    Advanced SL -Grade Composite, disc
  • Fork
    Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc
  • Seatpost
    Giant Vector SLR, composite, -5/+15mm offset
  • Extras
    Out front computer mount for Garmin, Wahoo and Giant head units , water bottle cages, factory tubeless set up, axles, headset with spacers, 30mm max tyre size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
