State-of-the-art aluminum frameset material features best-in-class strength-to-weight ratios and unique welding technologies for a high-performance ride quality.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

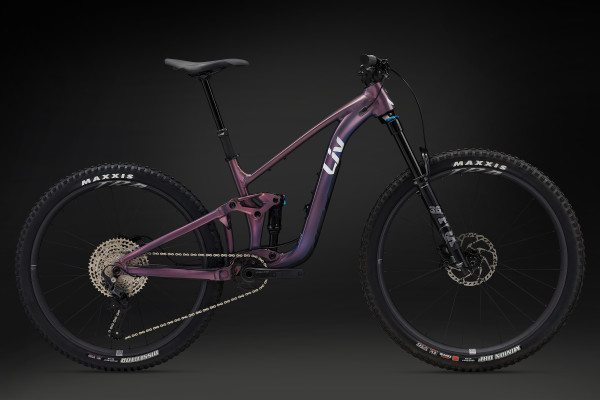

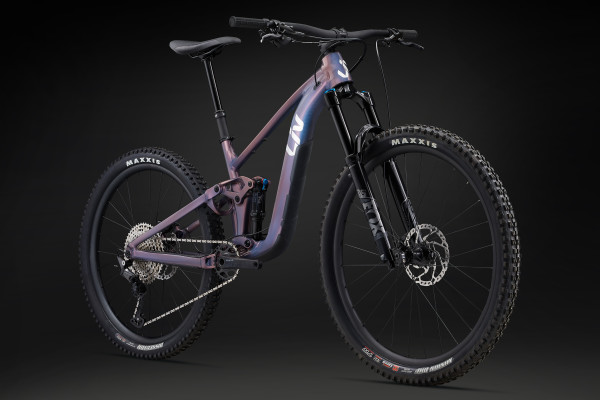

Intrigue X 2
The exceptionally versatile Intrigue X was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X delivers extra performance and fun.
facteurs clés de performance
Performance Mid Travel Trail
Constructed with lightweight and durable ALUXX SL-grade aluminum, the frame boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.
Adjustable Frame Geometry
For ultimate adjustability, the Intrigue X features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
Points importants
1
ALUXX SL-GRADE ALUMINUM FRAMESET
2

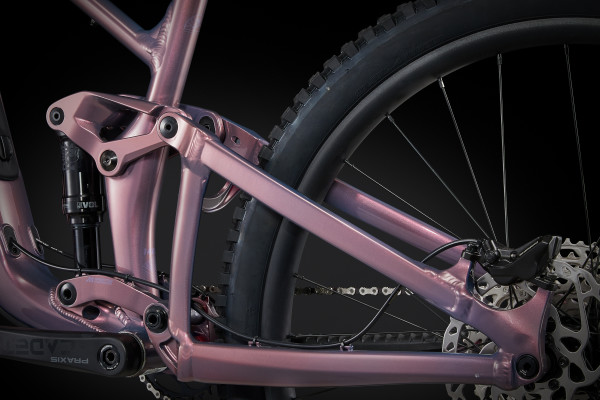

MAESTRO SUSPENSION TECHNOLOGY
Four strategically positioned pivot points and two linkages work together to create a single floating pivot point for the most active, efficient, and reliable suspension system.
3

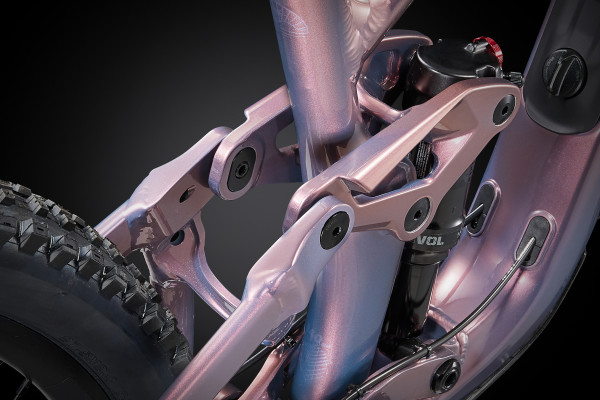

ADVANCED FORGED COMPOSITE TECHNOLOGY
The upper rocker arm is crafted using Advanced Forged Composite Technology which offers increased stiffness, durability, and lighter weight.
4

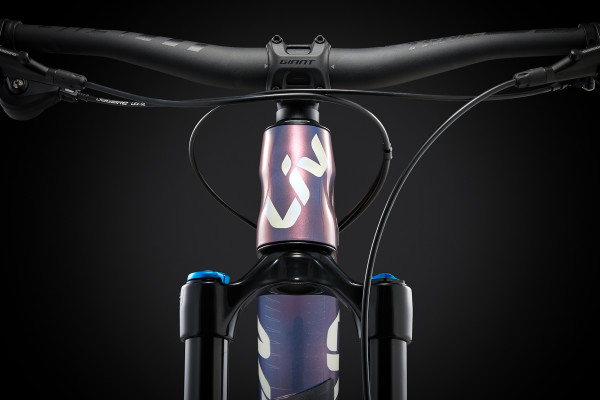

OVERDRIVE
Our oversized fork steerer tube technology is specifically engineered to deliver precise front-end steering performance. With oversized headset bearings (1-1/2” lower and 1-1/8” upper) and tapered steerer tube, this system works together to provide the ideal balance of steering stiffness and responsiveness.
5

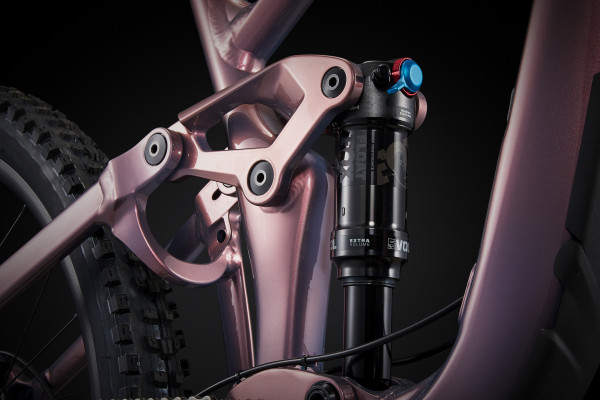

TRUNNION MOUNT
Integrated shock mount produces a lower leverage ratio for increased pedaling and braking efficiency.
6
ADJUSTABLE GEOMETRY
The flip chip – Maestro 3 allows you to quickly adjust the frame geometry to match your riding style and rear-wheel size choice. It includes two flip chips: a high/low chip and a mid-position chip. Transitioning from low to mid changes the seat tube and head tube angles by 0.4 degrees, and from mid to high by 0.3 degrees. The bottom bracket height adjusts by 5mm between the three positions.
7

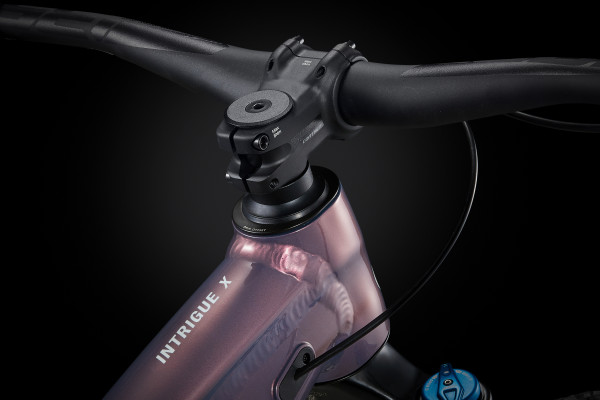

ADJUSTABLE REACH
The flip chip – headset features two different “chips”, or headset cups, placing the headset/reach in either a -5mm (short), 0mm (mid), or +5mm (long) offset position. This allows you to customize the bike’s reach to suit your preference and individual fit.
8
MX CONFIGURATION
Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear and can accommodate a 27.5-inch wheel in the rear.
9
GIANT TRA WHEELSYSTEM
This tubeless wheelsystem features lightweight alloy rims with Wide Guard technology, providing a 30mm inner rim width and a sturdy 5mm sidewall for enhanced durability and puncture resistance, while supporting lower tire pressure for improved grip and control on rough terrain. Maximum tire size is 2.5 inches.
10
BOOST HUB SPACING WITH UDH COMPATIBILITY
Boost 15x110 [F], 12x148 [R] hub spacing, combined with Universal Derailleur Hanger (UDH) compatibility, enhances stiffness, trail handling, tire clearance, and drivetrain durability.
11
FRAME MOUNTS
Underneath the top tube, discover a set of frame mounts to secure a compact gear bag — perfect for must-have tools or snacks.
12

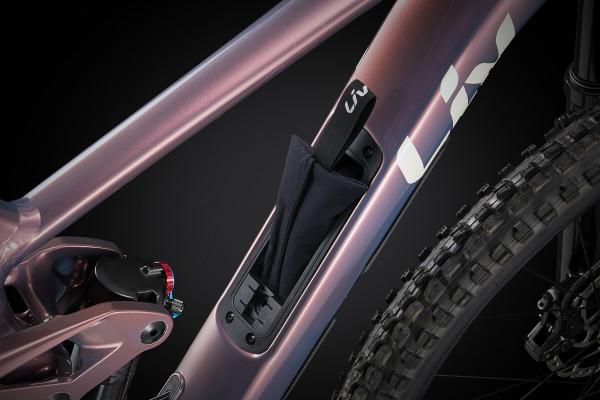

INTEGRATED DOWN TUBE STORAGE
Open a latch on the down tube to reveal an internal compartment that contains a water-resistant bag where you can store essential items including an inner tube, CO2 cartridge, tire lever, snacks, or a multi-tool.
13

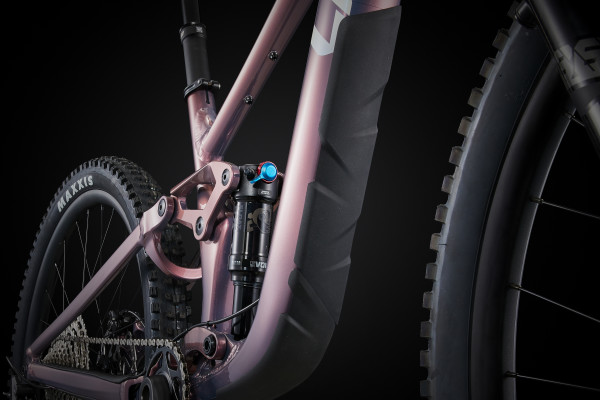

INTEGRATED FRAME PROTECTION
The drive-side chainstay and down tube are equipped with frame protection to guard against rocks and debris, while a clear 3M protective strip on the upper part of the down tube safeguards the frame during shuttle vehicle transport.
14
EXTRAS
Internal cable routing, integrated cable ports, and water bottle cage mounts on all frame sizes.
Technologie
ADVANCED FORGED COMPOSITE
Processus de moulage de pointe sous haute pression permettant de produire des composants en fibres de carbone de forme complexe plus légers, rigides et résistants que des composants similaires en aluminium.
ALUMINIUM ALUXX SL
Cet aluminium haute performance est principalement composé d’alliage 6011 et présente un rapport résistance/poids inégalé. Ces kits cadre sont assemblés selon une technique de soudage unique, pour une qualité de pilotage haute performance.
SUSPENSION MAESTRO
Quatre points de pivot stratégiquement positionnés et deux biellettes travaillent ensemble pour créer un point de pivot flottant, pour un système de suspension actif, efficace et indépendant.
OverDrive
Conçue pour améliorer la précision de la direction de la partie avant, cette technologie de pivot de fourche utilise des roulements surdimensionnés dans le jeu de direction (pour la route, inférieur 1 1/4", supérieur 1 1/8", et pour le tout-terrain, inférieur 1 1/2", supérieur 1 1/8") ainsi qu’un pivot de fourche conique, qui fonctionnent en association pour apporter une rigidité optimale de la direction.
Tubeless System
Moins de crevaisons, plus d’adhérence. Une résistance au roulement moindre, pour un pilotage plus précis, plus rapide. Le système tubeless de Liv rend tous ces avantages plus accessibles que jamais.
Guide des tailles et géométries
Tailles pour référence seulement. Veuillez vérifier avec un détaillant local Giant ou Liv afin de déterminer la taille appropriée.
Les différentes tailles peuvent varier d'un pays à l'autre.
- XS
- 150 cm4’11”
163 cm5’4”
- S
- 158 cm5’2” 169 cm5’7”
- M
- 164 cm5’5” 175 cm5’9”
- L
- 170 cm5’7” 181 cm5’11”
| XS | S | M | L | ||
|---|---|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | ||
| A | Longueur de tube de selle (mm) (inch) | 37014,6 | 39015,4 | 42016,5 | 45017,7 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 2409,4 | 26010,2 | 29011,4 | 32012,6 |
| B | Angle de tube de selle (degrees) | 76,2° | 76,6° | 76,9° | 76,2° | 76,6° | 76,9° | 76,8° | 77,2° | 77,5° | 76,8° | 77,2° | 77,5° |
| C | Longueur du tube supérieur (mm) (inch) | 54821,6 | 54721,5 | 54621,5 | 56422,2 | 56322,2 | 56222,1 | 58222,9 | 58122,9 | 58022,8 | 60323,7 | 60223,7 | 60123,7 |
| D | Longueur du tube de direction (mm) (inch) | 953,7 | 1003,9 | 1054,1 | 1104,3 |
| E | Angle du tube de direction (degrees) | 64,4° | 64,8° | 65,1° | 64,4° | 64,8° | 65,1° | 64,4° | 64,8° | 65,1° | 64,4° | 64,8° | 65,1° |
| F | Déport de fourche (mm) (inch) | 441,7 | 441,7 | 441,7 | 441,7 |
| G | Chasse (mm) (inch) | 134,25,3 | 131,35,2 | 128,35 | 134,15,3 | 131,35,2 | 128,35 | 134,15,3 | 131,35,2 | 128,35 | 1345,3 | 131,35,2 | 128,35 |
| H | Empattement (mm) (inch) | 115945,6 | 115945,6 | 115845,6 | 117646,3 | 117646,3 | 117546,3 | 120247,3 | 120147,3 | 120147,3 | 122448,2 | 122448,2 | 122348,1 |
| I | Longueur des bases (mm) (inch) | 44017,3 | 43917,3 | 43817,2 | 44017,3 | 43917,3 | 43817,2 | 44017,3 | 43917,3 | 43817,2 | 44017,3 | 43917,3 | 43817,2 |
| J | Hauteur du boitier de pédalier (mm) (inch) | 251 | 200,8 | 150,6 | 251 | 200,8 | 150,6 | 401,6 | 351,4 | 301,2 | 401,6 | 351,4 | 301,2 |
| K | Stack (mm) (inch) | 61524,2 | 61324,1 | 61024 | 62024,4 | 61724,3 | 61424,2 | 62124,4 | 61924,4 | 61624,3 | 62624,6 | 62324,5 | 62024,4 |
| L | Reach (mm) (inch) | 39715,6 | 40115,8 | 40515,9 | 41216,2 | 41516,3 | 42016,5 | 43617,2 | 44017,3 | 44417,5 | 45618 | 45918,1 | 46418,3 |
| M | Hauteur d'enjambement (mm) (inch) | 73028,7 | 73428,9 | 73829,1 | 73328,9 | 73729 | 74229,2 | 74529,3 | 74929,5 | 75429,7 | 76730,2 | 77130,4 | 77630,6 |
| N | Largeur de cintre (mm) (inch) | 76029,9 | 76029,9 | 76029,9 | 78030,7 |
| O | Longueur de potence (mm) (inch) | 401,6 | 502 | 502 | 502 |
| P | Longueur des manivelles (mm) (inch) | 1656,5 | 1706,7 | 1706,7 | 1706,7 |
| Q | Diamètre des roues | [F] 29" [R | [F] 29" [R | [F] 29" [R | [F] 29" [R |
GIANT Suisse se réserve le droit de modifier les spécifications sans préavis. Photos non contractuelles.
