STP 24 Liv

1 499 $

Financement disponible . Learn more

Skip to compare section

For young riders ready to level up their skills, the STP 24 delivers the perfect mix of stability, control, and fun. With youth-tuned suspension, balanced geometry, and components built for smaller riders, it helps them flow through corners, jump higher, and push their limits with confidence—on trails, pump tracks, and everything in between.

Facteurs de performance clés

BUILT TO LAST

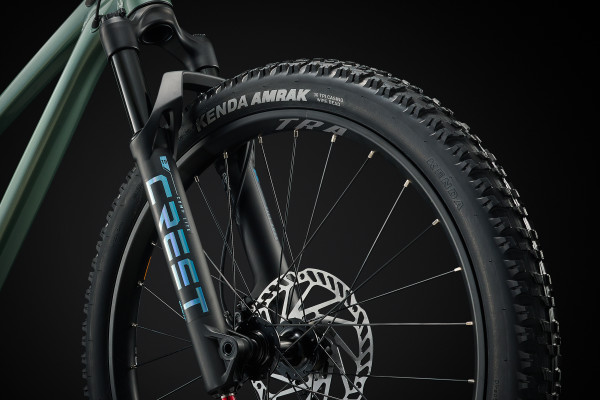

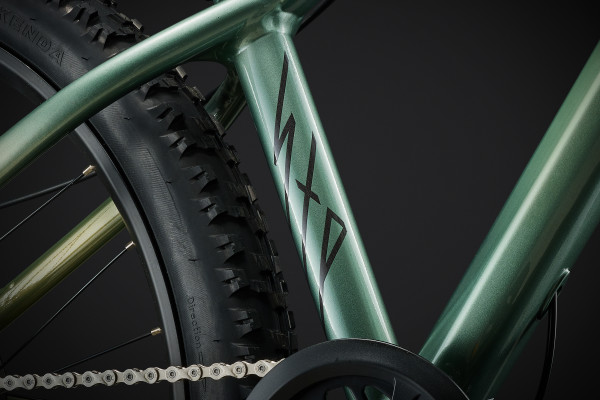

The ALUXX-grade aluminum frame and Crest TR Comp Lite 100 mm suspension fork are engineered to handle rough rides while keeping things smooth and controlled. The 24-inch TRA 2 WheelSystem with Wide Guard rim technology lets riders run lower tire pressures for added traction without sacrificing rim durability.

YOUTH-TUNED CONTROL

Designed for riders 125–145 cm tall, the STP 24 features youth-specific components that ensure proper fit and control. The narrower handlebars, Liv Grit Core Lite saddle, and Contact Switch AT Lite dropper seatpost provide a comfortable, secure riding position, while youth-tuned hydraulic disc brakes offer smooth, reliable stopping power across all terrain.

TRICK-READY HANDLING

With 24-inch wheels, front and rear thru-axles, and a short rear center, the STP 24 feels agile yet stable. Its low center of gravity makes it easier to lift the front wheel, pump through rollers, and carve corners with confidence and control.

Points importants

Built for young riders ready to progress, the STP 24 blends control, comfort, and capability. Every detail—from youth-tuned suspension to thoughtfully designed components—helps riders grow their skills and confidence on trails, pump tracks, and dirt jumps.

STP 24 with interactive tooltips

Technologies

ALUXX Aluminum Technology

Guide de Taille et Géométrie

Tailles pour référence seulement. Veuillez vérifier avec votre détaillant local Giant ou Liv afin de déterminer la taille appropriée.
Les différentes tailles peuvent varier d'un pays à l'autre.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      125 cm4’1” to 145 cm4’9”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 One Size
A Longueur du tube de selle (mm) (inch)30011,8
A1 Seat Post Insertion Depth (mm) (inch)2509,8
B Angle du tube de selle (degrees)73,0°
C Longueur du tube supérieur (top tube) (mm) (inch)52320,6
D Longueur du tube de direction (head tube) (mm) (inch)903,5
E Angle du tube de direction (degrees)67,0°
F Déport (rake) de fourche (mm) (inch)301,2
G Trail (mm) (inch)1044,1
H Empattement (mm) (inch)97538,4
I Longueur des bases (mm) (inch)37514,8
J Hauteur du boitier de pédalier (mm) (inch)401,6
K Portée Verticale (Stack) (mm) (inch)53421
L Portée Horizontale (Reach) (mm) (inch)36014,2
M Hauteur du cadre (mm) (inch)62924,8
N Largeur du Guidon (mm) (inch)64025,2
O Longueur de la Potence (mm) (inch)401,6
P Longueur des manivelles (mm) (inch)1405,5
Caractéristiques techniques
  • Tailles
    OSFM
  • Couleurs
    Alpine Green
  • Cadre
    ALUXX-grade aluminum, 12x142mm thru-axle
  • Fourche
    Giant Crest TR Comp Lite, 34 mm stanchions, 15x110 mm thru-axle, 100 mm travel, youth tuned
  • Amortisseur (shock)
    N/A
  • Guidon
    Giant Sport, alloy, 31.8 mm, 640 mm
  • Poignées
    Giant Junior
  • Potence
    forged alloy, 0-degree
  • Tige de selle
    Giant Contact Switch AT Lite, remote, 70-100 mm travel, 30.9 mm x 315 mm
  • Selle
    Liv Grit Core Lite
  • Pédales
    platform
  • Leviers de vitesse
    MicroSHIFT Advent, 1x9, quick trigger shifter with small hand ergonomics and indicator with index thumb operation
  • Dérailleur avant
    N/A
  • Dérailleur arrière
    MicroSHIFT Advent, super short cage for increased ground clearance with clutch
  • Freins
    Tektro HD-J2820 hydraulic [F]180mm, [R]160mm rotors
  • Leviers de frein
    Tektro HD-J2820
  • Cassette
    Shimano CS-H093, 11x38
  • Chaîne
    KMC X9
  • Pédalier
    alloy forged, 30t, 140mm
  • Boîtier de pédalier
    threaded cartridge
  • Jantes
    Giant TRA 2, 24", alloy
  • Moyeux
    [F] Giant Tracker, thru-axle, 6-bolt [R] Giant Tracker thru-axle, 6-bolt, HG driver body
  • Rayons
    stainless, 14g
  • Pneus
    Kenda Amrak, 24x2.2"
  • Poids
    Quel est le poids du vélo ? C’est une question classique et importante. Il n’y a aucun standard dans l’industrie du vélo qui permet de comparer les poids des vélos d’une marque à une autre. Ce qui conduit très souvent à de mauvaises informations. Les différences reposent sur les tailles, les matériaux utilisés, les finitions, les éléments inclus ou non dans l’évaluation du poids…Nous considérons que la seule façon d’évaluer le poids d’un vélo et toute simplement de l’essayer.

Télécharger le PDF

GIANT Canada se réserve le droit de modifier les spécifications sans préavis. Photos non contractuelles.
