COMPARE

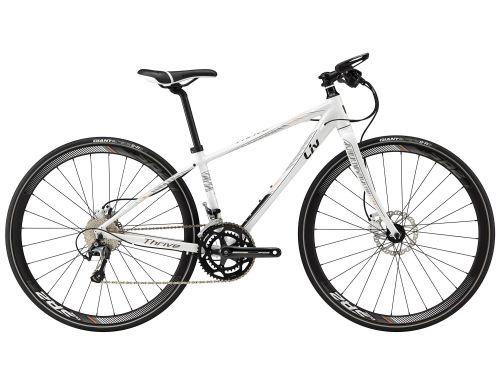

Thrive 1 Disc
2018
- AluxX aluminium frame
- Shimano Tiagra 10-speed drivetrain w/ flatbar shifters
- Giant D-Fuse Composite seatpost
- Tektro HDC 291 hydraulic disc brakes
- Giant S-R2 Disc wheelset
- Color: White/Black/Rainbow
FROM SHORT DAILY SPINS TO LONGER ROAD RIDES, Thrive IS A FAST, FUN AND CONFIDENT FITNESS BIKE.
Why We Love It
With stylish urban looks, this flat bar commuter absorbs road chatter and is perfect for city or country rides. Complete with fast, reliable shifting and braking, this lightweight build is designed for comfort and finesse. Get ready to create bigger goals and tackle new adventures!
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
163 cm5’4” 169 cm5’7” 175 cm5’9” 183 cm6’0”
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 38015 | 42016,5 | 46518,3 | 50019,7 |
| B | Seat Tube Angle (degrees) | 75,0° | 74,5° | 74,0° | 74,0° |
| C | Top Tube Length (mm) (inch) | 52020,5 | 53020,9 | 55521,9 | 57022,4 |
| D | Head Tube Length (mm) (inch) | 1104,3 | 1355,3 | 1656,5 | 1957,7 |
| E | Head Tube Angle (degrees) | 70,5° | 71,0° | 71,5° | 71,5° |
| F | Fork Rake (mm) (inch) | 502 | 502 | 502 | 502 |
| G | Trail (mm) (inch) | 712,8 | 682,7 | 642,5 | 612,4 |
| H | Wheelbase (mm) (inch) | 103440,7 | 103640,8 | 105241,4 | 106842 |
| I | Chain Stay Length (mm) (inch) | 44017,3 | 44017,3 | 44017,3 | 44017,3 |
| J | Bottom Bracket Drop (mm) (inch) | 602,4 | 602,4 | 602,4 | 602,4 |
| K | Stack (mm) (inch) | 53521,1 | 56122,1 | 59123,3 | 62024,4 |
| L | Reach (mm) (inch) | 37714,8 | 37414,7 | 38515,2 | 39215,4 |
| M | Stand Over Height (mm) (inch) | 67626,6 | 70927,9 | 74629,4 | 77630,6 |
| N | Handlebar Width (mm) (inch) | 58022,8 | 58022,8 | 62024,4 | 62024,4 |
| O | Stem Length (mm) (inch) | 803,1 | 803,1 | 903,5 | 1003,9 |
| P | Crank Length (mm) (inch) | 1656,5 | 1706,7 | 1706,7 | 1756,9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
All specifications and prices listed are subject to change without notice.
