PVP 2.949 €
Has añadido

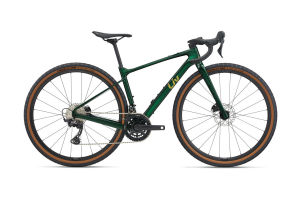

Devote Advanced 2
a tu cesta de la compra
Cuadro y horquilla de carbono grado Advanced para viajar ligera, subir con facilidad y acelerar de manera eficiente en todos los terrenos. Su rediseñada geometría te coloca en una posición de conducción más agresiva, incrementando la tracción y la estabilidad, y otorgando un mayor control a altas velocidades y en los descensos.
El manillar Contact XR D-Fuse, diseñado con un back sweep de 5 grados, proporciona un agarre cómodo y ergonómico, lo que reduce el cansancio y mejora el control en los recorridos largos. Combinado con la tija del sillín D-Fuse, estos componentes filtran las vibraciones, garantizando menos fatiga y más diversión.
Adáptate al recorrido con el flip-chip que permite ajustar la posición de la rueda trasera y la distancia entre ejes. Elije la posición corta para una mayor capacidad de respuesta y maniobrabilidad, o la posición larga para una mejor estabilidad y un mayor espacio para neumáticos más anchos.
The frame and fork are constructed from high-performance grade raw carbon material in our own composite factory, providing exceptional strength and lightweight performance for greater power transfer, agility, and efficiency. The front triangle is assembled and molded as one continuous piece using a proprietary manufacturing process called Modified Monocoque Construction.
Our oversized fork steerer tube technology is specifically engineered to deliver precise front-end steering performance. Featuring oversized headset bearings made of stainless steel for added longevity, along with a tapered steerer tube, this system delivers the ideal balance of steering stiffness and responsiveness.
Proprietary D-shaped composite seatpost and handlebar were designed to function as a system to absorb shocks and vibrations from various surfaces, resulting in a smoother, more compliant ride quality.
Open a latch on the down tube to reveal an internal compartment that contains a water-resistant bag where you can store essential items including an inner tube, CO2 cartridge, tire lever, snacks, or a multi-tool. The compartment cover also serves as a versatile water bottle cage mount, allowing you to flip and latch it at either the top or bottom for flexible bottle placement.
Easily adjust the geometry and rear-wheel tire clearance with our eccentric (offset, two-position) hardware, located in the rear frame dropouts. Switch to the short position for quicker handling and a maximum tire clearance of 45mm, or choose the long position for stability at speed and increased tire clearance up to 53mm.
The Devote is compatible with multiple seatpost options, including D-Fuse and round seatposts in 30.9mm or 27.2mm sizes, allowing you to tailor the bike to your riding style.
Premium alloy stem inspired by wind tunnel design, guides the cables from the handlebars through the frame, creating an aerodynamic cockpit setup that enhances both performance and aesthetics for an optimal riding experience.
The Devote features three sets of frame mounts, allowing you to carry multiple water bottles and ensuring easy access to hydration during long rides or bike-packing expeditions.
Discover added versatility with top tube mounts for secure bag attachment, fork mounts for accessory integration, and fender mounts to ward off debris and water.
The frame and fork are engineered specifically for flat-mount disc brakes, including front and rear 12mm thru-axles for reliable braking performance in all weather and road conditions.
The integrated tubeless wheelsystem or wheelset (depending on the model), coupled with tubeless tires deliver improved efficiency, comfort, and control.
Tecnología de tubo de dirección sobredimensionado que lleva grandes rodamientos de 1-1/4" el inferior y 1-1/8" el superior para bicicletas de carretera, y de 1-1/2" el inferior y 1-1/8" el superior para bicicletas de montaña, además de el tubo de dirección cónico, para ofrecer un mayor control y rigidez a la dirección.
The D-Fuse seatpost and handlebar were designed to function as a system to absorb shocks and vibrations from various surfaces, ensuring a smoother and more efficient ride.
Tallas solo para referencia. Comprueba con una tienda local Giant o Liv para determinar la talla adecuada. Las tallas pueden variar de un país a otro.
163 cm5’4” 169 cm5’7” 175 cm5’9”
| XS | S | M | ||
|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
| A | Longitud del tubo del sillín (mm) (inch) | 39015,4 | 42016,5 | 46518,3 |
| B | Ángulo del tubo del sillín (degrees) | 74,5° | 74,4° | 74,5° | 74,4° | 74,5° | 74,4° |
| C | Longitud del tubo superior (mm) (mm) (inch) | 52520,7 | 52520,7 | 53521,1 | 53521,1 | 54521,5 | 54521,5 |
| D | Longitud del tubo de dirección (mm) (mm) (inch) | 903,5 | 1104,3 | 1405,5 |
| E | Ángulo del tubo de dirección (degrees) | 70,0° | 69,9° | 70,5° | 70,4° | 71,0° | 70,9° |
| F | Inclinación de la horquilla (mm) (inch) | 502 | 502 | 502 |
| G | Trail (mm) (mm) (inch) | 78,43,1 | 823,2 | 753 | 78,53,1 | 71,62,8 | 75,13 |
| H | Distancia entre ejes (mm) (mm) (inch) | 101239,8 | 102240,2 | 101940,1 | 102940,5 | 102640,4 | 103640,8 |
| I | Longitud de la vaina (mm) (mm) (inch) | 42516,7 | 43517,1 | 42516,7 | 43517,1 | 42516,7 | 43517,1 |
| J | Caída del eje de pedalier (mm) (mm) (inch) | 803,1 | 813,2 | 803,1 | 813,2 | 803,1 | 813,2 |
| K | Stack (mm) (mm) (inch) | 52320,6 | 52420,6 | 54421,4 | 54521,5 | 57422,6 | 57522,6 |
| L | Reach (mm) (mm) (inch) | 38015 | 37914,9 | 38415,1 | 38315,1 | 38615,2 | 38515,2 |
| M | Altura del suelo al tubo (mm) (mm) (inch) | 68126,8 | 68827,1 | 70827,9 | 71528,1 | 74829,4 | 75529,7 |
| N | Ancho del manillar (mm) (mm) (inch) | 40015,7 | 40015,7 | 42016,5 |
| O | Longitud de la potencia (mm) (mm) (inch) | 502 | 602,4 | 702,8 |
| P | Longitud de las bielas (mm) (mm) (inch) | 1656,5 | 1706,7 | 172,56,8 |
| Q | Tamaño de ruedas | 700 | 700 | 700 |
Giant se reserva el derecho a modificar especificaciones, precios o colores sin previo aviso.
