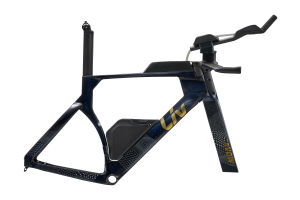

Cuadro Avow Advanced SL Tri

PVP 4.499 €

Puntos importantes

Avow Advanced SL Tri Frameset with interactive tooltips

Guía de tallas y Geometría

Tallas solo para referencia. Comprueba con una tienda local Giant o Liv para determinar la talla adecuada. Las tallas pueden variar de un país a otro.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XXS
      151 cm4’11”  to 161 cm5’3”
  • XS
      159 cm5’3”  to 169 cm5’7”
  • S
      166 cm5’5”  to 176 cm5’9”
  • M
      173 cm5’8”  to 182 cm6’0”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XXSXSSM
A Longitud del tubo del sillín (mm) (inch)44017,347718,85082053821,2
B Ángulo del tubo del sillín (degrees)77,0°77,0°77,0°77,0°
C Longitud del tubo superior (mm) (mm) (inch)49319,451020,153020,955421,8
D Longitud del tubo de dirección (mm) (mm) (inch)652,6853,31054,11254,9
E Ángulo del tubo de dirección (degrees)71,0°72,0°73,0°73,0°
F Inclinación de la horquilla (mm) (inch)401,6401,6401,6401,6
G Trail (mm) (mm) (inch)793,1692,7632,5632,5
H Distancia entre ejes (mm) (mm) (inch)96938,197438,398838,9101339,9
I Longitud de la vaina (mm) (mm) (inch)40515,940515,940515,940515,9
J Caída del eje de pedalier (mm) (mm) (inch)702,8702,8702,8702,8
K Stack (mm) (mm) (inch)46718,449019,351320,253220,9
L Reach (mm) (mm) (inch)38715,239715,641216,243217
M Altura del suelo al tubo (mm) (mm) (inch)73328,975829,878630,981432
N Ancho del manillar (mm) (mm) (inch)40015,740015,740015,740015,7
Q Tamaño de ruedas 700C700C700C700C
R Stack del reposabrazos (TRI) 604-686 | (TT) 556-640(TRI) 629-709 | (TT) 582-662(TRI) 653-733 | (TT) 605-685(TRI) 672-752 | (TT) 624-704
S Reach del reposabrazos (TRI) 309-383 | (TT) 326-400(TRI) 323-398 | (TT) 339-414(TRI) 340-415 | (TT) 355-430(TRI) 360-435 | (TT) 375-450
Especificaciones
  • Tallas
    XXS, XS, S, M
  • Colores
    Ultra Navy
  • Cuadro
    Advanced SL-grade composite, 12x142mm thru-axle, disc
  • Horquilla
    Advanced SL-grade composite, full-composite steerer, 12x100mm, disc
  • Manillar
    AeroDrive base bar with Sync armrest set, 10- and 15-degree extension wedge
  • Potencia
    AeroDrive integrated stem
  • Tija de sillín
    Liv Avow Composite
  • Kit Reposabrazos
    Sync armrest set
  • Extras
    bento box top tube storage, hydration kit, computer mount, 30mm max tire size
  • Máxima Anchura de Neumático
    30mm
  • Peso
    ¿Cuánto pesa la bici? Es una pregunta clásica e importante. No existe ningún estándar en la industria de la bicicleta que permita comparar el peso de una bicicleta de una marca a otra. Lo que a menudo conduce a informaciones erróneas. Las diferencias descansan en las tallas, los materiales utilizados, los elementos incluidos o nó en la evaluación del peso. Nosotros consideramos que la única forma de evaluar el peso de una bici es, sencillamente, probándola.

Giant se reserva el derecho a modificar especificaciones, precios o colores sin previo aviso.

FAQ

Frameset Compatibility

Yes, it is fully compatible. The frameset includes a battery holder in the down tube and cable ports at the head tube and rear dropout for seamless integration.




No, only electronic systems.




The existing SYNC EVO Pro extension system also fits the Avow bridge without an adaptor. Check back for new product compatibility updates.




Yes, the frameset is compliant for time trail (TT) events.




Frameset Components and Specification

When you purchase the frameset, you'll receive the frame, fork, hardware, cockpit (Giant Base Bar with integrated stem combo and new SYNC rest set), top tube bento box, hydration kit, and computer mount.




Press-fit




The frameset uses a flat mount for the brake calipers. With an adapter, the maximum rotor size is 160mm. Without an adapter, the maximum rotor size is 160mm for the front and 140mm for the rear.




Yes, it is fully compatible.




Hydration System

Yes, you can contact your local retailer for support. Alternatively, the system is compatible with a standard water bottle cage and bottle.




Yes, the straw includes a metal threading tool, making setup and thorough cleaning simple.




Adjustability

The seatpost offset ranges from 21mm to 30mm with the saddle extender, providing a total of four offset positions within a 51mm adjustment range.




The armrests have a default stack height of 50mm and are adjustable across 9 positions, ranging from 0-80mm.




The armrest reach is adjustable across 10 positions, ranging from 0-75mm.




The armrests can be angled at 0°, 10°, or 15°.




The armrest width is adjustable from 192mm to 244mm, offering 8 distinct positions.




The extension width is adjustable from 82mm to 166mm, with 4 available positions.




The maximum saddle height is calculated as the seat tube length plus the uncut seat post (310mm) minus the minimum insert requirement (70mm). For XXS, it is 680mm; for XS, 705mm; for S, 735mm; and for M, 765mm. The minimum saddle height is calculated as the seat tube length plus the cut seat post (160mm) minus the minimum insert requirement (70mm). For XXS, it is 530mm; for XS, 555mm; for S, 585mm; and for M, 615mm. The seatpost provides a 51mm adjustment range.
