This full-composite, lightweight and highly aerodynamic seatpost is engineered specifically for the unyielding demands of the performance road rider.

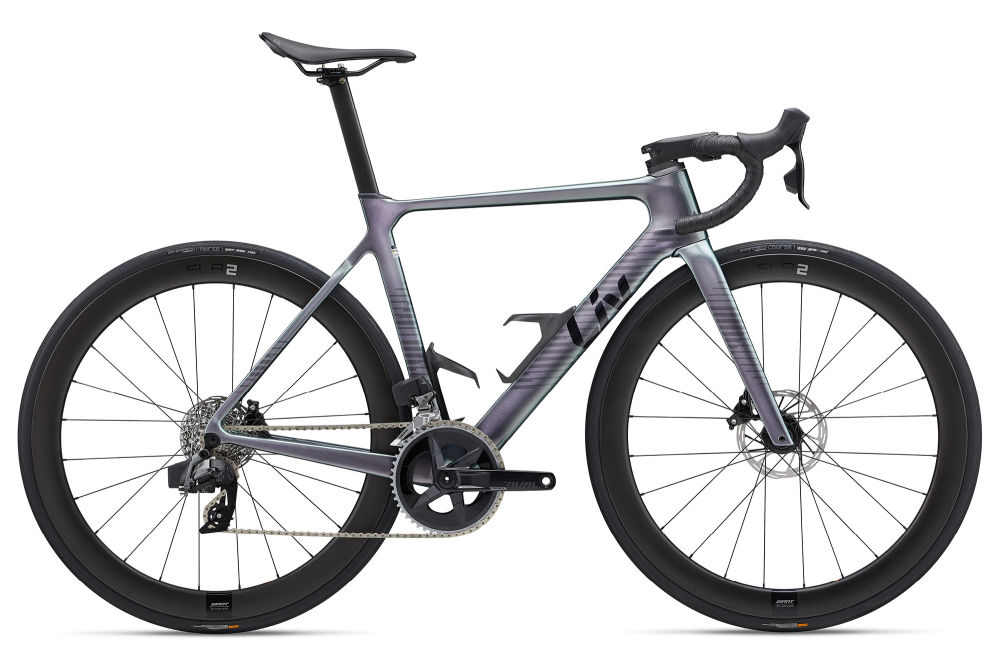

EnviLiv Advanced 1
2023
36.999 kr.
Før an i udbruddet, sprint til sejren og slå hver eneste rekord på den helt nye EnviLiv Advanced. Redesignet for at give dig optimal aerodynamisk og stivhed-til-vægt ydeevne, så du ikke bare er hurtig, men den hurtigste.
Nøglefaktorer
Ekstraordinær aerodynamisk ydeevne
CFD-analyse og vindtunneltest har ført til den seneste version af vores AeroSystem Shaping Technology, der optimerer den aerodynamiske ydeevne fra enhver vinkel. De afkortede ellipseprofilrør og det helt nye Contact SL Aero cockpit producerer solid overordnet aero-ydeevne.
Sprint effektivitet
Opdateret Advanced-Grade carbon-rammesæt resulterer i en vægtbesparelse i forhold til den forrige generation, hvilket giver dig en større stivhed i forhold til vægt.
Fuld integration
Opdateret cockpitkabelføring gennem styret og frempinden forbedrer det slanke udseende og aero-ydeevne, samtidig med at det er nemmere at servicere kablerne og skille cyklen ad til rejsen. To aerodynamiske flaskeholdere er integreret med sadelrøret og skrårøret, hvilket giver de sidste aero-detaljer.
Højdepunkter
1
Vector Seatpost
2
Advanced-Grade Composite Frame
High-performance grade raw carbon material is used to produce this custom material in our own composite factory with a high stiffness-to-weight ratio.
3
Contact SL Aero Stem
Integrated lightweight aluminum stem improves aero performance and aesthetics with wind tunnel inspired design and internal cable routing.
4
Computer Mount
Includes three fittings for Garmin, Wahoo and Giant, and also supports GoPro and light installation. The length and angle of the mount is adjustable.
5
New Cable Routing
Frame and handlebar feature all-new cable porting for sleek, non-cluttered appearance and easier adjustability.
6
Liv Contact SL Aero Handlebar
Our all-new lightweight aluminum Liv handlebar features an aerodynamic design, ergonomic grip and optimized drop and reach that’s customized for women’s measurements.
7
OverDrive Aero
Found inside the head tube of the all-new EnviLiv range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
8
Advanced-Grade Composite Fork
D-shaped steerer tube and fork legs are constructed entirely from our Advanced-grade composite for light weight and superior handling.
9
Disc Brake Integration
The frame and fork are engineered specifically for flat-mount disc-brakes, including front and rear 12mm thru-axles for reliable braking performance in all weather and road conditions.
10
Aerodynamic Water Bottle Cages
Equipped with two water bottle cages that have been designed to integrate with the frame tube shapes for an aerodynamic advantage.
11
PowerCore
An oversized bottom bracket/chainstay area features a fully integrated, 86.5mm wide bottom bracket design. Asymmetric chainstays provide additional stiffness on the drive side and stability on the non-drive side.
12
Aerosystem Shaping Technology
Data compiled from Computational Fluid Dynamics research and wind-tunnel tests was used to optimize the shape of every frameset tube and junction for overall system aerodynamics.
13
Aero Tubeless Wheelsystem
Engineered with proprietary Dynamic Balanced Lacing technology, this composite aero WheelSystem and tubeless tires deliver superior efficiency, pinpoint control and superior aerodynamics.
Teknologier
Advanced Composite Technology
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
AeroSystem Shaping Technology
Tubing shapes engineered using computational fluid dynamics (CFD) and wind-tunnel data to optimize each tube shape for superior aerodynamic performance.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
OverDrive Aero
Found inside the head tube of the all-new EnviLiv range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
Størrelsesguide og geometri
Størrelsesskemaet må kun bruges som reference. Besøg din lokale forhandler for at få målt den korrekt størrelse da den ikke kun er afhængig af din højde men bla. også ben- og kropslængde. Hvilke størrelser der er til rådighed kan variere fra land til land.
- XXS
- 145 cm4’9”
157 cm5’2”
- XS
- 152 cm5’0” 163 cm5’4”
- S
- 158 cm5’2” 169 cm5’7”
- M
- 164 cm5’5” 176 cm5’9”
- L
- 170 cm5’7” 182 cm6’0”
| XXS | XS | S | M | L | ||
|---|---|---|---|---|---|---|
| A | Sadelrørslængde (mm) (inch) | 44017,3 | 47018,5 | 50019,7 | 53020,9 | 56022 |
| B | Sadelrørsvinkel (degrees) | 75,0° | 75,0° | 74,5° | 74,0° | 73,5° |
| C | Overrørslængde (mm) (inch) | 49819,6 | 50820 | 52420,6 | 54021,3 | 55521,9 |
| D | Kronrørslængde (mm) (inch) | 1054,1 | 1204,7 | 1355,3 | 1556,1 | 1756,9 |
| E | Kronrøsvinkel (degrees) | 70,0° | 71,0° | 72,0° | 72,5° | 72,5° |
| F | Forgaffel fremspring (rake) (mm) (inch) | 491,9 | 491,9 | 491,9 | 491,9 | 491,9 |
| G | Sti (mm) (inch) | 732,9 | 662,6 | 602,4 | 572,2 | 572,2 |
| H | Akselafstand (mm) (inch) | 97038,2 | 97338,3 | 97738,5 | 98438,7 | 99639,2 |
| I | Kædestagslængde (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| J | Krankboks drop (mm) (inch) | 722,8 | 722,8 | 702,8 | 702,8 | 672,6 |
| K | Stack (mm) (inch) | 49919,6 | 51720,4 | 53220,9 | 55321,8 | 56922,4 |
| L | Reach (mm) (inch) | 36414,3 | 37014,6 | 37714,8 | 38215 | 38615,2 |
| M | Skridthøjde (mm) (inch) | 71928,3 | 73428,9 | 75229,6 | 76830,2 | 78630,9 |
| N | Styrbredde (mm) (inch) | 36014,2 | 36014,2 | 38015 | 40015,7 | 42016,5 |
| O | Frempindslængde (mm) (inch) | 803,1 | 803,1 | 903,5 | 1003,9 | 1104,3 |
| P | Pedalarmslængde (mm) (inch) | 1656,5 | 1656,5 | 1706,7 | 1706,7 | 172,56,8 |
| Q | Hjulstørrelse | 700C | 700C | 700C | 700C | 700C |
Alle de anførte specifikationer kan ændres uden varsel.
