Professional grade raw carbon and cutting-edge engineering shave off 433 grams compared to the previous generation Avow, all while maintaining stiffness and power transfer.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

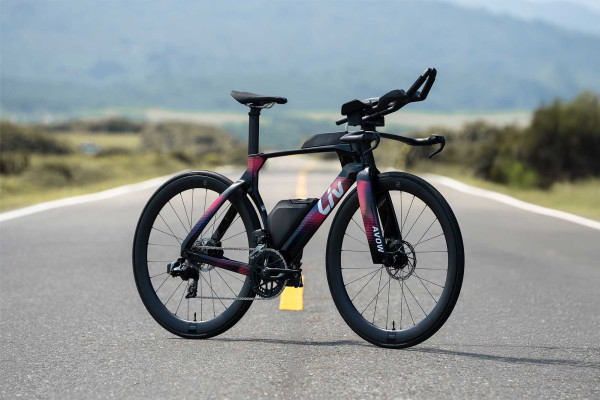

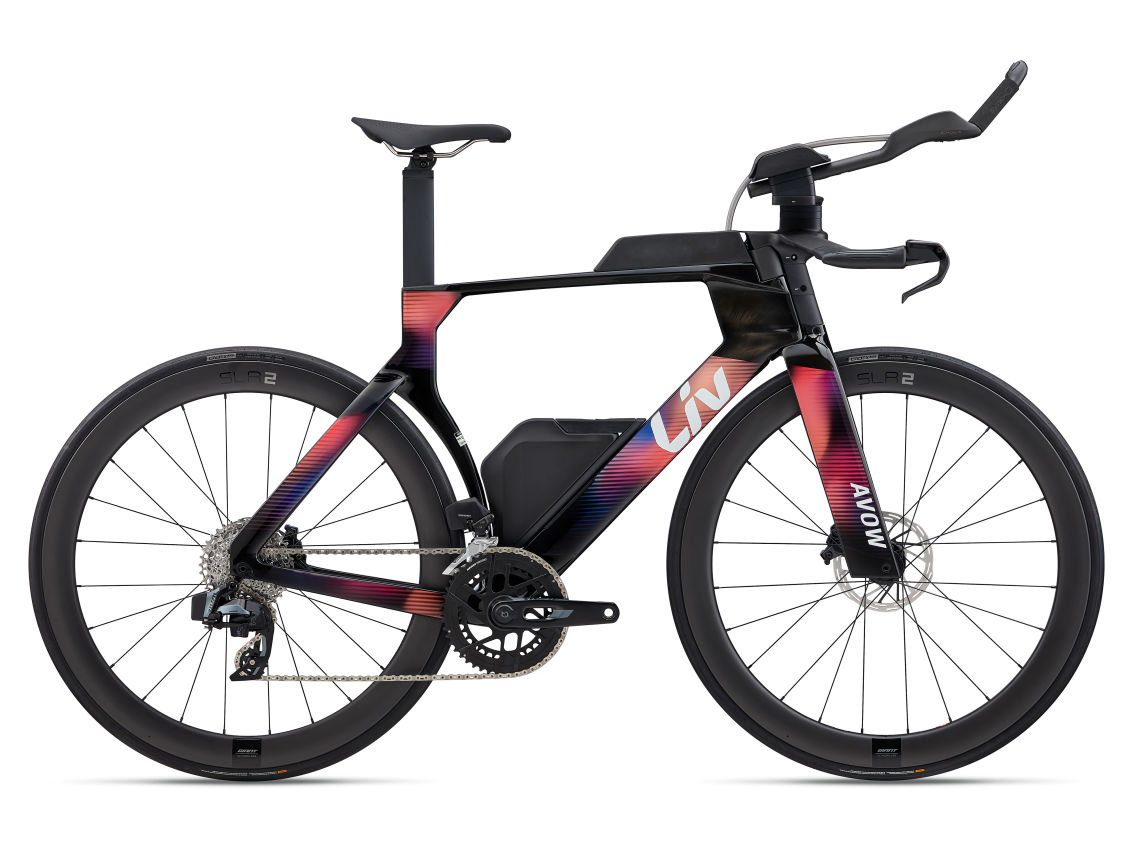

Avow Advanced SL
203 999 Kč
Hlavní přednosti
YOUR FASTEST BIKE SPLIT
Everything about the Advanced SL carbon frameset has been optimized to shave seconds. The sleek, integrated hydration reservoir and bento box put fuel at your fingertips. And the new frameset is lighter by 433g, without compromising stiffness or aerodynamics, translating to 10% greater overall efficiency—which means energy left over for the run.
YOUR OPTIMIZED FIT
Dial in every aspect, with four seatpost offset positions (within a 51mm range) and 24x more armrest positions, varying stack, reach, angle and width, using a simple, travel-friendly two-bolt mechanism. Make it your bike for the course—more comfort for Ironman or more streamlined for TT.
YOU’RE IN CONTROL
Integrated disc brakes deliver greater stopping power without compromise to aero efficiency, thanks to fork shaping that shields the brakes from the wind. Enhanced seatpost and armrest compliance help you settle into a comfortable, confident position for 20k or 180k.
Přednosti
1
ADVANCED SL COMPOSITE
2
AEROSYSTEM SHAPING TECHNOLOGY
Using CFD and dynamic wind-tunnel testing, engineers optimize every tube shape to maximize aerodynamic performance.
3
AERODRIVE TRI COMPOSITE BASE BAR
Avow’s proprietary, triathlon-specific 5:1 airfoil base bar delivers the ultimate in aerodynamic performance and a wider range of adjustment compared to the previous generation.
4
ADJUSTABLE ARMRESTS

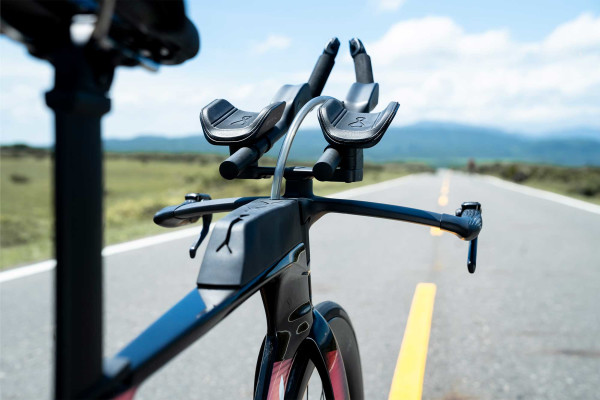

The redesigned armrests offer a perfect fit and improved performance, with 24x more options for stack, reach, angle, and width. Easily fine-tune your setup with a two-bolt mechanism, ensuring a custom fit that matches your body and riding position. For added convenience, the cockpit is travel-friendly—just remove the two screws to detach the clamp bridge, making packing for your next race effortless.
5
POWERCORE

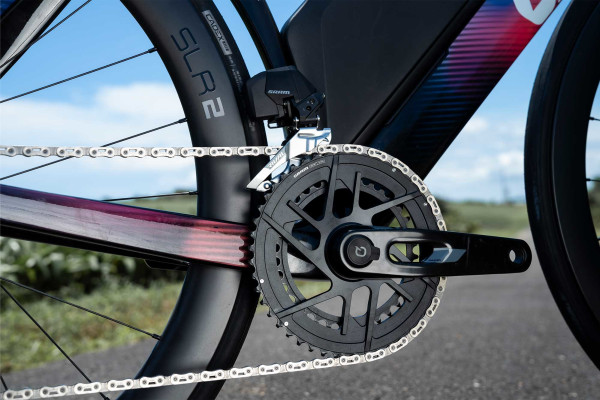

The oversized bottom bracket area and fully integrated 86mm design provide exceptional stiffness and power transfer, while the asymmetric chainstays add extra stability, ensuring a smooth, responsive ride every time.
6
AEROVAULT SYSTEM
The integrated fueling system includes a hydration reservoir (700ml for XXS, XS, S; 850ml for M) with an easy-access straw positioned near the armrests and a top tube bento box that holds up to six 32g gel packets. The hydration reservoir is easy to clean, thanks to the included metal threading tool, making maintenance quick and convenient. CFD analysis and wind-tunnel testing confirm that this system maximizes aerodynamic performance.
7
INTERNAL CABLE ROUTING PORTS
The internal cable routing ports are positioned at the head tube and rear dropout for easy electronic shifting setup, keeping cables hidden for a cleaner look and enhanced aerodynamics.
8
DISC-BRAKE INTEGRATION
The frame and fork are engineered for disc brakes, using aero shaping to reduce drag and provide confident, reliable braking. This ensures better control in corners and consistent performance in all weather conditions.
9
COMPUTER MOUNT
Track your performance with ease using the provided computer mount, which includes two interface options for seamless integration with your Garmin, Wahoo, Hammerhead, or Dash device. Designed for a sleek and race-ready setup, the mount attaches directly to the extension bars after removing the rubber covers, ensuring yourt data is always within reach.
Výběr velikosti a geometrie
Uvedené hodnoty jsou pouze orientační. Doporučujeme výběr velikosti konzultovat u vašeho autorizovaného prodejce Giant / Liv a velikost rámu si před nákupem kola vyzkoušet.
- XXS
- 151 cm4’11”
161 cm5’3”
- XS
- 159 cm5’3” 169 cm5’7”
- S
- 166 cm5’5” 176 cm5’9”
- M
- 173 cm5’8” 182 cm6’0”
| XXS | XS | S | M | ||
|---|---|---|---|---|---|
| A | Délka sedlové trubky (mm) (inch) | 44017,3 | 46518,3 | 49519,5 | 52520,7 |
| B | Úhel sedlové trubky (degrees) | 77,0° | 77,0° | 77,0° | 77,0° |
| C | Délka horní trubky (mm) (inch) | 49319,4 | 51020,1 | 53020,9 | 55421,8 |
| D | Délka hlavové trubky (mm) (inch) | 652,6 | 853,3 | 1054,1 | 1254,9 |
| E | Úhel hlavové trubky (degrees) | 71,0° | 72,0° | 73,0° | 73,0° |
| F | Offset vidlice (mm) (inch) | 401,6 | 401,6 | 401,6 | 401,6 |
| G | Trail (mm) (inch) | 793,1 | 692,7 | 632,5 | 632,5 |
| H | Rozvor (mm) (inch) | 96938,1 | 97438,3 | 98838,9 | 101339,9 |
| I | Délka řetězové vzpěry (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| J | Bottom Bracket Drop (mm) (inch) | 702,8 | 702,8 | 702,8 | 702,8 |
| K | Stack (mm) (inch) | 46718,4 | 49019,3 | 51320,2 | 53220,9 |
| L | Reach (mm) (inch) | 38715,2 | 39715,6 | 41216,2 | 43217 |
| M | Výška rámu od země (mm) (inch) | 73328,9 | 75829,8 | 78630,9 | 81432 |
| N | Šířka řídítek (mm) (inch) | 40015,7 | 40015,7 | 40015,7 | 40015,7 |
| Q | Rozměr kol | 700C | 700C | 700C | 700C |
| R | Arm Pad Stack | (TRI) 604-686 | (TT) 556-640 | (TRI) 629-709 | (TT) 582-662 | (TRI) 653-733 | (TT) 605-685 | (TRI) 672-752 | (TT) 624-704 |
| S | Arm Pad Reach | (TRI) 309-383 | (TT) 326-400 | (TRI) 323-398 | (TT) 339-414 | (TRI) 340-415 | (TT) 355-430 | (TRI) 360-435 | (TT) 375-450 |
Děláme vše pro to, aby veškeré údaje na tomto webu byly správné a aktuální. Přesto si ale musíme vyhradit právo na případné změny specifikací, barevného provedení a cen, a to bez předchozího upozornění. Děkujeme za pochopení.
