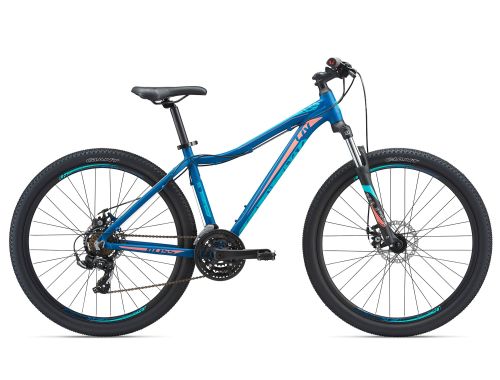

Bliss 1


What is my size?


  • AluxX-grade aluminium frame
  • SR Suntour XCT 27.5" HLO fork
  • Shimano M191/M360 24-speed drivetrain
  • Tektro TKB172 Disc brakes
  • Giant GX28 Wheelset
  • Color: teal/purple

Download PDF

FrameALUXX-Grade Butted Aluminum
ForkSR Suntour XCT 27.5" HLO, 100mm Travel,
HandlebarLow Rise, 31.8mm
StemGiant Sport Alloy, 15 degree rise
SeatpostGiant Connect 30.9x350mm
SaddleLiv Connect (Upright)
PedalsOne-piece black PP, 9/16"
ShiftersShimano EF51, 3x8 speed
Front DerailleurShimano M191
Rear DerailleurShimano M360, 8-speed
BrakesTektro TKB172, 160mm rotors
Brake LeversShimano EF51
CassetteShimano HG31 11-34, 8s
ChainKMC Z8
CranksetSR XCE-T318 28/38/48
Bottom BracketSR Suntour Cartridge BB
RimsGX28 27.5X32H
HubsJoytech disc hubs, alloy hub, double-sealed, cassette style, loose ball bearing, 32H
SpokesStainless 14G
TiresGiant Sport, Custom Kenda K1153 27.5X2.1
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

XS   145 cm4’9” 160 cm5’3”
S   154 cm5’1” 168 cm5’6”
M   164 cm5’5” 177 cm5’10”
BSeat Tube Angle (degrees)74,0°73,5°73,0°
CTop Tube Length (mm) (inch)54521,557022,459523,4
DHead Tube Length (mm) (inch)953,71104,31355,3
EHead Tube Angle (degrees)69,5°69,5°69,4°
HWheelbase (mm) (inch)105641,6107642,4109743,2
IChain Stay Length (mm) (inch)43517,143517,143517,1
KStack (mm) (inch)58823,160223,762524,6
LReach (mm) (inch)37714,839215,440415,9
MStand Over Height (mm) (inch)6352567526,671128
PCrank Length (mm) (inch)1706,71706,71756,9

All specifications listed are subject to change without notice.
