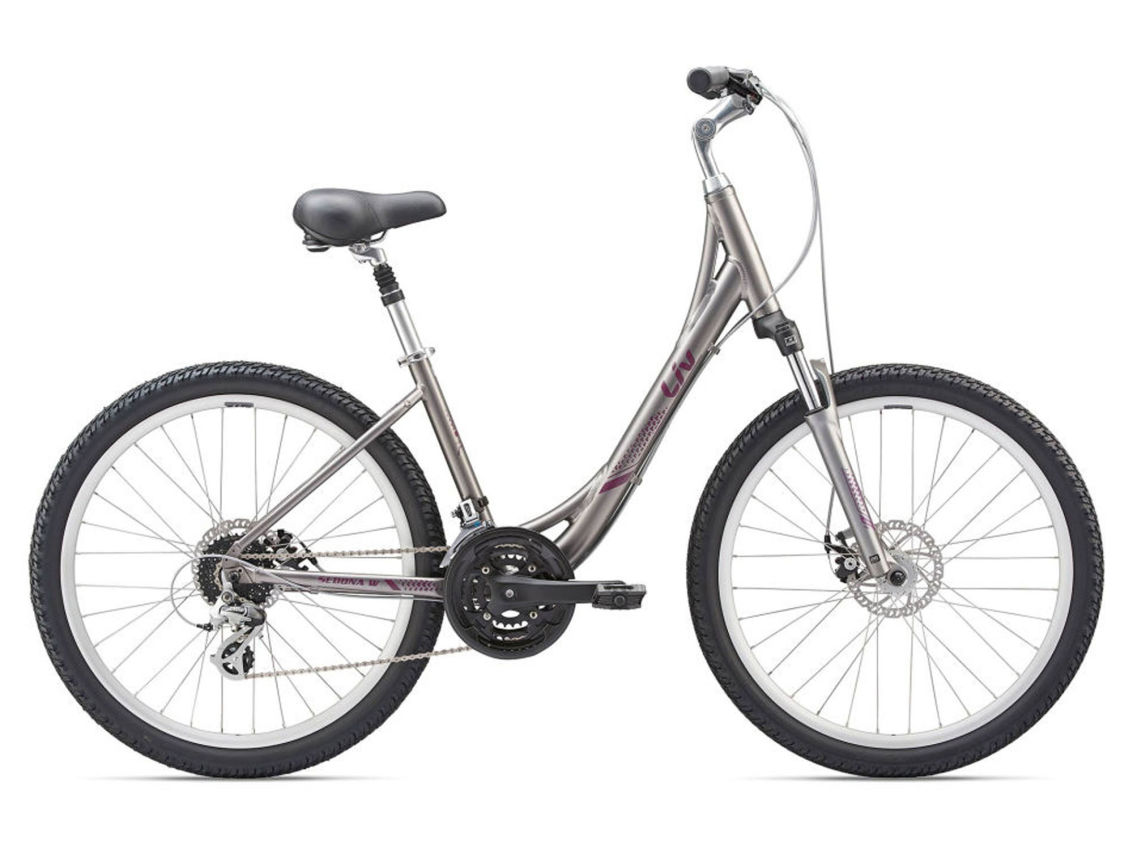

Sedona DX W



{{partnumber.supplementaryGroup.introText}} {{partnumber.supplementaryGroup.urlLabel}}




Ships from warehouse and will be available for pick-up at any Liv retailer in about 10-12 business days Shipping costs: {{partnumber.shippingCosts}}

Expected in our warehouse around {{partnumber.stock.DateExpectedToFormat}} and shipped to any Liv retailer in about 1 week{{partnumber.stock.DateExpectedToWeeks}}-{{partnumber.stock.DateExpectedToWeeks + 1}} weeks

The product you have selected is currently out of stock in our warehouse but there may be a store in your area that has the product in stock. Please contact your local store for availability.

In store now and available for pick up in 2 - 3 business days at these Liv retailers (distance from {{ dealercity }}): Or pick it up in 2 - 3 business days at a Liv retailer that we know to have it in store now near {{ dealercity }}:

  • {{ item.Name | limitTo : 22 }}{{item.Name.length > 22 ? '..' : ''}}


    {{ item.DistanceToFormat }} KM | {{ item.City }} {{ item.State }}
    Show details Hide details

    {{item.Zipcode}} {{item.City}}
    Phone: {{item.Phone}}
    {{ item.Email }}
  • No stores found
Show more Find more stores

Please note: {{partnumber.shippingcosts}} shipping fee applies when the bike is shipped from Giant's warehouse

Notify me when available at any Giant retailer

If you are willing to take a road trip, the bike is available in 2-3 days at these Liv retailers more than 25 miles from {{ dealercity }}. Order online, pick up these retailers and save {{partnumber.shippingCosts}}



SizesXS, S, M
ColoursMetal Gray
FrameALUXX-Grade Aluminum
ForkSR Suntour XCT, 80mm
Handlebaralloy, high rise
Stemalloy adjustable
SaddleLiv Comfort
Pedalsnylon/anti-slip platform
ShiftersShimano M315, *note: early production bikes may be substituted with microSHIFT Mezzo TS39
Front DerailleurMicroShift FD-T382
Rear DerailleurShimano Altus
BrakesTektro mechanical disc, 160mm
Brake Leversalloy
CassetteTektro M276 hydraulic, 160mm
ChainKMC Z83
Cranksetforged alloy, 28/44
Bottom Bracketsealed cartridge
RimsGiant GX wheelset
Hubsalloy, 36h
TiresKenda K892, 26x2.3, multi surface
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All prices and specifications are subject to change without notice.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram
  One Size
Seat Tube Length (mm) (inch)42016.5
Seat Tube Angle (degrees)70.0°
Top Tube Length (mm) (inch)63425
Head Tube Length (mm) (inch)1666.5
Head Tube Angle (degrees)70.4°
Fork Rake (mm) (inch)652.6
Trail (mm) (inch)52.42
Wheelbase (mm) (inch)115045.3
Chain Stay Length (mm) (inch)47418.7
Bottom Bracket Drop (mm) (inch)632.5
Stack (mm) (inch)58423
Reach (mm) (inch)41916.5
Stand Over Height (mm) (inch)43417.1
Handlebar Width (mm) (inch)69027.2
Stem Length (mm) (inch)803.1
Crank Length (mm) (inch)1706.7
Wheel Size 26"


All prices and specifications are subject to change without notice.
