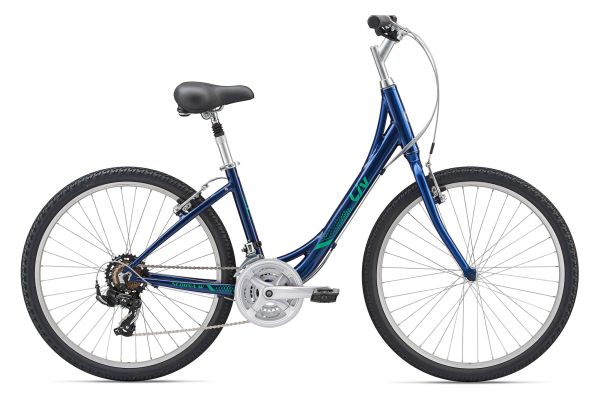

Sedona DX W

$729

Item # {{ partnumber.code }}

{{partnumber.supplementaryGroup.introText}} {{partnumber.supplementaryGroup.urlLabel}}

{{partnumbersByColor()[0].description}}{{partnumbersByColor()[0].globalFrameSize}}

{{partnumbersByColor()[0].priceToFormat}}

{{partnumbersByColor()[0].stock.Label}}

Ships from warehouse and will be available for pick-up at any Liv retailer in about 10-12 business days Shipping costs: {{partnumber.shippingCosts}}

Expected in our warehouse around {{partnumber.stock.DateExpectedToFormat}} and shipped to any Liv retailer in about 1 week{{partnumber.stock.DateExpectedToWeeks}}-{{partnumber.stock.DateExpectedToWeeks + 1}} weeks

The product you have selected is currently out of stock in our warehouse.

In store now and available for pick up at the below Liv retailers. Pick up times may vary from days to weeks depending on the Retailer's workload.
Retailers cannot ship/transfer product, it must be picked up at the locations listed below.
(distance from {{ dealercity }}):
Or pick it up at a Liv retailer that we know to have it in store now near {{ dealercity }}. Pick up times may vary depending on the Retailer's workload.

  • {{ item.Name | limitTo : 22 }}{{item.Name.length > 22 ? '..' : ''}}

    {{item.Name}}

    {{ item.DistanceToFormat }} KM | {{ item.City }} {{ item.State }}
    Show details Hide details

    {{item.Street}}
    {{item.Zipcode}} {{item.City}}
    Phone: {{item.Phone}}
    {{ item.Email }}
  • No stores found
Show more Find more stores

Please note: {{partnumber.shippingcosts}} shipping fee applies when the bike is shipped from Giant's warehouse

Notify me when available at any Giant retailer

If you are willing to take a road trip, the bike is available in 2-3 days at these Liv retailers more than 25 kilometers from {{ dealercity }}. Pick up at these retailers and save the shipping. {{partnumber.shippingCosts}}

Please Note: With the devastating floods and the damaged caused to BC's highways we are currently unable to ship items from our West warehouse anywhere East of Abbotsford and North of Whistler. We can still ship within the Lower Mainland. Our East warehouse also remains operational and may be able to fulfill orders depending on stock levels.

Share

Specs
  • Sizes
    XS, S, M
  • Colours
    Metal Gray
  • Frame
    ALUXX-Grade Aluminum
  • Fork
    SR Suntour XCT, 80mm
  • Shock
    N/A
  • Handlebar
    alloy, high rise
  • Stem
    alloy adjustable
  • Seatpost
    suspension
  • Saddle
    Liv Comfort
  • Pedals
    nylon/anti-slip platform
  • Shifters
    Shimano M315, *note: early production bikes may be substituted with microSHIFT Mezzo TS39
  • Front Derailleur
    MicroShift FD-T382
  • Rear Derailleur
    Shimano Altus
  • Brakes
    Tektro mechanical disc, 160mm
  • Brake Levers
    alloy
  • Cassette
    Tektro M276 hydraulic, 160mm
  • Chain
    KMC Z83
  • Crankset
    forged alloy, 28/44
  • Bottom Bracket
    sealed cartridge
  • Rims
    Giant GX wheelset
  • Hubs
    alloy, 36h
  • Spokes
    stainless
  • Tires
    Kenda K892, 26x2.3, multi surface
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All prices and specifications are subject to change without notice.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  One Size
ASeat Tube Length (mm) (inch)42016.5
BSeat Tube Angle (degrees)70.0°
CTop Tube Length (mm) (inch)63425
DHead Tube Length (mm) (inch)1666.5
EHead Tube Angle (degrees)70.4°
FFork Rake (mm) (inch)652.6
GTrail (mm) (inch)52.42
HWheelbase (mm) (inch)115045.3
IChain Stay Length (mm) (inch)47418.7
JBottom Bracket Drop (mm) (inch)632.5
KStack (mm) (inch)58423
LReach (mm) (inch)41916.5
MStand Over Height (mm) (inch)43417.1
NHandlebar Width (mm) (inch)69027.2
OStem Length (mm) (inch)803.1
PCrank Length (mm) (inch)1706.7
QWheel Size 26"
