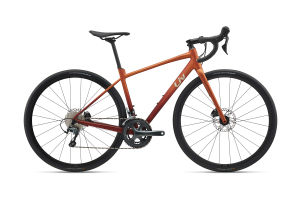

Avail AR 2

$2,199 RRP

Similar Products

Best For: Endurance

Avail AR 1

$2,699 RRP

Best For: Race

Avail AR 3

$1,799 RRP

Best For: Endurance

Avail AR 4

$1,599 RRP

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.

Key Performance Factors

Comfort

The lightweight ALUXX frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control

The 32c tyres provide stability both on-road and off-road, and select models offer compatibility with tubeless tyres up to 38c. With the OverDrive steerer and powerful disc brakes, you'll enjoy precise handling and reliable stopping power for confident riding.

Carrying Capacity

Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.

Techs & Features

ALUXX Aluminium Technology
Compact Road Design
D-Fuse Seatpost
OverDrive
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      153 cm5’0”  to 162 cm5’4”
  • S
      158 cm5’2”  to 169 cm5’7”
  • M
      165 cm5’5”  to 174 cm5’9”
  • L
      171 cm5’7”  to 182 cm6’0”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSML
ASeat Tube Length (mm) (inch)41016.144517.548018.951520.3
BSeat Tube Angle (degrees)74.5°74.5°74.0°74.0°
CTop Tube Length (mm) (inch)51520.352520.754021.355521.9
DHead Tube Length (mm) (inch)1184.61385.41586.21787
EHead Tube Angle (degrees)70.5°71.5°72.0°72.0°
FFork Rake (mm) (inch)532.1532.1532.1532.1
GTrail (mm) (inch)69.52.762.92.459.62.359.62.3
HWheelbase (mm) (inch)99939.3100139.4100639.6102240.2
IChain Stay Length (mm) (inch)42216.642216.642216.642216.6
JBottom Bracket Drop (mm) (inch)803.1803.1803.1803.1
KStack (mm) (inch)53821.256122.158222.960123.7
LReach (mm) (inch)36614.436914.537314.738315.1
MStand Over Height (mm) (inch)68126.870927.97362976630.2
OStem Length (mm) (inch)702.8803.1903.5903.5
PCrank Length (mm) (inch)1656.51706.71706.7172.56.8
QWheel Size 700C700C700C700C
Specs
  • Sizes
    XS, S, M, L
  • Colours
    Bay Leaf
  • Frame
    ALUXX-Grade aluminium, 12x142mm thru-axle, disc
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
  • Shock
    N/A
  • Handlebar
    Liv Connect, 31.8mm XS:38cm, S:40cm, M:40cm, L:42cm
  • Grips
    Liv All Condition
  • Stem
    Giant Sport XS:70mm, S:80mm, M:90mm, L:90
  • Seatpost
    Giant D-Fuse, composite
  • Saddle
    Liv Approach
  • Pedals
    N/A
  • Shifters
    Shimano Tiagra
  • Front Derailleur
    Shimano Tiagra
  • Rear Derailleur
    Shimano Tiagra GS
  • Brakes
    Tektro MD-C550 mechanical, Giant MPH Rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano Tiagra
  • Cassette
    Shimano Tiagra, 10-speed, 11x34
  • Chain
    KMC X10-1
  • Crankset
    Shimano Tiagra, 34/50 XS:165mm, S:170mm, M:170mm, L:172.5mm
  • Bottom Bracket
    Cartridge
  • Rims
    Giant S-R2 Disc wheelset
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Sapim
  • Tires
    Giant Gavia Fondo 2, 700x32c, tubeless
  • Extras
    Tubeless prepared, 38mm max tyre size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
